Eaton 9SX UPS 6000VA / 5000W Uninterruptible Power Supply

EATON 9SX6KIRT 5395 5395-RU4 5395GKX 00AK116 00AK123 9SX6KIRT Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$2,995.00

Voltage:110-240V Multi

Description

Eaton 9SX6KIRT UPS 6000VA / 5000W Uninterruptible Power Supply - Brand New

Eaton 9SX6KIRT UPS 6000VA / 5000W Uninterruptible Power Supply - Brand New

Performance and Efficiency

• Double conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

• With up to 94% efficiency in online double conversion mode the 9SX provides the highest efficiency level in its class to reduce energy & cooling costs.

• With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Availability and Flexibility

• The internal bypass allows service continuity in case of internal fault. Batteries are hot-swappable from the front panel without powering down critical systems.

• With its rack/tower versatile form factor the 9SX can be installed in any environment (rack kit provided as standard).

• Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%.

• More runtime can be added with up to 12 external hotswappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognised by the UPS.

Manageability

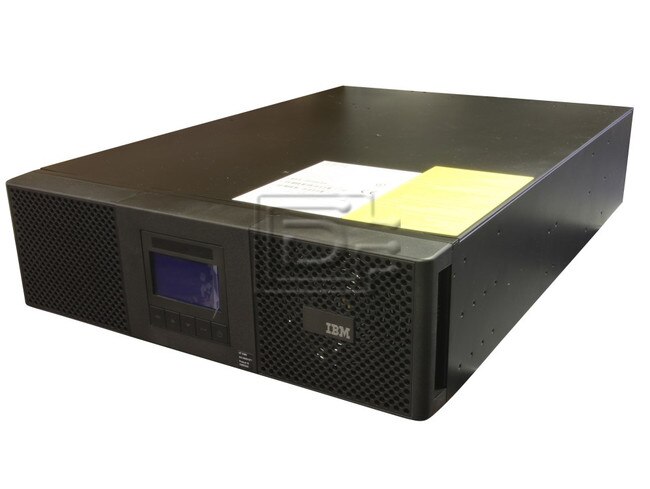

• The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen (in seven languages). LCD display position can be adjusted to offer the best viewable angle for tower and rack usage.

• The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software Suite.

• Load segment control enables prioritised shutdowns of non-essential equipment to maximise battery runtime for critical devices. It can also be used to remotely reboot locked-up equipment or to manage scheduled shutdowns and sequential start-ups.

• The 9SX offers Serial, USB and relay (4 dry contacts) connectivity, plus an extra slot for an optional card (Modbus, Network or Relay). 9SX also provides Remote Power off function. Eaton’s Intelligent Power® Software Suite is included with each UPS.

Alt MPN's: IBM 5395, 5395-RU4, 5395GKX, 00AK116, 00AK123

Compatibility:

This model of UPS is compatible with IBM 00AK0017.

Specifications

Technical Specifications
Output
Output Power Capacity200/208/220/230/240V +/- 1%
Max Configurable Power5000 VA / 6000W
Nominal Output Voltage200/208/220/230/240V
Output Frequency50/60 Hz autoselection

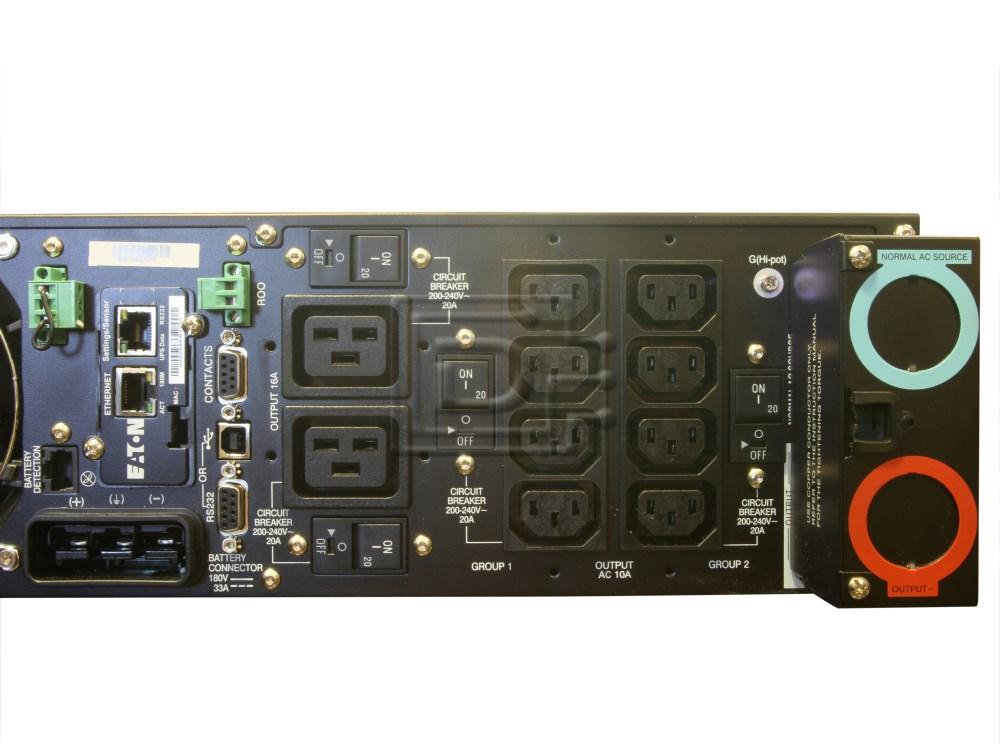

Output Connections(8) IEC 320 C13 / (2) IEC 320 C19
Input
Nominal Input Voltage200/208/220/230/240V
Input Frequency50/60 Hz autoselection
Input ConnectionsHardwired - (Manual describes terminal block layout)
Input voltage range for main operations176-276V without derating (up to 100-276V with derating)
Batteries & Runtime
Battery ManagementABM and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery CapabilityEBM with Rack Kit
Communications
User InterfaceMultilingual graphical LCD Display

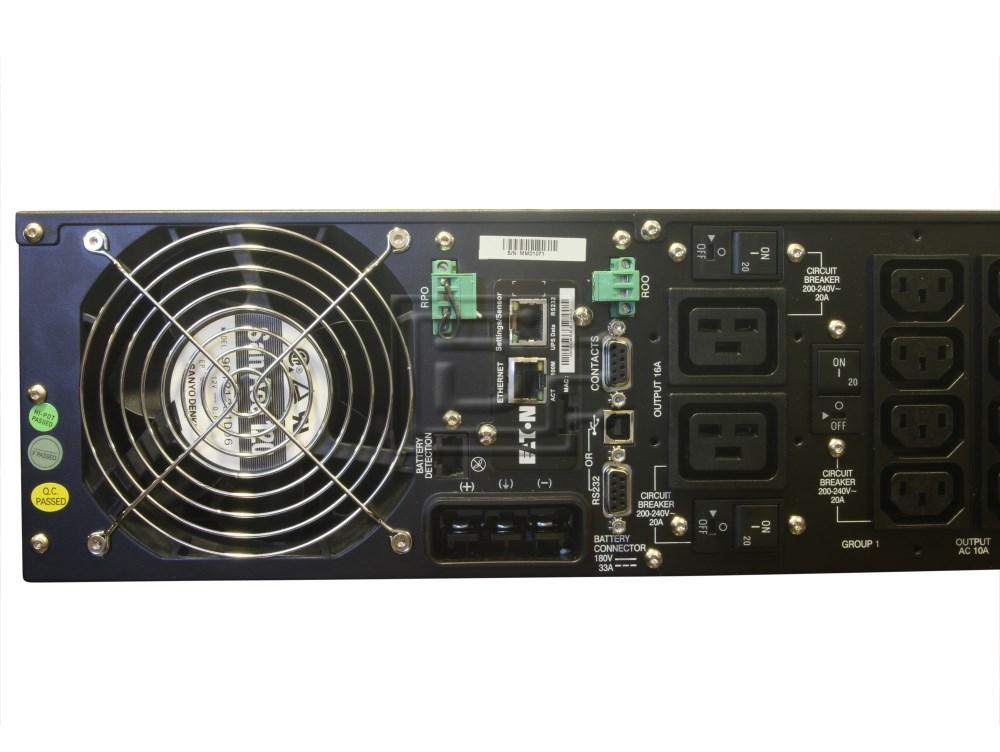

Communication Ports1 USB Port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off
Communications Slot1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Environments & Standards
Audible Noise<45dB
Operating Temperatures0 to 40 degrees celcius continuous
Safety MarkingsIEC/EN 62040-1, UL 1778, CSA 22.2
EMC MarkingsIEC/EN 62040-2, FCC Class A, IEC/EN 62040-3 (Performance), C-Tick
ApprovalsCE, CB report (TUV), UL

Alternate MPNs: 5395 5395-RU4 5395GKX 00AK116 00AK123

Weight: 106 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
