Emulex LP10000-E PCI-X to Fibre Channel Adapter

EMULEX Part #/MPN: LP10000-E

DiscTech Item #: EMC-LP10000-E-RF-OE

$28.00
  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • In Stock:1Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

Back
$28.00

Interface Types: Fibre Channel - External HSSDC DB9, PCI, PCI-X

Form Factor: Half-Height/Half-Length

Electrical Interface: FC-AL - 2Gbps

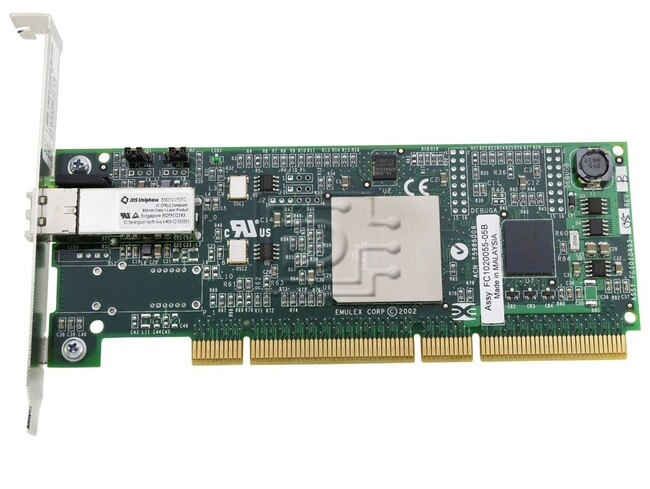

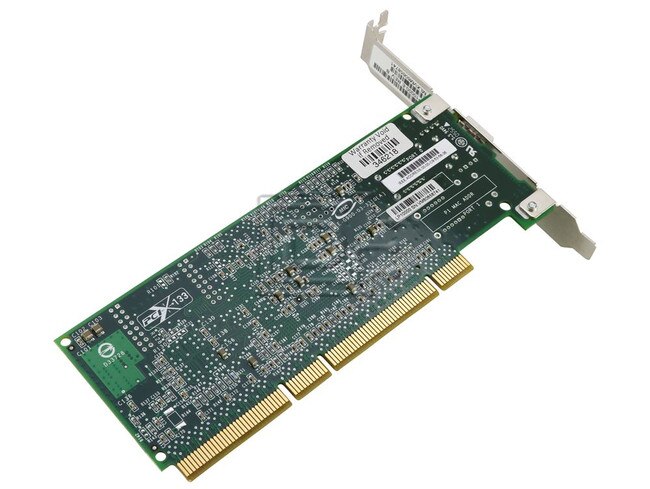

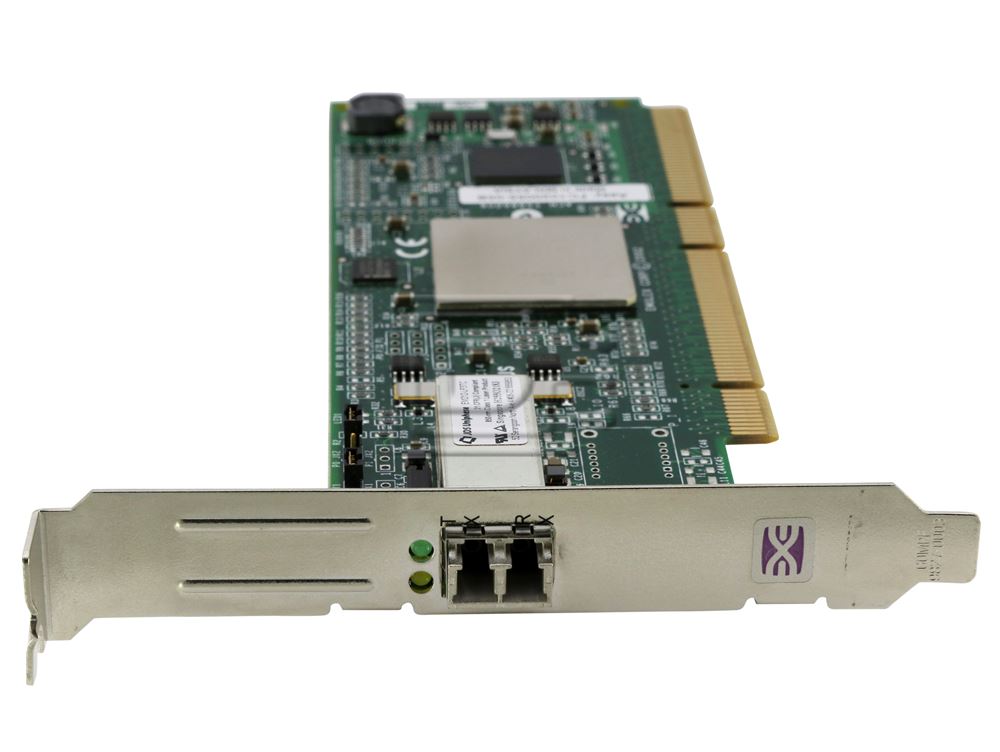

Emulex LP10000-E 64-bit 133MHz PCI-X to 2Gb Fibre Channel Adapter with multi-mode optic LC connector - Refurbished

Emulex LP10000-E 64-bit 133MHz PCI-X to 2Gb Fibre Channel Adapter with multi-mode optic LC connector - Refurbished

Overview:
Emulex EMC LightPulse LP10000-E 2Gb/s Single Port PCI-X 1.0 - HBA (EMC Firmware Preloaded) Single-channel Low-profile Features: Enterprise-class HBAs ideal for large or mixed OS SAN environments Single-channel PCI-X Fibre Channel HBA Full fabric support with automatic topology and speed adaptation cHBA API support (FC-MI) enables simplified SAN management Onboard hardware context cache for superior fabric support and high transaction performance Support for use of multiple concurrent protocols (SCSI & IP) FC service class 2 and 3 support FC-Tape (FCP-2) device support Simultaneous on card support for remote boot in x86, Itanium (BootBIOS and EFI), and OpenBoot in Unix environments End to end parity protection for high data integrity Large on card data buffer supports over 50km cabling at full 2Gb/s bandwidth

Major Features:

  • Enterprise–class HBAs ideal for large or mixed OS SAN environments
  • Single– and dual–channel PCI-X to 2Gb/s Fibre Channel models
  • Full fabric support with automatic topology and speed adaptation
  • cHBA API support (FC-MI) enables simplified SAN management
  • Onboard hardware context cache for superior fabric support and high transaction performance
  • Support for use of multiple concurrent protocols (SCSI & IP)
  • FC service class 2 and 3 support
  • FC-Tape (FCP-2) device support
  • Simultaneous on card support for remote boot in x86, Itanium (BootBIOS and EFI), and OpenBoot in Unix environments
  • End–to–end parity protection for high data integrity
  • Large on card data buffer supports over 50km cabling at full 2Gb/s bandwidth

Applications
The Emulex LP10000 family of host bus adapters offers highly integrated 2Gb/s Fibre Channel to PCI/PCI-X connectivity solutions for enterprise-class storage area networks. The LP10000 HBAs deliver exceptional performance through the use of "Thor", Emulex's sixth generation Fibre Channel controller. The Thor high performance controller is a dual channel device that combines ARM9™ microprocessors, 1Gig/2Gig SERDES, and an advanced Fibre Channel protocol engine into a single module. The LP10000 family includesboth single- and dual-channel HBAs, in a low-profile PCI card form factor that adapts to either standard height or low profile server slots.

The robust features of Emulex's LightPulse™ HBAs provide the flexibility and broad interoperability needed for complex, highly scalable heterogeneous SANs. The LP10000 builds upon the Emulex software architecture, which enables the independence of an operating systems device driver from the underlying HBA platform. This exclusive HBA architecture is the foundation for proven reductions in the total cost of ownership of a SAN. The Emulex LP10000 HBA architecture provides a platform that is fully software compatible with previous generations of Emulex's market leading HBAs. This enables customers to effortlessly migrate to Emulex's new HBAs, while also allowing for simplified integration into existing storage area networks.

Choosing to standardize on Emulex HBAs provides significant investment protection. The Emulex firmware-based architecture provides the capability to update prior generation HBAs to current standards while leveraging newly released management capabilities and performance features.

Emulex's recently introduced centralized HBA management suite, HBAnyware™ reduces both total cost of ownership and server downtime. This feature is available on the LP10000 as well as previous generations of Emulex HBAs. Complementing the Emulex software architecture, HBAnyware enables sophisticated management capabilities such as remote firmware upgrades from a single console anywhere in a SAN.

Emulex LP10000 HBAs feature specialized hardware, which yields superior performance in SANs and provides best in class server CPU offload. Emulexs HBA architecture delivers low latency and high throughput in switched fabric and arbitrated loop topologies, and in clustered environments.

Compatibility:

This controller card is compatible with any server that supports PCI-X 1.0a and PCI 2.3.

Host Bus Adapter
Model#LP10000-E
STANDARDSANSI Fibre Channel: FC-FS, FC-PH, FC-PI, FCP, FCP-2, FC-AL, FC-PLDA, FC-MI, FC-FLA, IETF IP over FC

PCI-X 1.0a and PCI 2.3

Fibre Channel Class 2 and 3

PHP hot plug—hot swap
ARCHITECTUREEmulex LightPulse® technology

2Gb/s or 1Gb/s FC Link

Quad Data Rate (QDR) SRAM Unified Data Buffer and Code Space memory
DRIVER SUPPORTWindows Server 2003
Windows 2000
Windows NT
Linux
NetWare
Solaris
HP-UX
OEM custom drivers
HARDWARE ENVIRONMENTS x86 and Intel® Itanium® processor family

SPARC and PowerPC PCI hardware platforms

3.3V signaling, 5V tolerant

32/64-bit 33/66MHz PCI

66/100/133MHz PCI-X
OPTICALdata rates: 1.0625/2.125Gb/s (auto–detected)

optics: short wave lasers with LC type connector

cable: 50/125µm, up to 300 meters at 2Gb/s
62.5/125µm, up to 150 meters at 2Gb/s

“smart” digital diagnostics interface supported
PHYSICAL DIMENSIONSshort low profile MD2 form factor card

167.64mm x 64.42mm (6.60” x 2.54”)

standard bracket (low profile available)
POWER & ENVIRONMENTAL REQUIREMENTSvolts: +3.3 and +5 VDC

power @ 66MHz (typical/max):
LP10000: 7.1/10.1 watts
LP10000DC: 9.1/12.9 watts

power @ 100/133MHz (typical/max):
LP10000: 7.5/10.6 watts
LP10000DC:10.1/14.4 watts

operating temperature:
0° to 45°C (32° to 113°F)

airflow required: 100 lf/m

storage temperature:
-40° to 70°C (-40° to 158°F)

relative humidity:
5% to 95% non–condensing
AGENCY APPROVALSClass 1 Laser Product per DHHS 21CFR (J) & EN60825

UL recognized to UL 1950

CUR recognized to CSA22.2, No. 950

TUV certified to EN60950

FCC rules, Part 15, Class A

ICES–003, Class A

EMC Directive 89/336/EEC (CE Mark)
EN55022, Class A
EN55024

Australian EMC Framework (C–Tick Mark)
AS/NZS 3548, Class A

VCCI, Class A

MIC (Korea), Class A

BSMI (Taiwan), Class A
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 2 lb
