FUJITSU Part #/MPN: MAJ3091MP
DiscTech Item #: FUJ-MAJ3091MP-BN-OE
- Brand New
- Warranty:1 Year DiscTech
- Low Stock:Call for ETA
Enterprise Grade
Capacity: 9GB
Speed: 10K RPM
Interface Types: SCSI 68pin HD68
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 4.7 / 5.2
Electrical Interface: SCSI LVD U160 - 160MBps 16-bit
On-Board Cache: 4MB

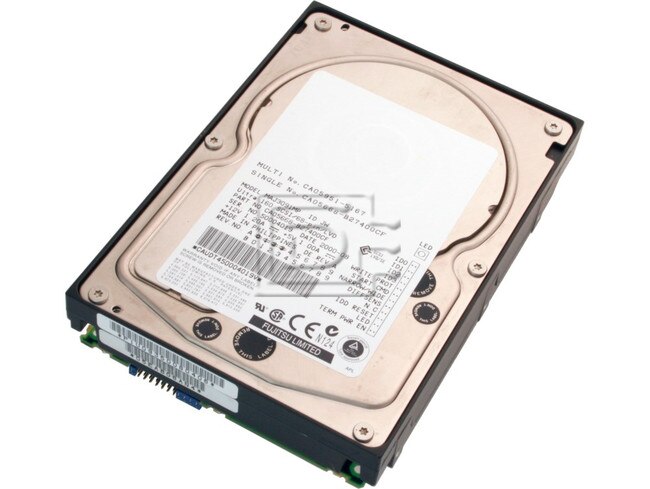

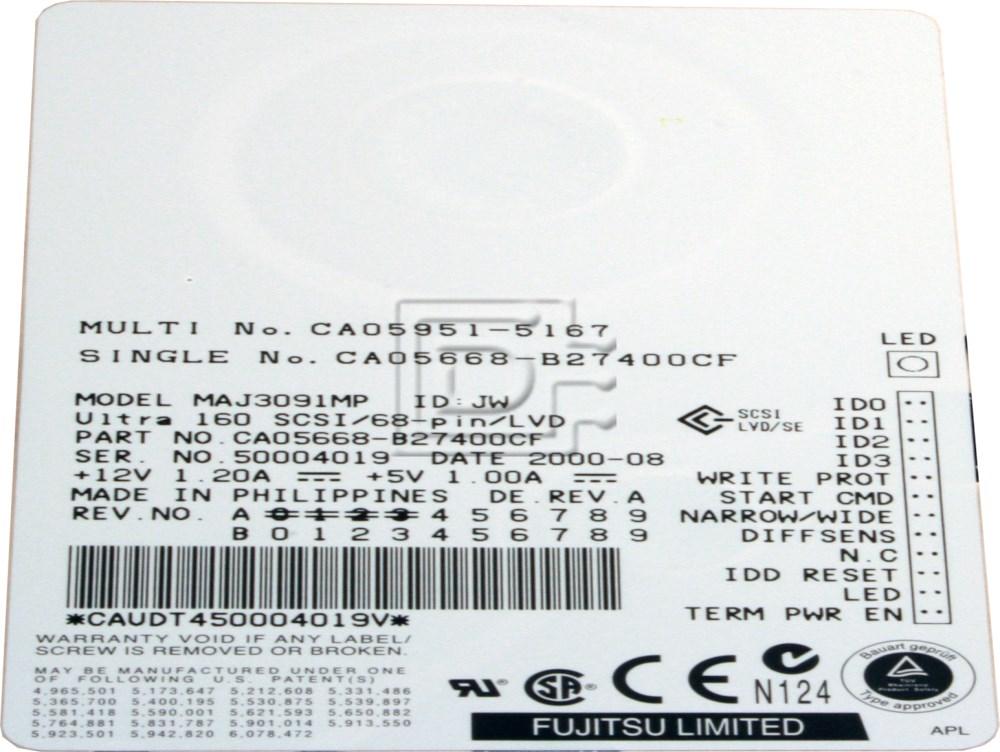

Fujitsu MAJ 9GB 10K U160 68pin SCSI Hard Drive MAJ3091MP - Brand New
Fujitsu's 9.1GB*1 and 18.2GB*1 are large-capacity, high-speed, low profile 3.5-inch disk drives. They incorporate Fujitsu designed GMR (giant magneto-resistive) heads and utilize EPR4ML read channel technology, allowing extremely high areal density of approximately 3.7Gbits/square inch. Rotational speed of MAJ3091/3182 is 10,025rpm, permitting fast average positioning time of 5.0ms for read and fast average latency time of 2.99ms. Adopting SDRAM, the drives provide a data transfer rate of 80MB per second, and the 4MB*2 buffer enables efficient data storage and quick access to information. Fujitsu also offers the industry's leading interface options, including Ultra2 SCSI (LVD) and FCAL (MAJ3091/3182). The enhanced S.M.A.R.T. detection system and ECC technology reflect Fujitsu's high reliability standards. With exceptional capacity, high rotational speed, and excellent reliability, the MAJ3091/3182 is well suited for networks, minicomputers, workstations, file servers, and multi-user applications that require superior performance and reliability.
Drive specification | MAJ3091MP |
Formatted Gbytes (512 bytes/sector) | 9.1 |
Bytes per sector | 512 |
Spindle speed (RPM) | 10,000 |
I/O data transfer rate (Mbytes/sec max) | 160 |
Cache buffer | 4 Mbytes |
Height (max) | 26.11 mm (1.028 inches) |
Width (max) | 101.85 mm (4.010 inches) |
Length (max) | 146.99 mm (5.787 inches) |
Weight (max) grams | 580 |
Power-on to ready (typical) | 30 sec |
Track-to-track seek time (msec typical) | 0.6 (read), .8 (write) |
Average seek, read (msec typical) | 4.7 |
Average seek, write (msec typical) | 5.2 |
Startup current (typical) 12V (peak) | 34 watts |
Seek power (typical) watts | 13 |
Operating power (typical) watts | 9.2 |
Idle mode (typical) watts | 8 |
Ambient temperature | 5° to 50°C (op.) –10° to 60°C (nonop.) |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
