Fujitsu MAP SCSI Hard Drive MAP3367NP

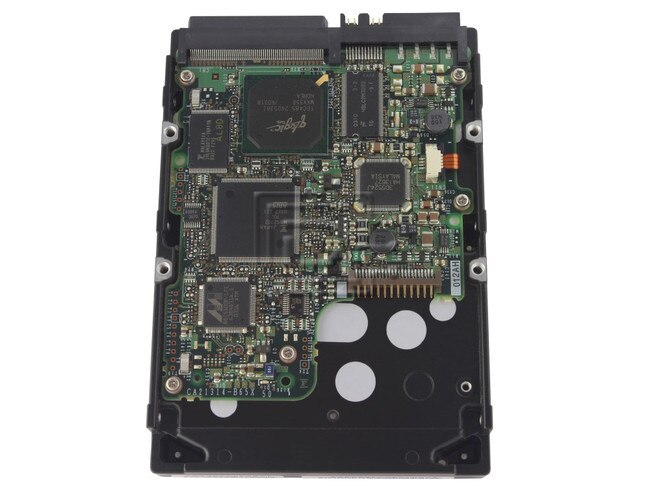

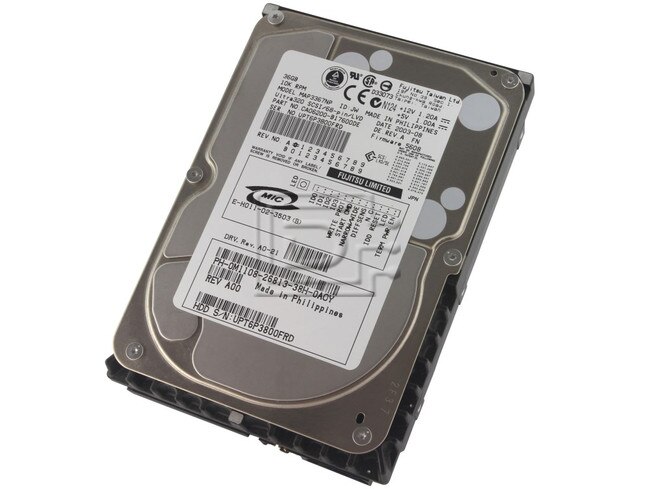

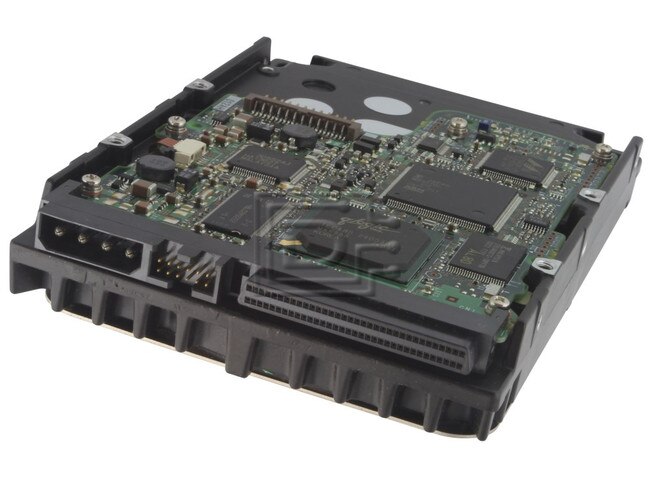

FUJITSU MAP3367NP SCSI Hard Drive Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$249.00

Capacity:36GB
Speed:10K RPM
Interface Types:SCSI 68pin HD68
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SCSI LVD U320 - 320MBps 16-bit
RAM:8MB

Description

Fujitsu MAP 36GB 10K U320 68pin SCSI Hard Drive MAP3367NP - Brand New OEM

Fujitsu’s new 10,000rpm MAP3xxx series includes models with optimum capacities of 36.7GB, 73.5GB and 147GB. The series is thus ideal for all mainstream SCSI applications, such as enterprise servers, PC servers, workstations, and RAID subsystems, where data integrity and reliability are essential.

These new drives offer new performance standards with a maximum internal transfer rate of 107.8MB/s and a fast average seek time of 4.5ms. The series are equipped with an 8MB, multi-segmented data buffer combined with a 32-bit-wide internal data path for faster data access. In addition, the series support Ultra320 SCSI (320MB/s) interface, which boasts new performance and reliability enhancing features, such as data packet protocol, quick arbitration and selection, and signal pre-compensation. The new series also support 2Gb FC-AL2 interface.

Concerning reliability, the new series features the industry’s highest MTBF rating 1,200,000 hours. It also incorporates many reliability enhanced features, such as alloy top cover for lower acoustics and an improved SMART detection system.

Specifications

Item

Specifications

MAP3147NC/NP
MAP3735NC/NP
MAP3367NC/NP
Formatted capacity/device(*1)
147.01 GB
73.50 GB
36.74 GB
Number of disks
4
3
1
Nubmer of heads
8
4
2
Number of cylinders(*2)
47,908
47,978
48,104
Formatted capcity/track (B)
272,896 to 479,232
Number of rotations min (rpm)
10,025 +_ 0.2%
Average latency time
2.99 msec
Seek Time (*3) (Read/Write)

Track to Track

Average

Full stroke

0.3 ms/0.5 ms

4.5 ms/5.0 ms

10.0 ms/11.0 ms

Start/stop time (*4)

Start time

Stop time

30 s typ. (60 s max.)
30 s typ.
Recording mode
32/34 MEEPRML
External dimensions

Height:

Width:

Depth:

25.4 mm

101.6mm

146.0 mm

Weight (max)
0.75 kg
Power consumption
9.6 W
Data transfer rate (*10)
Disk drive
64.1 to 107.86 MBs
SCSI
320 MB/s max.
Logical data block length (*11)
512 to 528 byte (Fixed length)
SCSI command specifications
SPI-4 (T10/1365D Rev.7), SAM-2(T10/1157D Rev .20),
SPC-2 (T10/1236D Rev. 20), SBC (T10/996D Rev. 8c
Data buffer
8 MB FIFO ring buffer
Acostic noise (Ready)
3.4 bels
Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
