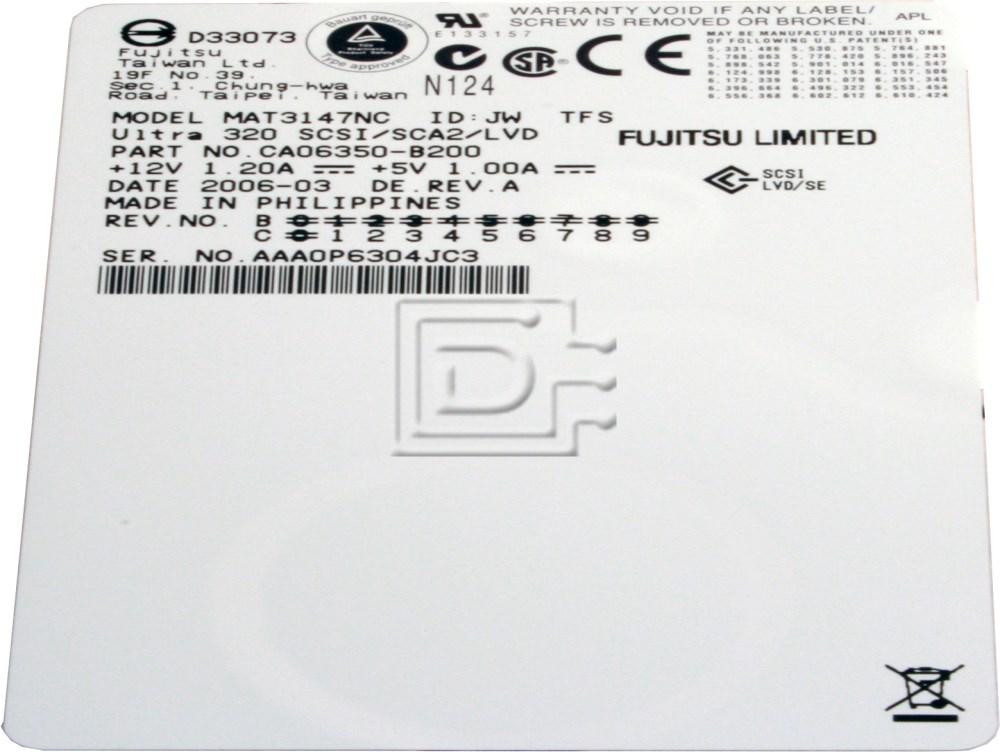

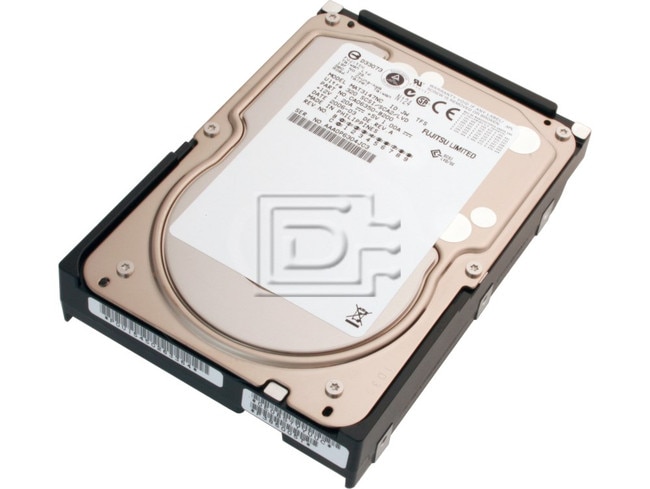

FUJITSU Part #/MPN: MAT3147NC
DiscTech Item #: FUJ-MAT3147NC-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 146GB
Speed: 10,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 132
Average Seek Time: 4.5 / 5.0
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB
With Fujitsu's innovative 4-platter hard disk drives, you can dramatically increase speed and efficiency, because fewer platters mean higher data rates.
Fujitsu's enterprise hard disk drives are also the industry's first 75Gb/square inch design to deliver 300GB of storage capacity in a 10K RPM 3.5-inch form factor. This makes them a perfect solution for today's demanding storage environments. Fujitsu's hard disk product variations and accelerated performance allow greater flexibility for system builders or VARs building rack-optimized or tower servers, disk systems, and RAID.
But these enterprise hard disk drives not only provide robust capacity - they're also powerful. Fujitsu has substantially increased the maximum internal data transfer rate on this series, reflecting a 22% improvement over the previous generation of drives. Additionally, these enterprise hard disk drives are equipped with 68Pin or 80Pin U320 SCSI interfaces and 2Gbps Fibre Channel.
Model | MAT3073 NC/NP/FC | MAT3147 NC/NP/FC | MAT3300 NC/NP/FC | ||
---|---|---|---|---|---|
Functional Specifications | |||||
Storage Capacity (formatted) | 73.5 GB | 147.0 GB | 300.0 GB | ||
Disks | 1 | 3 | 4 | ||
Heads (read/write) | 2 | 5 | 8 | ||
Bytes/Sector | 512 | ||||
Seek Time | Track to track | Read: 0.2 ms (typ) / Write: 0.4 ms (typ) | |||
Average | Read: 4.5 ms (typ) / Write: 5.0 ms (typ) | ||||
Full track | Read: 10.0 ms (typ) / Write: 11.0 ms (typ) | ||||
Average Latency | 2.99 ms | ||||
Rotational Speed | 10,025 RPM | ||||
Areal Density | 75 Gbits/sq. in. (max.) | ||||
Data Transfer Rate | To/from media | 132 MB/s (max.) | |||
To/from host | SCSI: 320 MB/s, FC: 2 Gb/s | ||||
Recording Code | 32/34 MEEPRML | ||||
Interface | SCA-2 (NC Series), 68Pin Wide (NP Series), FC-AL | ||||
Head Positioning Method | Rotary VCM | ||||
Start Time | 30 s (typ) | ||||
Stop Time | 30 s (typ) | ||||
Buffer Size | 8 MB | ||||
Physical Specifications | |||||
Power Requirements | Voltage | 5 V ± 5%, 12 V ± 5% | |||
Spin-up | 12V ± 5% @ 2.5A (peak) 3.0 A (peak < 100 us) 5V ± 5% @ 0.7A | ||||
Idle (typ.) | SCSI | 9.5 W | |||
FC | 10.5 W | ||||
Dimensions (HxWxD) | 25.4mm x 101.6mm x 146.0mm | ||||
Weight | 750g | ||||
Ambient Temperature | Operating | 5°C to 55°C (DE base 60°C max) | |||
Non-operating | -40°C to 70°C | ||||
Gradient | 15°C/H max | ||||
Relative Humidity | Operating | 5% to 95% (non-condensing) | |||
Non-operating | 5% to 95% (non-condensing) | ||||
Max. wet bulb | 29°C (operating) | ||||
Vibration | Operating | 0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz) | |||
Non-operating | 3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz) | ||||
Shock | Operating | 65 G max. (2 ms) | |||
Non-operating | 225 G max. (2 ms) | ||||
Altitude (operation) | Operating | 3,048 m (max.) | |||
Non-operating | 12,192 m (max.) | ||||
Acoustics Noise (idle sound power) (typ.) | 3.4 bels (ready) | ||||
Reliability Specifications | |||||
MTBF | 1,200,000 hours | ||||
Error Rates | Seek errors | 10 per 108 seeks | |||
Unrecoverable errors | 1 per 1015 bits read |
Click here to view the manufacturer's item description/brochure
