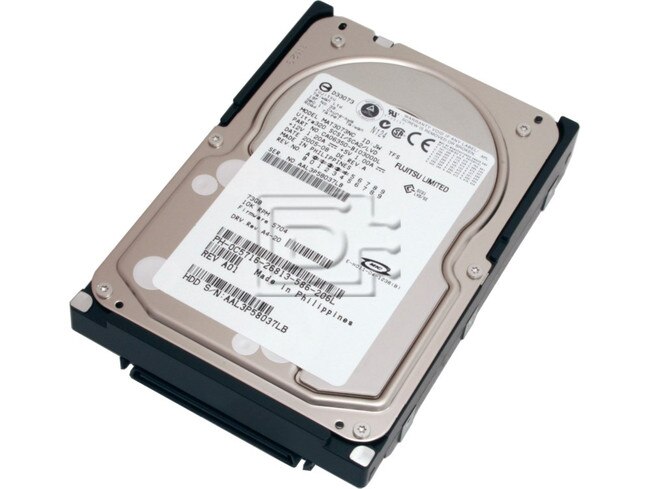

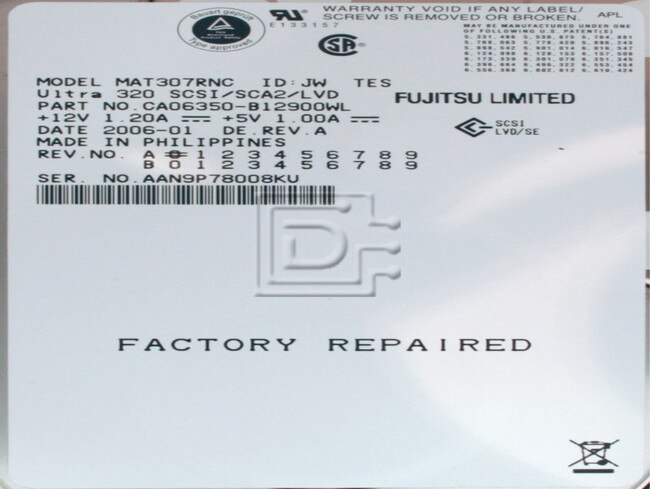

FUJITSU Part #/MPN: MAT3073NC
DiscTech Item #: FUJ-MAT3073NC-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 73GB
Speed: 10,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 4.5 / 5.0
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB
* Large capacity: Massive capacity has been achieved through the development of head, media, signal processing technology, servo technology*1 as an element technology allowing up to to 11Gb/cm2 (75Gb/in 2) high density and up to 75GB*2 per disk, 300GB*2 per drive (4 disks) high capacity.
* High Performance: Read Ahead Cache *3 and Write Reordering Cache *4 enable the drives to execute read and write operation in high speed.
* High Reliability: On the fly ECC (Error Correction Code) and S.M.A.R.T *5 function enable the drives to improve the data reliability.
* Silence: FDB spindle motor is incorporated for silent operation
| MAT3073NC/NP | MAT3147NC/NP | MAT3300NC/NP | ||
|---|---|---|---|---|
| Storage Capacity (Formatted) *1 *2 | 73.5GB | 147GB | 300GB | |
| Disks | 1 | 3 | 4 | |
| Heads | 2 | 5 | 8 | |
| Rotational speed | 10,025 min-1 {10,025 rpm} | |||
| Average Latency Time | 2.99 ms (typical) | |||
| Seek time (typical) | Minimum | Read 0.2 ms / Write 0.4 ms | ||
| Average | Read 4.5 ms / Write 5.0 ms | |||
| Maximum | Read 10 ms / Write 11 ms | |||
| Dimensions (W x D x H) | 101.6 mm x 146.0 mm x 25.4 mm | |||
| Weight | 0.75 kg | |||
| Interface | SCSI SCA-2 (NC model) / 68-pin (NP model) | |||
| Data Transfer Rate | 320MB/s maximum (Ultra 320) | |||
| Buffer size *3 | 8MB | |||
Note:
*1: Fujitsu defines 1 gigabyte (GB) as 1,000,000,000 bytes for Hard Disk Drives' storage capacity size.
*2: The formatted capacity is an estimate for 512 bytes per sector.
*3: Fujitsu defines 1 megabyte (MB) as 1,048,576 bytes for Hard Disk Drives' cache size.
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
