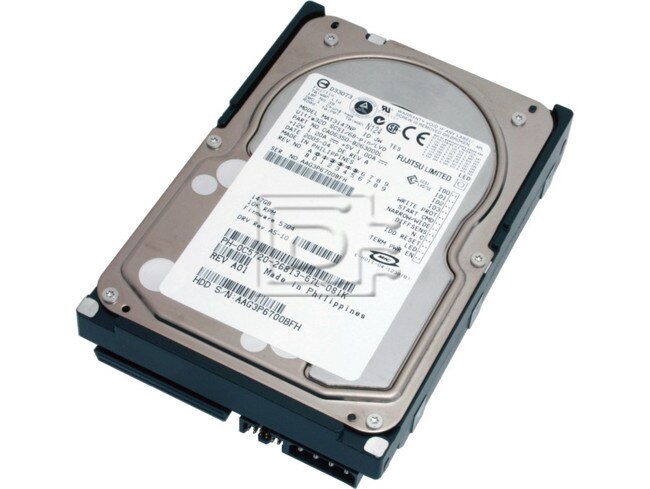

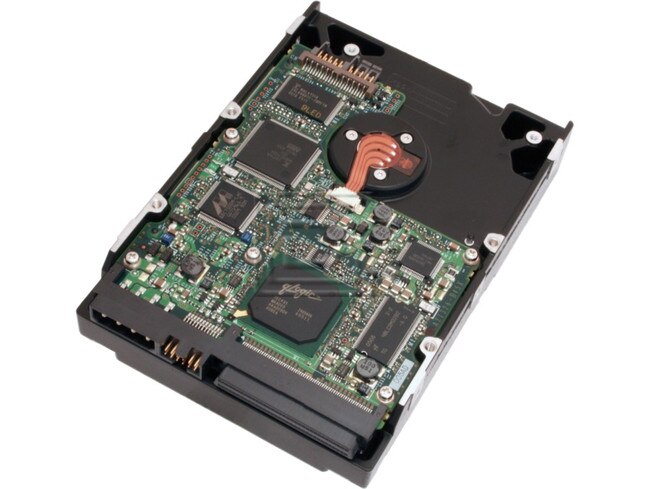

Fujitsu MAT3147NP 147GB 10K U320 SCSI Hard Drive
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 146GB |
| Speed: | 10K RPM |
| Interface Types: | SCSI 68pin HD68 |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SCSI LVD U320 - 320MBps 16-bit |
| RAM: | 8MB |
Description
Specifications
| Model | MAT3073 NC/NP/FC | MAT3147 NC/NP/FC | MAT3300 NC/NP/FC | ||
|---|---|---|---|---|---|
| Functional Specifications | |||||
| Storage Capacity (formatted) | 73.5 GB | 147.0 GB | 300.0 GB | ||
| Disks | 1 | 3 | 4 | ||
| Heads (read/write) | 2 | 5 | 8 | ||
| Bytes/Sector | 512 | ||||
| Seek Time | Track to track | Read: 0.2 ms (typ) / Write: 0.4 ms (typ) | |||
| Average | Read: 4.5 ms (typ) / Write: 5.0 ms (typ) | ||||
| Full track | Read: 10.0 ms (typ) / Write: 11.0 ms (typ) | ||||
| Average Latency | 2.99 ms | ||||
| Rotational Speed | 10,025 RPM | ||||
| Areal Density | 75 Gbits/sq. in. (max.) | ||||
| Data Transfer Rate | To/from media | 132 MB/s (max.) | |||
| To/from host | SCSI: 320 MB/s, FC: 2 Gb/s | ||||
| Recording Code | 32/34 MEEPRML | ||||
| Interface | SCA-2 (NC Series), 68Pin Wide (NP Series), FC-AL | ||||
| Head Positioning Method | Rotary VCM | ||||
| Start Time | 30 s (typ) | ||||
| Stop Time | 30 s (typ) | ||||
| Buffer Size | 8 MB | ||||
| Physical Specifications | |||||
| Power Requirements | Voltage | 5 V ± 5%, 12 V ± 5% | |||
| Spin-up | 12V ± 5% @ 2.5A (peak) 3.0 A (peak < 100 us) 5V ± 5% @ 0.7A | ||||
| Idle (typ.) | SCSI | 9.5 W | |||
| FC | 10.5 W | ||||
| Dimensions (HxWxD) | 25.4mm x 101.6mm x 146.0mm | ||||
| Weight | 750g | ||||
| Ambient Temperature | Operating | 5°C to 55°C (DE base 60°C max) | |||
| Non-operating | -40°C to 70°C | ||||
| Gradient | 15°C/H max | ||||
| Relative Humidity | Operating | 5% to 95% (non-condensing) | |||
| Non-operating | 5% to 95% (non-condensing) | ||||
| Max. wet bulb | 29°C (operating) | ||||
| Vibration | Operating | 0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz) | |||
| Non-operating | 3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz) | ||||
| Shock | Operating | 65 G max. (2 ms) | |||
| Non-operating | 225 G max. (2 ms) | ||||
| Altitude (operation) | Operating | 3,048 m (max.) | |||
| Non-operating | 12,192 m (max.) | ||||
| Acoustics Noise (idle sound power) (typ.) | 3.4 bels (ready) | ||||
| Reliability Specifications | |||||
| MTBF | 1,200,000 hours | ||||
| Component Life | 5 years | ||||
| Error Rates | Seek errors | 10 per 108 seeks | |||
| Unrecoverable errors | 1 per 1015 bits read | ||||
| Limited Warranty | 5 years (from date of purchase). Replacement Program available to certain purchasers. | ||||
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
Warranty
1 Year DiscTech Warranty
