FUJITSU Part #/MPN: MAT3300FC
DiscTech Item #: FUJ-MAT3300FC-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: Fibre Channel - External HSSDC DB9
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 4.5 / 5.0
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 8MB

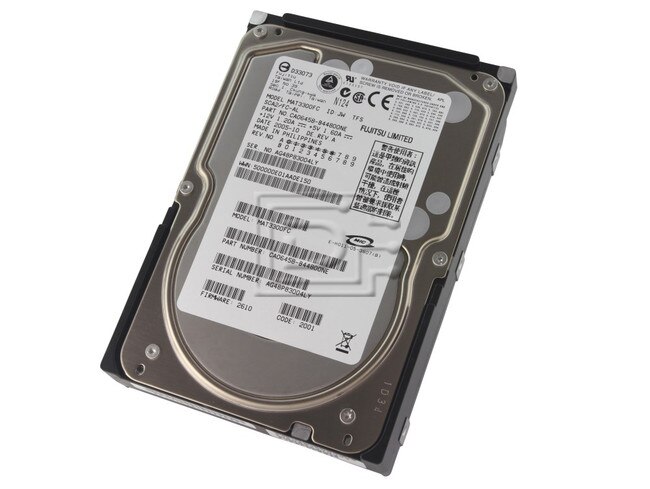

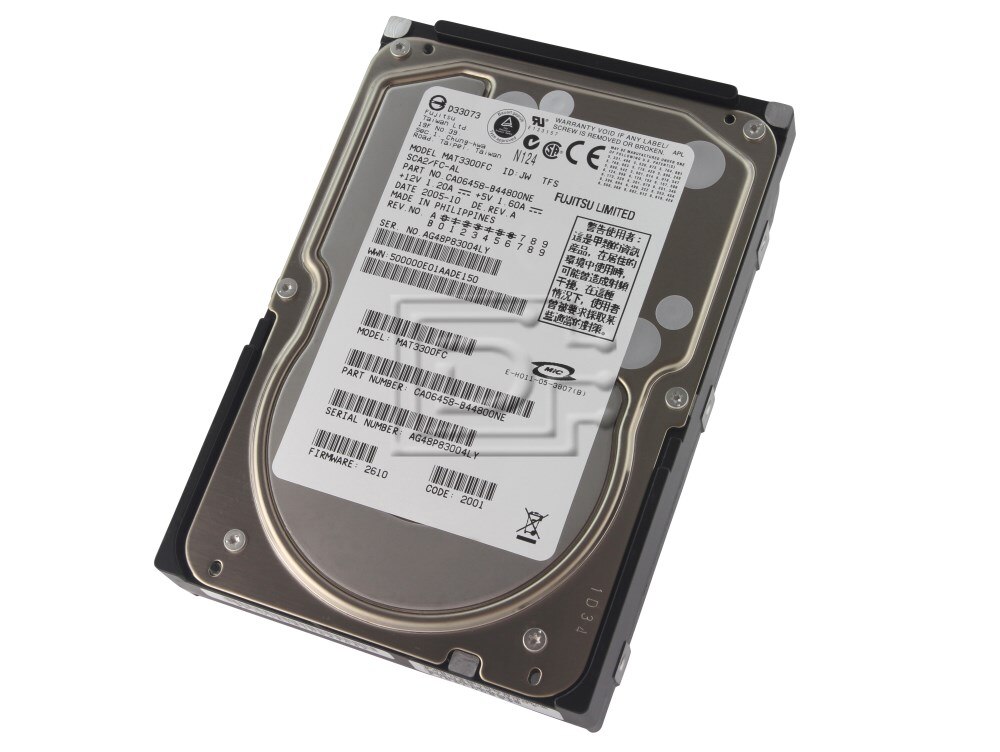

Fujitsu 300GB 10K 2Gbps 40pin FC-AL Fibre Channel Hard Drive MAT3300FC - Refurbished
* Large capacity: Massive capacity has been achieved through the development of head, media, signal processing technology, servo technology*1 as an element technology allowing up to to 11Gb/cm2 (75Gb/in 2) high density and up to 75GB*2 per disk, 300GB*2 per drive (4 disks) high capacity.
* High Performance: Read Ahead Cache *3 and Write Reordering Cache *4 enable the drives to execute read and write operation in high speed.
* High Reliability: On the fly ECC (Error Correction Code) and S.M.A.R.T *5 function enable the drives to improve the data reliability.
* Silence: FDB spindle motor is incorporated for silent operation
Model | MAT3073 NC/NP/FC | MAT3147 NC/NP/FC | MAT3300 NC/NP/FC | ||
---|---|---|---|---|---|
Functional Specifications | |||||
Storage Capacity (formatted) | 73.5 GB | 147.0 GB | 300.0 GB | ||
Disks | 1 | 3 | 4 | ||
Heads (read/write) | 2 | 5 | 8 | ||
Bytes/Sector | 512 | ||||
Seek Time | Track to track | Read: 0.2 ms (typ) / Write: 0.4 ms (typ) | |||
Average | Read: 4.5 ms (typ) / Write: 5.0 ms (typ) | ||||
Full track | Read: 10.0 ms (typ) / Write: 11.0 ms (typ) | ||||
Average Latency | 2.99 ms | ||||
Rotational Speed | 10,025 RPM | ||||
Areal Density | 75 Gbits/sq. in. (max.) | ||||
Data Transfer Rate | To/from media | 132 MB/s (max.) | |||
To/from host | SCSI: 320 MB/s, FC: 2 Gb/s | ||||
Recording Code | 32/34 MEEPRML | ||||
Interface | SCA-2 (NC Series), 68Pin Wide (NP Series), FC-AL | ||||
Head Positioning Method | Rotary VCM | ||||
Start Time | 30 s (typ) | ||||
Stop Time | 30 s (typ) | ||||
Buffer Size | 8 MB | ||||
Physical Specifications | |||||
Power Requirements | Voltage | 5 V ± 5%, 12 V ± 5% | |||
Spin-up | 12V ± 5% @ 2.5A (peak) 3.0 A (peak < 100 us) 5V ± 5% @ 0.7A | ||||
Idle (typ.) | SCSI | 9.5 W | |||
FC | 10.5 W | ||||
Dimensions (HxWxD) | 25.4mm x 101.6mm x 146.0mm | ||||
Weight | 750g | ||||
Ambient Temperature | Operating | 5°C to 55°C (DE base 60°C max) | |||
Non-operating | -40°C to 70°C | ||||
Gradient | 15°C/H max | ||||
Relative Humidity | Operating | 5% to 95% (non-condensing) | |||
Non-operating | 5% to 95% (non-condensing) | ||||
Max. wet bulb | 29°C (operating) | ||||
Vibration | Operating | 0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz) | |||
Non-operating | 3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz) | ||||
Shock | Operating | 65 G max. (2 ms) | |||
Non-operating | 225 G max. (2 ms) | ||||
Altitude (operation) | Operating | 3,048 m (max.) | |||
Non-operating | 12,192 m (max.) | ||||
Acoustics Noise (idle sound power) (typ.) | 3.4 bels (ready) | ||||
Reliability Specifications | |||||
MTBF | 1,200,000 hours | ||||
Component Life | 5 years | ||||
Error Rates | Seek errors | 10 per 108 seeks | |||
Unrecoverable errors | 1 per 1015 bits read | ||||
Limited Warranty | 5 years (from date of purchase). Replacement Program available to certain purchasers. |
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
