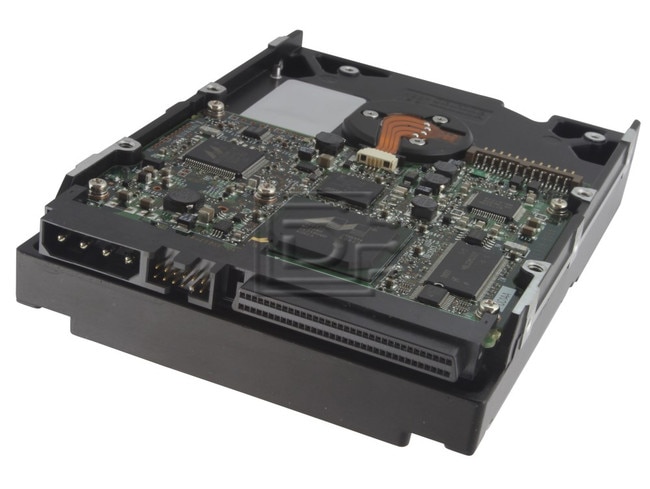

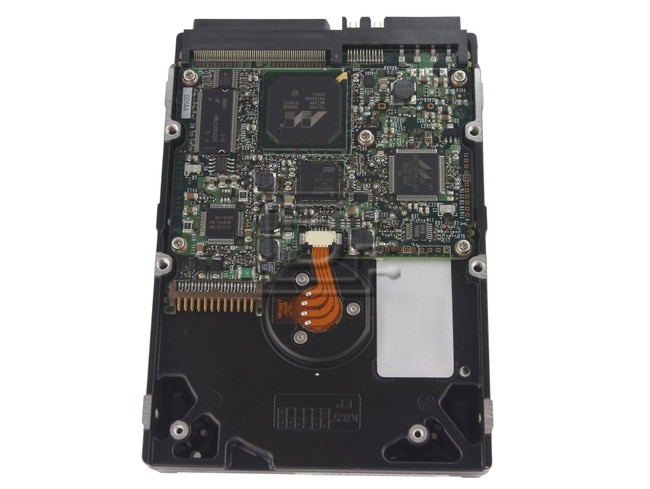

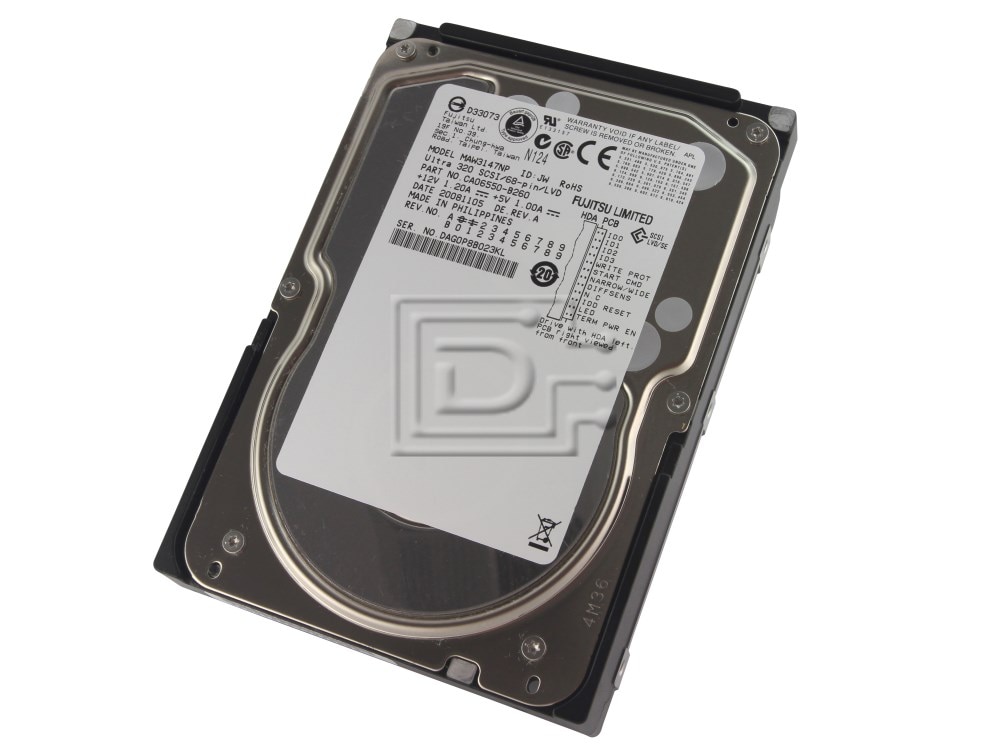

Fujitsu MAW SCSI Hard Drives MAW3147NP
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 146GB |
| Speed: | 10K RPM |
| Interface Types: | SCSI 68pin HD68 |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SCSI LVD U320 - 320MBps 16-bit |
| RAM: | 8MB |
Description
* Large capacity: Massive capacity has been achieved through the development of head, media, signal processing technology, servo technology*1 as an element technology allowing up to to 11Gb/cm2 (75Gb/in 2) high density and up to 75GB*2 per disk, 300GB*2 per drive (4 disks) high capacity.
* High Performance: Read Ahead Cache *3 and Write Reordering Cache *4 enable the drives to execute read and write operation in high speed.
* High Reliability: On the fly ECC (Error Correction Code) and S.M.A.R.T *5 function enable the drives to improve the data reliability.
* Silence: FDB spindle motor is incorporated for silent operation
Specifications
| Formatted storage capacity | 147.0 GB |
| Form Factor | 3.5-inch x 1-inch high |
| Mounting screws | 6#32UNC |
| Seek time (track to track) | Read 0.2 / Write 0.4 milliseconds |
| Seek time (average) | 4.5/5.0 milliseconds (read/write) |
| Seek time (full track) | 10.0/11.0 milliseconds (read/write) |
| Average latency time | 2.99 milliseconds |
| Rotational speed | 10,025 RPM |
| Data Buffer Size | 8 MB |
| Recording code | 32/34 MEEPRML |
| Interface | 68 pin (NP Series) U320 SCSI |
| Head positioning method | ROTARY VCM |
| Spindle start time | 30 seconds typical |
| Spindle stop time | 30 seconds typical |
| Power requirement Idle (ready) | 9.5 W (typical) |
| Height | 25.4 millimetres |
| Width | 101.6 millimetres |
| Depth | 146.0 millimetres |
| Weight | 0.75 kg |
| Ambient temperature (operating) | 5 to 55 degrees C |
| Ambient temperature (non-operating) | -40 to 70 degrees C |
| Maximum DE surface temperature (operating) | 55 max deg. C |
| Gradient | 15 degrees C per hour |
| Relative humidity (operating) | 5 to 95 % RH (non-condensing) |
| Relative humidity (non-operating) | 5 to 95 % RH (non-condensing) |
| Maximum wet bulb | 29 degrees C (non-condensing) |
| Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
| Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
| Shock (operating) | 65G Max (2ms) |
| Shock (non-operating) | 225G Max (2ms) |
| Altitude (operating) | 3,000 metres |
| Altitude (non-operating) | 12,000 metres |
| Acoustic noise (at 1 metre idle) | 3.4 bels |
| MTBF (Mean Time Between Failures) | 1,200,000 power on hours |
| Component life (years) Design life used to calculate MTBF. NOT Warranty | 5 years |
| Unrecoverable errors | 1 per 10^15 bits read |
| Seek errors | 10 per 10^8 seeks |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
