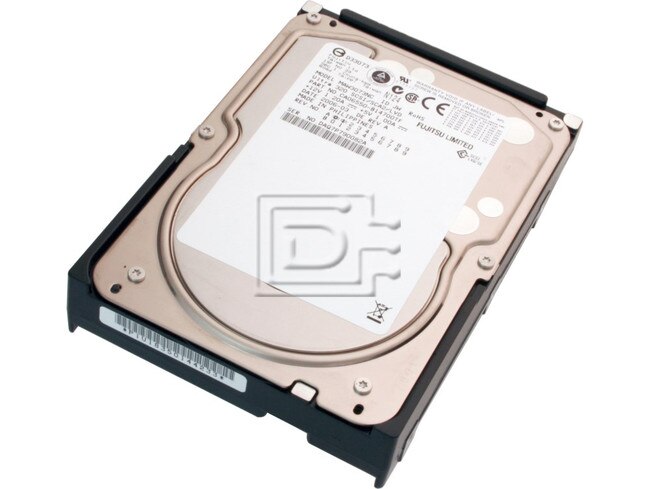

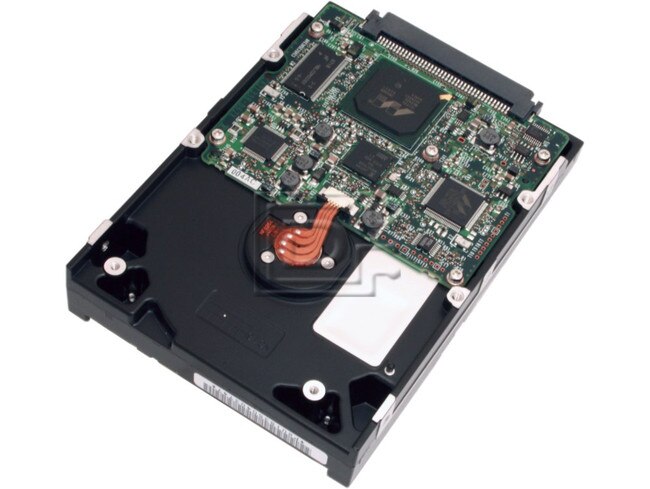

Fujitsu MAW3073NC SCSI Hard Disk Drive

FUJITSU Part #/MPN: MAW3073NC

DiscTech Item #: FUJ-MAW3073NC-BN-5Y

$199.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:5 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$199.00

Enterprise Grade

Capacity: 73GB

Speed: 10,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 4.5 / 5.0

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB

Fujitsu 73GB 10K U320 80pin SCA-2 SCSI Hard Drive MAW3073NC (RoHS Compliant) - Brand New

The MAW SCSI series is the latest generation Hard Disk products from Fujitsu offering low profile, high speed and high capacity to high performance enterprise computing applications.

The MAW (NC) series comes with a 80-pin SCA2 interface connector, spindle speed of 10K RPM and capacities of 73, 147 and 300GB. Areal density has doubled and internal drive transfer rates have been increased by 22% to 132 MB/s when compared to the previous MAP series. The drive is also equipped with an 8MB multi-segmented data buffer combined with a 32-bit wide internal data path for faster data access.

The MAW NC/NP series supports the Ultra 320 SCSI (320MB/s) interface which offers new performance and reliability enhancing features such as data packet protocol, quick arbitration and selection, and signal pre-compensation.

  • Large capacity: Massive capacity has been achieved through the development of head, media, signal processing technology, servo technology as an element technology allowing up to to 11Gb/cm2 (75Gb/in2) high density and up to 75GB per disk, 300GB per drive (4 disks) high capacity.
  • High Performance: Read Ahead Cache and Write Reordering Cache enable the drives to execute read and write operation in high speed.
  • High Reliability: On the fly ECC (Error Correction Code) and S.M.A.R.T function enable the drives to improve the data reliability.
  • Silence: FDB spindle motor is incorporated for silent operation.
  • RoHS Compliance: This HDD is designed to meet the requirements of the European Union's RoHS directive.

Compatibility: This drive is compatible with any of our 3.5 inch SCSI hot-swap trays.

Specifications
Model number MAW3073NC
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 1 inch
Width 4 inch
Length 5.7 inch
Weight 1.5 lbs
Formatted Capacity 73.5 GB
External (I/O) Transfer Rate (max) 320 MBytes/sec
Average Seek Time4.5 msec typical
Default Buffer (cache) Size 8 Mbytes
Spindle Speed 10,000 rpm

ROHS Compliant

Weight: 1.8 lb

Warranty: 5 Year DiscTech
