FUJITSU Part #/MPN: MAW3300FC
DiscTech Item #: FUJ-MAW3300FC-BN-1Y
- Brand New
- Warranty:1 Year DiscTech
- In Stock:118Need more?
Enterprise Grade
Capacity: 300GB
Speed: 10K RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 4.5 / 5.0
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 8MB

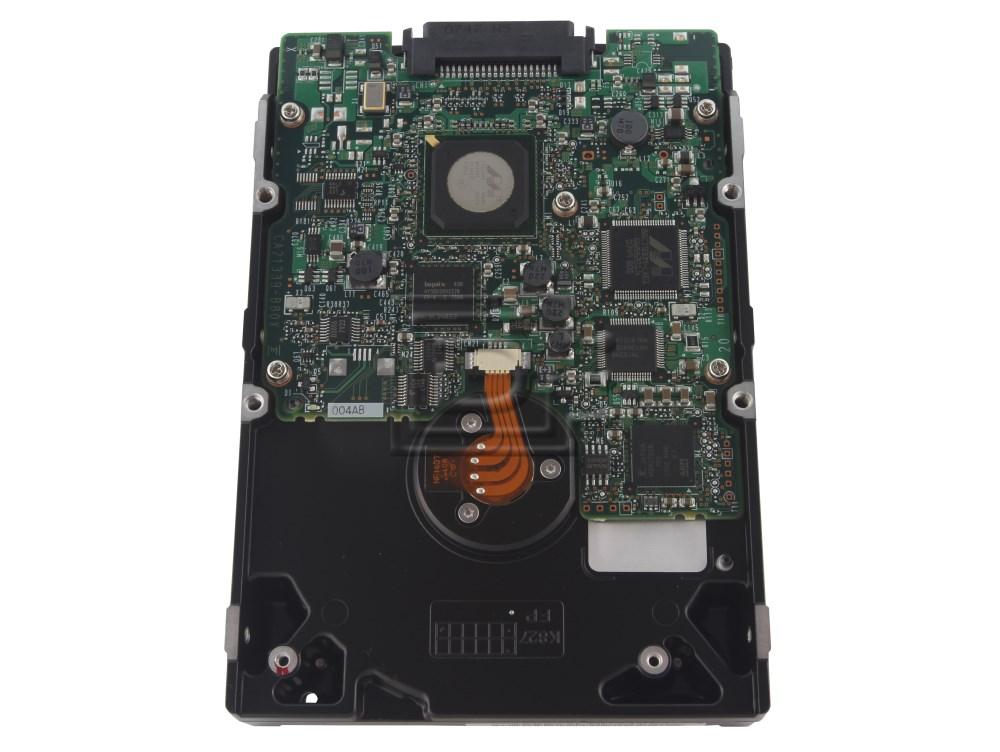

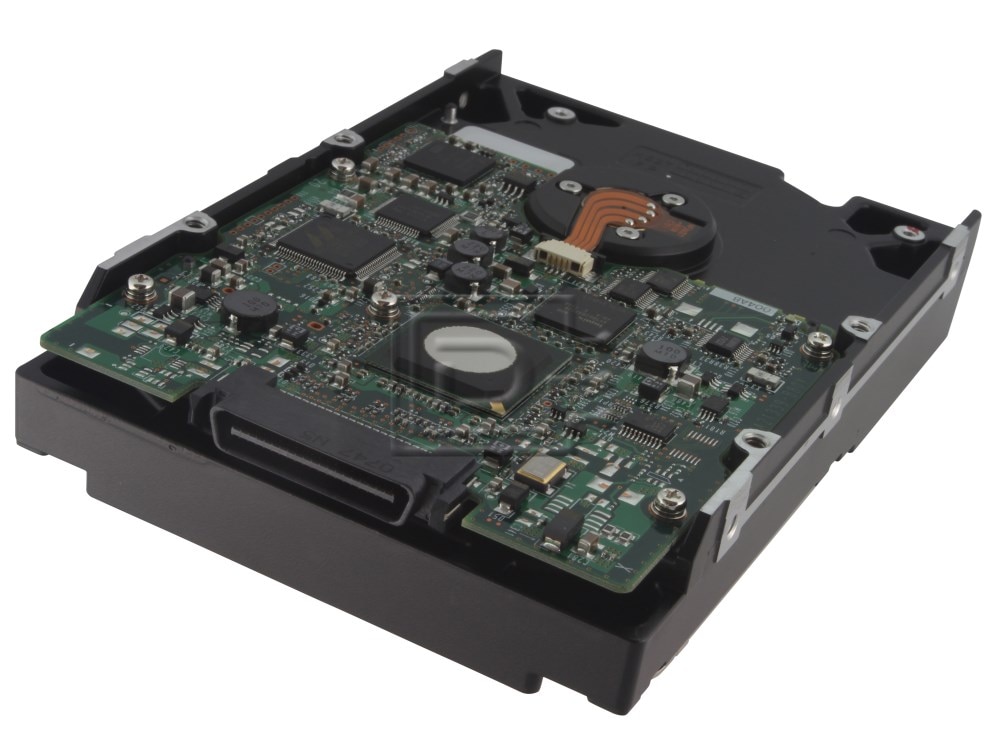

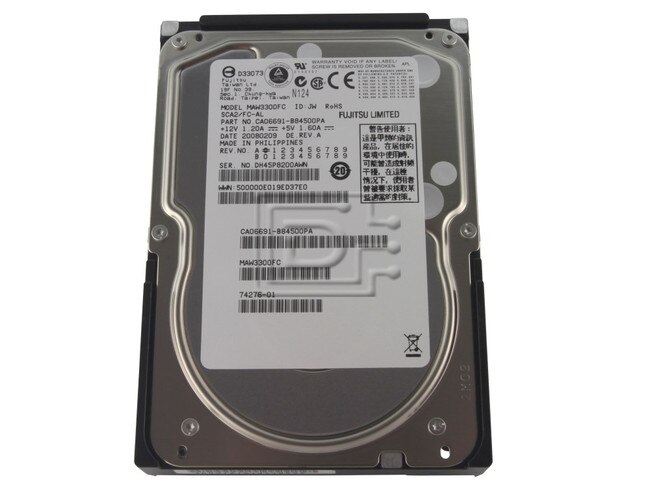

Fujitsu 300GB 10K 2Gbps 40pin FC-AL Fibre Channel Hard Drive MAW3300FC - Brand New
Fujitsu's latest generation of Rohs compliant 10K Enterprise Fibre Channel Hard Disk Drives offers capacities of up to 300GB in a 1-inch high, 3.5-inch form factor.The MAW Fibre Channel series from Fujitsu is the latest generation Hard Disk products from Fujitsu offering low profile, high speed and high capacity to high performance enterprise computing applications.
The MAW (FC) series comes with a dual ported 40-pin SCA2 interface connector, spindle speed of 10K RPM, capacities of 73, 147 and 300GB and supports the 2Gb FC-AL2 interface
Areal density has doubled and internal drive transfer rates have been increased by 22% to 132 MB/s when compared to the previous MAP series. The drive is also equipped with an 8MB multi-segmented data buffer combined with a 32-bit wide internal data path for faster data access.
Leading edge technology enables industry leading performance specifications blended with the latest advances in interface technology, to provide a cost effective storage solution that meets the most demanding enterprise storage requirements.
| Specifications | |
| Model number | MAW3300FC |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Length | 146.0 mm |
| Weight | 0.75 kg |
| Formatted Capacity | 300 Gbytes |
| Average Seek Time, Read | 4.5 msec typical |
| Average Seek Time, Write | 5.0 msec typical |
| Track-to-Track Seek, Read | 0.2 msec typical |
| Track-to-Track Seek, Write | 0.4 msec typical |
| Average Latency | 2.99 msec |
| Default Buffer (cache) Size | 8 Mbytes |
| Max Operating Shock (2-msec) | 65 Gs |
| Max Nonoperating Shock (2-msec) | 225 Gs |
| Operating Vibration (max) | 1.0 Gs |
| Nonoperating Vibration (max) | 5.0 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| MTBF (Hours) | 1,200,000 hours |
| Nonrecoverable Read Errors | 1 per 10^15 bits read |
Alternate MPNs: CA06691-B84500PA 74276-01
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
