FUJITSU Part #/MPN: MAW3300NP
DiscTech Item #: FUJ-MAW3300NP-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: SCSI 68pin HD68
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 4.5 / 5.0
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

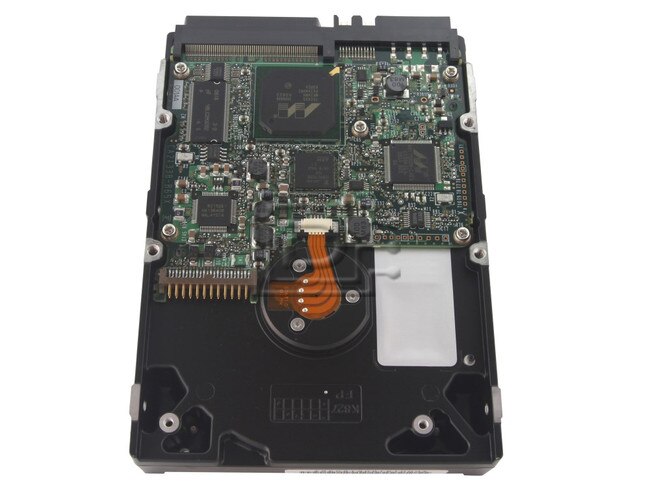

Fujitsu 300GB 10K U320 68pin SCSI Hard Drive RoHS Compliant MAW3300NP - Refurbished
The MAW SCSI series is the latest generation Hard Disk products from Fujitsu offering low profile, high speed and high capacity to high performance enterprise computing applications.
The MAW (NC) series comes with a 80-pin SCA2 interface connector, spindle speed of 10K RPM and capacities of 73, 147 and 300GB. Areal density has doubled and internal drive transfer rates have been increased by 22% to 132 MB/s when compared to the previous MAP series. The drive is also equipped with an 8MB multi-segmented data buffer combined with a 32-bit wide internal data path for faster data access.
The MAW NC/NP series supports the Ultra 320 SCSI (320MB/s) interface which offers new Performance and reliability enhancing features such as data packet protocol, quick arbitration and selection, and signal pre-compensation.
| Series Overview | MAW3300NP |
| Drive Capacity | 300.0 GB |
| Number of Platters (disks) | 4 |
| Number of Data Heads | 8 |
| Bytes/Sector | 512 |
| Interface | 68Pin Wide |
| Transfer Rate to Host | 320 MB/sec |
| Maximum areal density | 60-75 Gbits/in2 |
| Performance | |
| Rotational Speed | 10,025 RPM |
| Average Latency | 2.99 ms |
| Buffer Size | 8MB |
| Seek time (Track to Read) | 0.2 ms (typ) |
| Seek time (Track to Write) | 0.4 ms (typ) |
| Seek Time (Average Read) | 4.5 ms (typ) |
| Seek Time (Average Write) | 5.0 ms (typ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
