Fujitsu MAX3036NC SCSI Hard Disk Drives

FUJITSU Part #/MPN: MAX3036NC

DiscTech Item #: FUJ-MAX3036NC-RF-OE-DEL


$59.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$59.00

Enterprise Grade

Capacity: 36GB

Speed: 15,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 3.3 / 3.8

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB

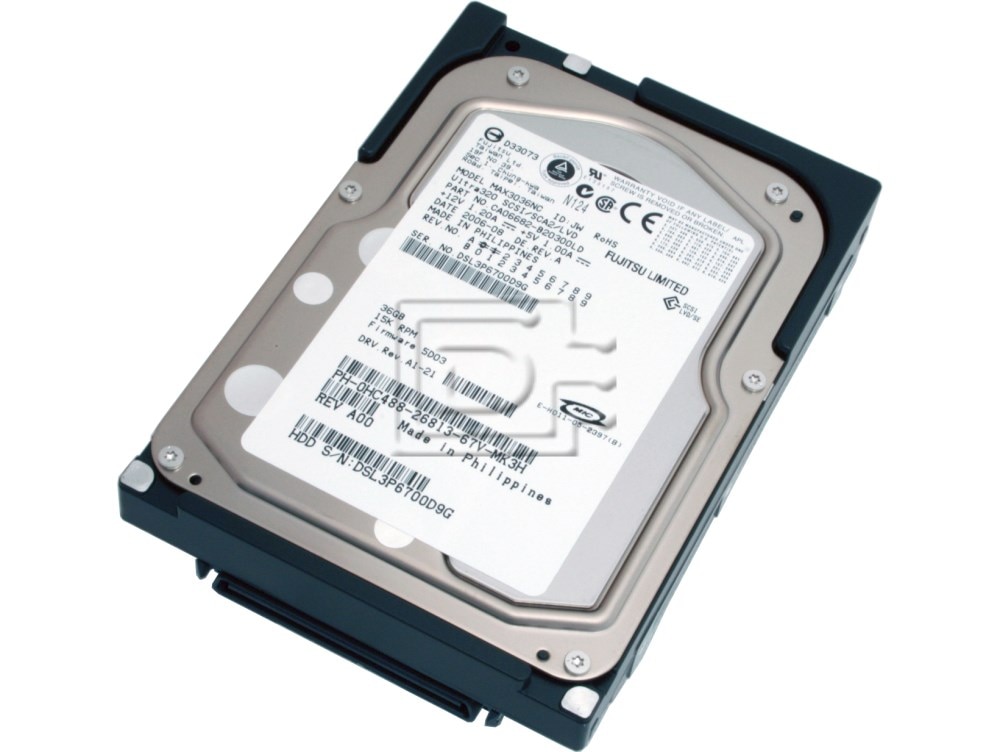

Fujitsu MAX MAX3036NC 36GB 15K U320 80pin SCA-2 SCSI Hard Drive - Refurbished OEM

Thirty-five years ago Fujitsu was manufacturing 14-inch drives for mainframes. Today we’re offering you some of the fastest enterprise 3.5-inch hard disk drives in the industry. Because of our technology expertise and heritage, we can provide your customers with high-capacity and reliable storage options for the most demanding of applications.

Fujitsu’s 3.5-inch 15K RPM enterprise hard disk drives offer a host of innovations: their 147GB 4-platter configuration means lower power consumption, better reliability, and higher data rates. These new enterprise hard disk drives dramatically increase speed and capacity. Additionally, they are equipped with 68Pin or 80Pin U320 SCSI interfaces and 2Gbps Fibre Channel.

This makes them perfect for today’s most challenging storage environments. Fujitsu’s hard disk product variations and accelerated performance allow greater flexibility for system designers making rack-optimized or tower servers, disk systems, RAID, or digital video systems.

But they’re not only flexible — they’re powerful. Fujitsu has substantially increased the maximum internal data-transfer rate on the hard disk drives, reflecting a 24% improvement over previous generation drives.

The time is now to deliver versatile, reliable, and robust hard disk drives to your customers for their most demanding storage application needs.

Alt Pt#'s - H6530 0H6530 HC488 0HC488


Compatibility:

This drive is compatible with all of our SCSI hot swap trays / caddies.

Specifications
Model number MAX3036NC
Model Name MAX
Formatted Capacity 36.7 Gbytes
Rotational Speed 15,000 rpm
Default Buffer (cache) Size 8 Mbytes
Number of Discs (physical) 1
Number of Heads (physical) 2
Performance
Average Seek Time, Read 3.3 msec typical
Average Seek Time, Write 3.8 msec typical
Track-to-Track Seek, Read 0.2 msec typical
Track-to-Track Seek, Write 0.4 msec typical
Average Latency 2 msec
Physical
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 25.4 mm
Width 101.6 mm
Length 146.0 mm
Weight 0.750 kg
Electrical
Power (Idle)11.5 watts
Startup Current (12VDC +/- 5%) 2.5 amps
Startup Current (5VDC +/- 5%) 0.7 amps
Environmental
Max Operating Shock (2-msec) 65 Gs
Max Nonoperating Shock (2-msec) 250 Gs
Operating Vibration (max) 1.0 Gs
Nonoperating Vibration (max) 5.0 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Acoustical
Acoustics, Idle (sound power, typ) 3.6 Bels
Reliability
MTBF (Hours) 1,200,000 hours
Nonrecoverable Read Errors 1 per 10^15 bits read

Click here to view the manufacturer's item description/brochure

Alternate MPNs: H6530 0H6530 0HC488 HC488

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
