Fujitsu MAX3073N 68pinP SCSI Hard
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 73GB |
| Speed: | 15K RPM |
| Interface Types: | SCSI 68pin HD68 |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SCSI LVD U320 - 320MBps 16-bit |
| RAM: | 8MB |
Description

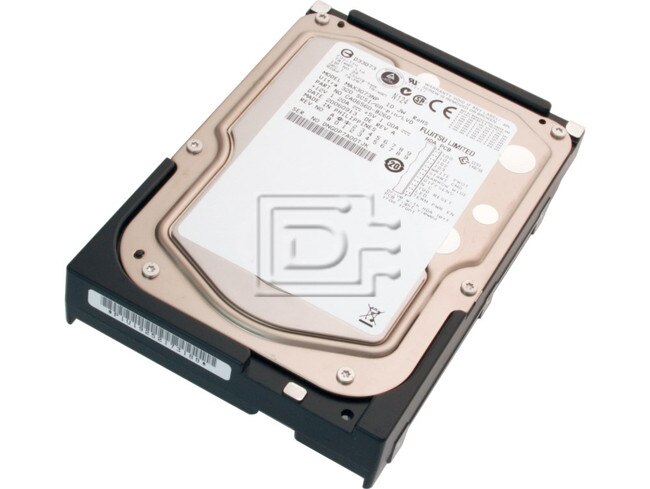

Fujitsu MAX3073NP 73GB 15K U320 68pin SCSI Hard Drive - Factory Recertified
Fujitsu's latest generation of Rohs compliant 15K Enterprise SCSI Hard Disk Drives offer capacities of up to 147GB in a 1-inch high, 3.5-inch form factor. The MAX SCSI series is the latest generation Hard Disk products from Fujitsu offering low profile, high speed and high capacity to high performance enterprise computing applications. The MAX (NP) series comes with a 68-pin interface connector, spindle speed of 15K RPM and capacities of 36, 73 and 147GB. Areal density has doubled and internal drive transfer rates have been increased by 24% to 147 MB/s when compared to the previous MAP series. The drive is also equipped with an 8MB multi-segmented data buffer combined with a 32-bit wide internal data path for faster data access. The MAX NC/NP series supports the Ultra 320 SCSI (320MB/s) interface which offers new performance and reliability enhancing features such as data packet protocol, quick arbitration and selection, and signal pre-compensation. Leading edge technology enables industry leading performance specifications blended with the latest advances in interface technology, to provide a cost effective storage solution that meets the most demanding enterprise storage requirements.
Specifications
| Formatted storage capacity | 73.5 GB | |
| Form Factor | 3.5-inch x 1-inch high | |
| Mounting screws | 6#32UNC | |
| Seek time (track to track) | Read 0.2 / Write 0.4 milliseconds | |
| Seek time (average) | 3.3/3.8 milliseconds (read/write) | |
| Seek time (full track) | 8.0/9.0 milliseconds (read/write) | |
| Average latency time | 2.00 milliseconds | |
| Rotational speed | 15,000 RPM | |
| Data Buffer Size | 8 MB | |
| Recording code | 32/34 MEEPRML | |
| Interface | 68 pin (NP Series) U320 SCSI | |
| Head positioning method | ROTARY VCM | |
| Spindle start time | 30 seconds typical | |
| Spindle stop time | 30 seconds typical | |
| Power requirement Idle (ready) | 11.5 W (typical) | |
| Height | 25.4 millimetres | |
| Width | 101.6 millimetres | |
| Depth | 146.0 millimetres | |
| Weight | 0.75 kg | |
| Ambient temperature (operating) | 5 to 55 degrees C | |
| Ambient temperature (non-operating) | -40 to 70 degrees C | |
| Maximum DE surface temperature (operating) | 55 max deg. C | |
| Gradient | 15 degrees C per hour | |
| Relative humidity (operating) | 5 to 95 % RH (non-condensing) | |
| Relative humidity (non-operating) | 5 to 95 % RH (non-condensing) | |
| Maximum wet bulb | 29 degrees C (non-condensing) | |
| Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) | |
| Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) | |
| Shock (operating) | 65G Max (2ms) | |
| Shock (non-operating) | 250G Max (2ms) | |
| Altitude (operating) | 3,000 metres | |
| Altitude (non-operating) | 12,000 metres | |
| Acoustic noise (at 1 metre idle) | 3.6 bels | |
| MTBF (Mean Time Between Failures) | 1,200,000 power on hours | |
| Unrecoverable errors | 1 per 10^15 bits read | |
| Seek errors | 10 per 10^8 seeks | |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Factory Refurbished
Warranty
1 Year DiscTech Warranty
