Fujitsu MBA3147RC Fujitsu SAS / Serial Attached Hard Disk Drives
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 146GB |
| Speed: | 15K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-1 3Gbps |
| RAM: | 16MB |
Description

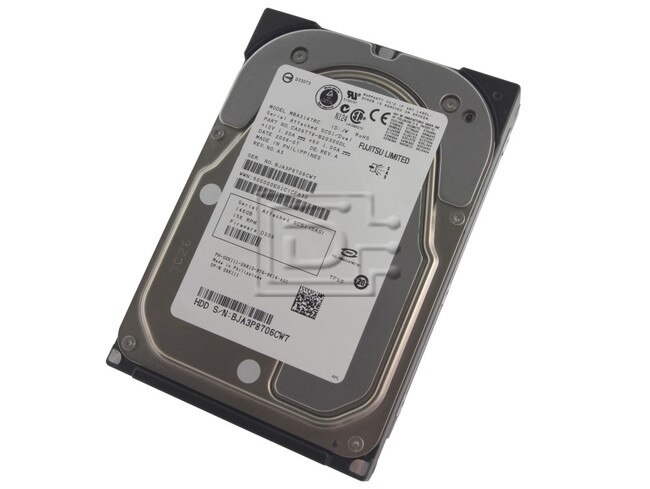

Fujitsu MBA 147GB 15K 3Gbps Serial Attached SCSI Hard Drive MBA3147RC - New Pull OEM
Fujitsu MBA 147GB 15K 3Gbps Serial Attached SCSI Hard Drive MBA3147RC - New Pull OEM
DPN: 0KM772 KM772
Fujitsu p/n: CA06778-B200
Compatibility
Dell PowerEdge 1950, 1955, 2900, 2950, 6950
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
Specifications
| FUNCTIONAL SPECIFICATIONS | |
|---|---|
| Formatted storage capacity | 147 GB |
| Seek time Track to Track Average Full Track | 0.2 / 0.4 ms. typ. (read/write) 3.4 / 3.9 ms. typ. (read/write) 8.0/9.0 ms. typ. (read/write) |
| Average latency time | 2.00 ms. |
| Rotational speed | 15,005 RPM |
| Interface | SAS (3Gbps) |
| Data Buffer Size | 16 MB |
| Recording code | 60/62 MEEPRML |
| Head positioning method | ROTARY VCM |
| Spindle start time | 20 seconds typical |
| Spindle stop time | 20 seconds typical |
| PHYSICAL SPECIFICATIONS | |
| Power requirement Idle (ready) | 12.8 W typ. |
| Form Factor | 3.5-inch x 1-inch high |
| Mounting screws | #6 x 32UNC |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Depth | 146.0 mm |
| Weight | 0.75 kg |
| Ambient temperature Operating Non-operating | 5 to 55 degrees C -40 to 70 degrees C |
| Maximum DE surface temperature (operating) | 60 max deg. C |
| Gradient | 20 degrees C per hour |
| Relative humidity Operating Non-operating | 5 to 95 % RH (non-condensing) 5 to 95 % RH (non-condensing) |
| Maximum wet bulb | 29 degrees C (non-condensing) |
| Vibration Operating Non-operating | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
| Shock Operating Non-operating | 65G Max (2ms) 250G Max (2ms) |
| Altitude Operating Non-operating | 3,000 metres 12,000 metres |
| Acoustic noise (at 1 metre idle) | >/=3.6 (ready) bels |
| RELIABILITY | |
| MTBF (Mean Time Between Failures) | 1,400,000 power on hours |
| Component life (years) - Design life used to calculate MTBF. NOT Warranty | 5 years |
| Unrecoverable errors | 1 per 10^15 bits read |
| Seek errors | 10 per 10^8 seeks |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0KM772 KM772 CA06778-B200 0XK111 XK111
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
