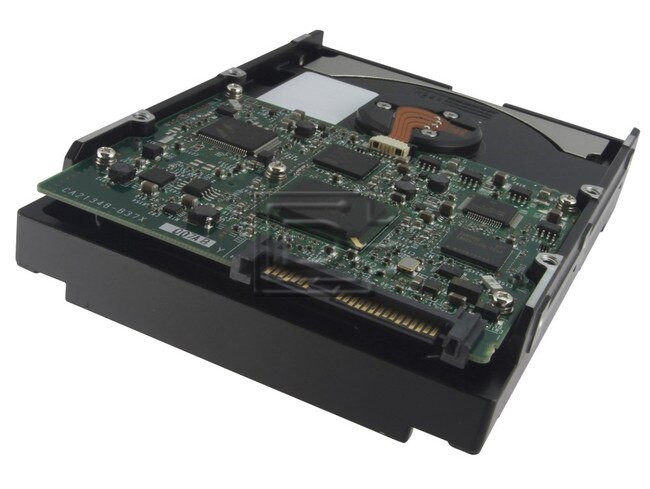

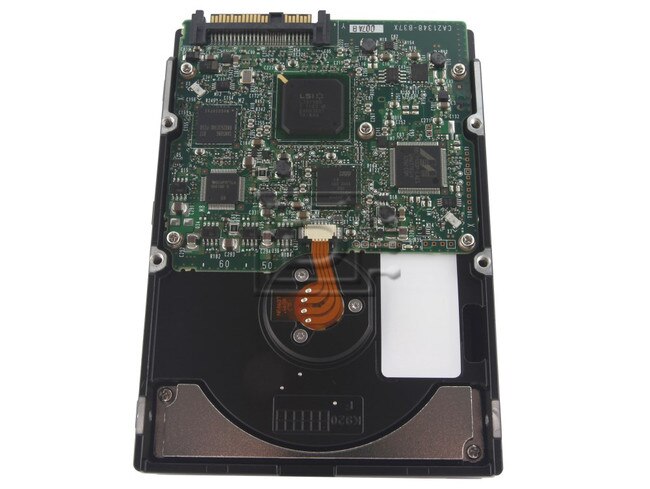

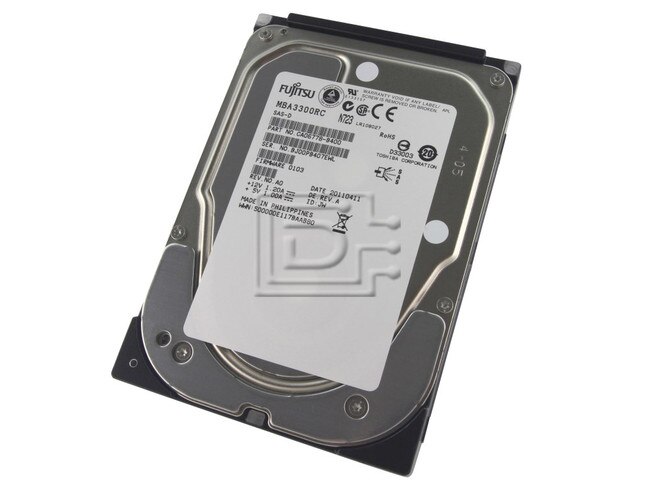

Fujitsu MBA3300RC SAS Hard Disk Drives

FUJITSU MBA3300RC CA06778-B400 SAS Hard Disk Drives Image 1 image
  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$42.00

Capacity:300GB
Speed:15K RPM
Interface Types:SAS
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SAS-1 3Gbps
RAM:16MB

Description

Fujitsu MBA MBA3300RC 300GB 15K 3Gbps SAS Hard Drive RoHS Compliant - Refurbished

Fujitsu's latest generation 15K RPM Enterprise Hard Disk Drives (MBA Series) continue to represent some of the fastest enterprise 3.5-inch hard disk drives in the industry. Leveraging our technology expertise and heritage, we deliver reliable, high-capacity HDDs for your customer’s most demanding storage applications.

With 73, 147 and 300GB capacity points this latest drive technoogy offers low power consumption, high reliability, and faster internal data rates. Interface options include 3Gb/sec SAS, 68/80-pin U320 SCSI and 4Gb/sec Fibre Channel.

Leading edge technology enables industry leading performance specifications blended with the latest advances in interface technology. This provides a flexible and cost effective storage solution for your most demanding applications including rack and tower servers, storage arrays, RAID systems and digital video systems.

DPN: 0N226K / N226K
PN-0N226K-26813-95K-5JSJ-A01
CA06778-B41500DM CA06778-B400

Compatibility:

This drive is compatible with any of our 3.5" hot swap SAS drive trays.

Specifications

ModelMBA3073
NC/NP/RC 		MBA3147
NC/NP/RC 		MBA3300
NC/NP/RC
Functional Specifications
Storage Capacity (formatted)73.5 GB147.0 GB300.0 GB
Disks124
Heads (read/write)248
Bytes/Sector512
Seek TimeTrack to trackRead: 0.2 ms (typ) / Write: 0.4 ms (typ)
AverageRead: 3.4 ms (typ) / Write: 3.9 ms (typ)
Full trackRead: 8.0 ms (typ) / Write: 9.0 ms (typ)
Average Latency2. ms
Rotational Speed15,000 RPM
Data Transfer RateTo/from media147 MB/s
To/from hostSCSI: 320 MB/s
Recording Code60/62 MEEPRML
InterfaceSCA-2 80Pin (NC Series), 68Pin Wide (NP Series)
Head Positioning MethodRotary VCM
Start Time20 s (typ)
Stop Time20 s (typ)
Buffer Size16 MB
Physical Specifications
Power RequirementsVoltage5 V ± 5%, 12 V ± 5%
Idle (typ.)9.5 W
Dimensions (HxWxD)25.4mm x 101.6mm x 146.0mm
Weight750g
Ambient TemperatureOperating5°C to 55°C
Non-operating-40°C to 70°C
Gradient20°C/H max
Relative HumidityOperating5% to 95% (non-condensing)
Non-operating5% to 95% (non-condensing)
Max. wet bulb29°C (operating)
VibrationOperating0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz)
Non-operating3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz)
ShockOperating65 G max. (2 ms)
Non-operating250 G max. (2 ms)
Altitude (operation)Operating3,000 m (max.)
Non-operating12,000 m (max.)
Acoustics Noise (idle sound power) (typ.)</= 3.6 bels (ready)
Reliability Specifications
MTBF1,400,000 hours
Component Life5 years
Error RatesSeek errors10 per 108 seeks
Unrecoverable errors10 per 1016 bits read
Click here to view the manufacturer's item description/brochure

Alternate MPNs: CA06778-B400

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

Refurbished

Warranty

1 Year DiscTech Warranty
