Fujitsu MBE2073RC 73GB 15K SAS Hard Disk Drive

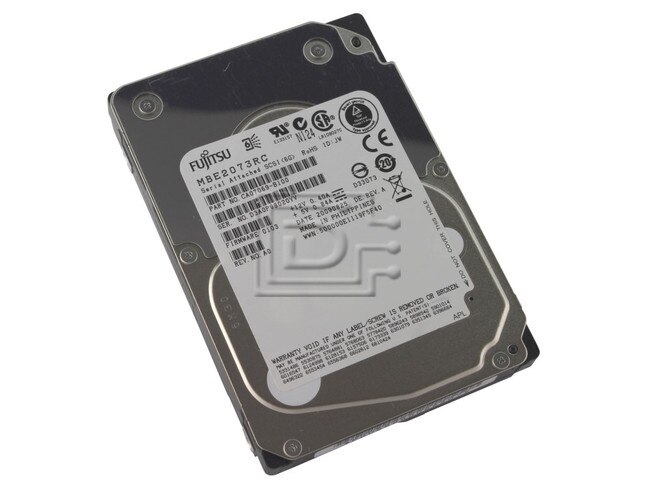

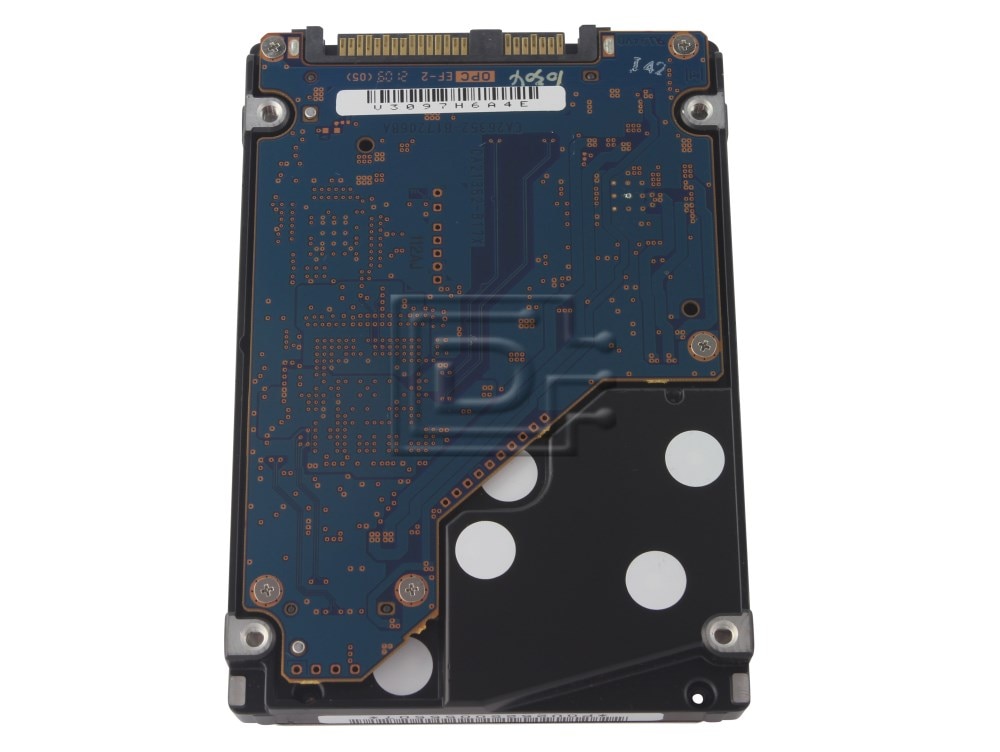

FUJITSU MBE2073RC CA07069-B100 SAS Hard Drive Image 1 image
  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

  • In Stock:6
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$23.00

Capacity:73GB
Speed:15K RPM
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
Electrical Interface:SAS-2 6Gbps
RAM:16MB

Description

Fujitsu MBE 73GB 15K 6Gbps SFF Serial Attached SCSI Hard Drive MBE2073RC - Refurbished

Utilizing the vast experience and innovative technology developed over 40 years, Fujitsu introduces a new enterprise class 2.5-inch SAS drive offering industry leading performance and environmental benefits.

The MBE2-RC series is the first enterprise hard disk drive from Fujitsu to be halogen free. The 15,000 RPM, 6Gb/sec., SAS-2 interface enterprise drive doubles its capacity from previous generation models through the adoption of perpendicular magnetic recording.

The higher capacity and performance meets a wide range of enterprise applications, from highend servers to disk storage arrays. In addition, the best-in-class low power values are ideal for servers and storage systems used in data centers, which require minimal energy usage and mounting space. The 6Gb/sec. SAS-2 interface and improved areal densities enable higher data rates.

As part of the Fujitsu Green Policy Innovation program, the new series provides the best-in-class power consumption at 4.1 watts idle, achieving up to 21% reduction from previous generation models, and up to 68% reduction from current 3.5" 15K RPM offerings.

Fujitsu p/n: CA07069-B100

Compatibility:

Dell PowerEdge 1950, 1955, 2900, 2950, 6950

Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4

Specifications

FUNCTIONAL SPECIFICATIONS
Formatted storage capacity73.5 GB
Seek time (track to track)Read 0.2 / Write 0.4 ms. typ.
Seek time (average)3.8/4.3 ms. typ. (read/write)
Seek time (full track)7.0/8.0 ms. typ. (read/write)
Average latency time2.0 ms.
Rotational speed15,000 RPM
InterfaceSAS II (6Gbps)
Data Buffer Size16 MB
PHYSICAL SPECIFICATIONS
Power requirement Idle (ready)3.9 W typ.
Form Factor2.5-inch x 15mm high
Height15.0 mm
Width69.85 mm
Depth100.45 mm
Weight0.22 kg
Ambient temperature (operating)5 to 55 degrees C
Ambient temperature (non-operating)-40 to 70 degrees C
Maximum DE surface temperature (operating)60 max deg. C
Gradient20 degrees C per hour
Relative humidity (operating)5 to 95 % RH (non-condensing)
Relative humidity (non-operating)5 to 95 % RH (non-condensing)
Maximum wet bulb29 degrees C (non-condensing)
Vibration (operating)0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)
Vibration (non-operating)3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)
Shock (operating)100G Max (1ms)
Shock (non-operating)400G Max (1ms)
Altitude (operating)3,048 metres
Altitude (non-operating)12,192 metres
Acoustic noise (at 1 metre idle)>/=2.9 (ready) bels
Click here to view the manufacturer's item description/brochure

Alternate MPNs: CA07069-B100

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Condition

Refurbished

Warranty

1 Year DiscTech Warranty
