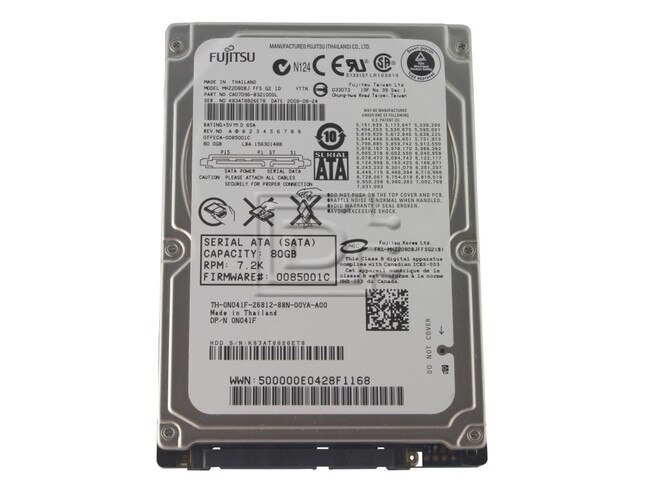

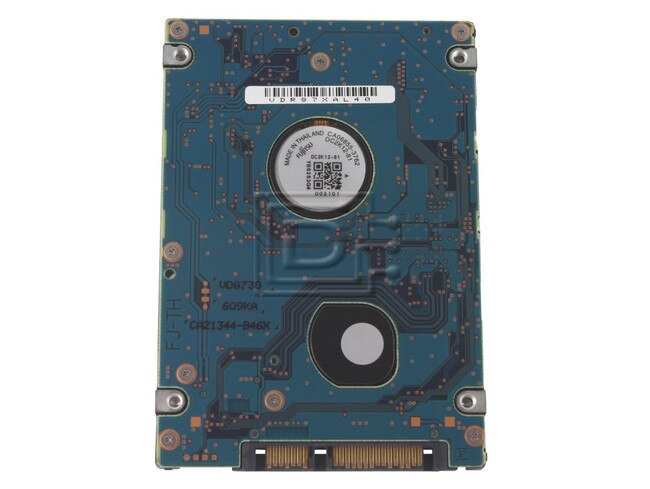

Fujitsu MHZ2080BJ / N041F 80GB SATA Hard Laptop Hard Drive


DiscTech Item #: FUJ-MHZ2080BJ-RF-OE-DEL


Capacity: 80GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 10.5

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 16MB

Fujitsu MHZ2080BJ / N041F 80GB 7.2K 2.5-inch SATA Hard Laptop Hard Drive - Refurbished OEM

Industry leading 7,200 RPM Hard Disk Drive developed using perpendicular recording.

  • 7,200 RPM spindle speed featuring a maximum storage capacity of 320GB
  • 2.5-inch HDD features Serial ATA (SATA) 3.0Gb/sec. interface
  • Best-in-class idle power consumption of 0.8W (typical} and standby/sleep power consumption of 0.13W (typical)
  • Ideal for high-end, mainstream, and gaming notebooks, and slimline desktop PCs
Utilizing the vast experience and innovative technology developed over 40 years, Fujitsu enriches the 2.5-inch HOD product line by introducing the new 7,200 RPM 3.0Gb/sec. SATA model offering the world's first 320GB maximum capacity. The new series doubles the capacity with higher data throughput over its predecessor while keeping the low power operation, and is an ideal solution for the growing demand from ambitious users seeking higher performance and storage capacity with a small ecological footprint. Engineered to deliver high performance and high capacity in a small form factor, these 7,200 RPM mobile HOD deliver a low typical average read/write seek time of 10.5 I 12.5 msec. The low power consumption and best-in-class acoustic noise level, makes these 2.5-inch SATA HODs an excellent choice for today's ultra-fast, high-capacity notebook computers.

ALT PN : N041F, 0N041F
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature5 °C
Shock Tolerance Operating300 G @ 2 ms
Shock Tolerance Storage900 G @ 1 ms
Connector Type7 pin Serial ATA
Interface (Storage)Serial ATA-300
Drive Performance
Average Latency4.17 ms
Average Seek Time10.5 ms
Buffer Size16 MB
Capacity80 GB
Data Transfer Rate300 MBps
Form Factor2.5 x .9mm
Hard Drive TypeInternal hard drive
Interface TypeSerial ATA-300
Spindle Speed7200 rpm

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: N041F 0N041F

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
