PCIe to U.2 SFF-8639 NVMe SSD Adapter Card

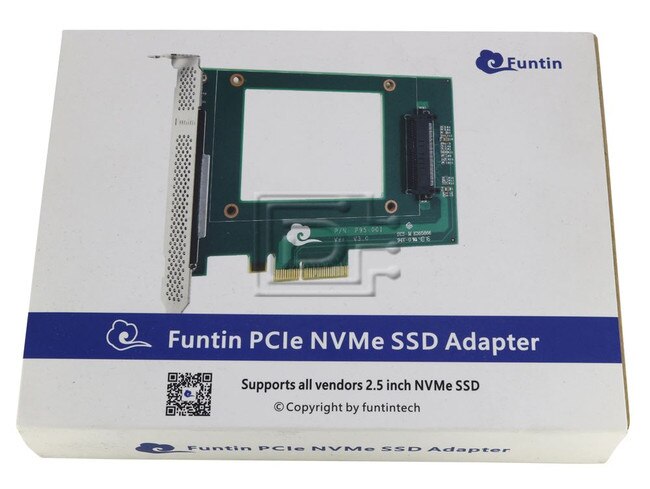

  • Generic P95-001 FT-PNSC01 U.2 PCIe to PCIE Adapter image 1

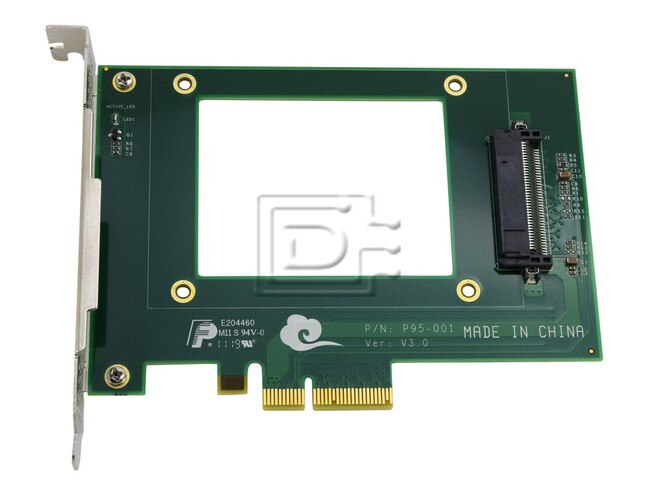

  • Generic P95-001 FT-PNSC01 U.2 PCIe to PCIE Adapter image 2

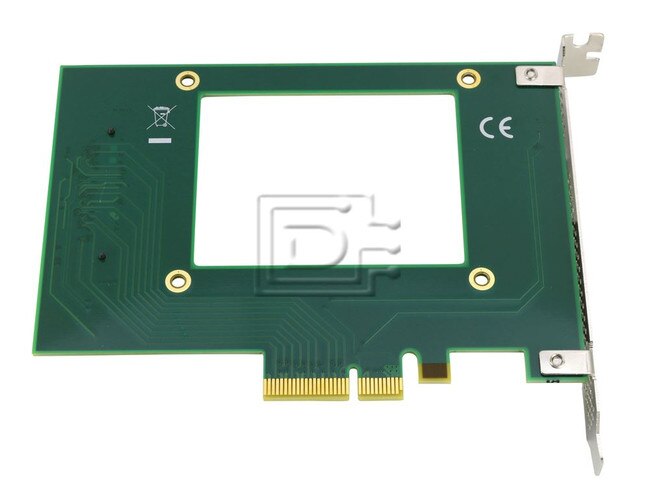

  • Generic P95-001 FT-PNSC01 U.2 PCIe to PCIE Adapter image 3

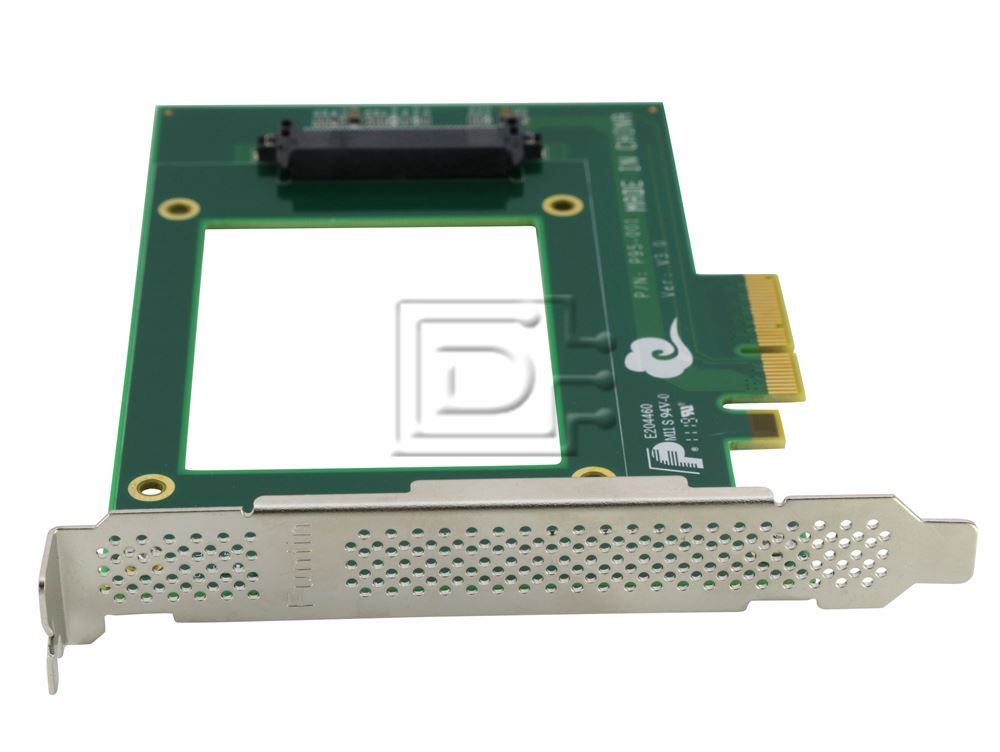

  • Generic P95-001 FT-PNSC01 U.2 PCIe to PCIE Adapter image 4
Generic P95-001 FT-PNSC01 U.2 PCIe to PCIE Adapter image 1
Generic P95-001 FT-PNSC01 U.2 PCIe to PCIE Adapter image 2
Generic P95-001 FT-PNSC01 U.2 PCIe to PCIE Adapter image 3
Generic P95-001 FT-PNSC01 U.2 PCIe to PCIE Adapter image 4

Generic Part #/MPN: P95-001

DiscTech Item #: FTC-P95-001-BN-OE

$17.00
  • Brand New
  • Warranty:1 Year DiscTech
  • In Stock:48Need more?
Back
$17.00

Interface Types: NVMe U.2, PCIe

Form Factor: 2.5" SFF Server Drive

Electrical Interface: PCIe - v3.0 - 16GBps

Funtin P95-001 / FT-PNSC01 x4 PCIe to U.2 SFF-8639 NVMe SSD Adapter Card - Brand New


Adapts any U.2 NVMe SSD 2.5inch drive to PCIe expansion slot. Easy fast installation!

Funtin P95-001 / FT-PNSC01 x4 PCIe to U.2 SFF-8639 NVMe SSD Adapter Card

Funtin PCIe NVMe SSD Adapter with U.2 (SFF-8639) Interface for 2.5" NVMe SSD

  • Boost system speed and performance by adding a PCIe U.2 SSD to your PC
  • Supports PCIe U.2 SSDs (NVMe) 2.5 INCH
  • Compatible with PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0
  • Fast and easy setup with native OS support
  • Installs into x4, x8 or x16 PCIe slots
  • Equipped with a full-profile bracket, and includes a half-height/low-profile bracket for installation in small form-factor computers

Get ultra-fast data access by adding a PCIe U.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane U.2 SSD (PCIe-based) to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an U.2 PCIe-based SSD (NVMe) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the U.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.

Supports PCIe U.2 SSDs
The adapter supports PCIe 3.0 x4 NVMe (U.2 2.5INCH) drives. The expansion slot adapter supports the most common 2.5 INCH SFF drive sizes.

Easy to install
The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.

Applications

  • Connect a PCIe U.2 SSD to your computer through an available x4 PCI Express expansion slot to boost system speed and increase internal data storage
  • Get ultra-fast data access, ideal for gaming or high-performance workstations
  • Install your operating system on an MU2 PCIe based drive for fast access, while keeping larger platter drives available for bulk storage

x4 PCI Express to U.2 PCIe SSD Adapter
Part NumberP95-001 FT-PNSC01
Hardware
Bus TypePCI Express
Compatible Drive TypesU.2 PCIe x4
Drive InstallationFixed
Drive Size2.5INCH
InterfacePCI Express
Number of Drives1
Supported Drive Height(s)
  • 7MM, 9MM, 15MM
    • Connector
    Drive Connectors1 - U.2  PCIe x4
    Host Connectors1 - PCI Express x4 Male
    Performance
    Hot Swawp CapabilityNo
    Software
    OS CompatibilityOS independent; No software or drivers required
    Indicators
    LED Indicators1 - Pin header on board for drive LED connection
    Environmental
    Humidity15% ~ 90% RH
    Operating Temperature5°C to 50°C (41°F to 122°F)
    Storage Temperature-25°C to 70°C (-13°F to 158°F)
    Physical Characteristics
    ColorRed
    Max Drive Height4.3 in [110 mm]
    Product Height7.2 in [184 mm]
    Product Length7 in [179 mm]
    Product Weight1.6 oz [46 g]
    Product Width4.8 in [121 mm]
    Packaging Information
    Shipping (Package) Weight5.3 oz [150 g]
    What's in the Box
    Included in Package
  • 1 - x4 PCI Express® to U.2 PCIe SSD Adapter
  • 1 - full-profile bracket (pre-installed)
  • 1 - quick start guide

    • ROHS Compliant

    Alternate MPNs: FT-PNSC01

    Weight: 0.5 lb

    Warranty: 1 Year DiscTech

    Brand New

    1 Year DiscTech Warranty
