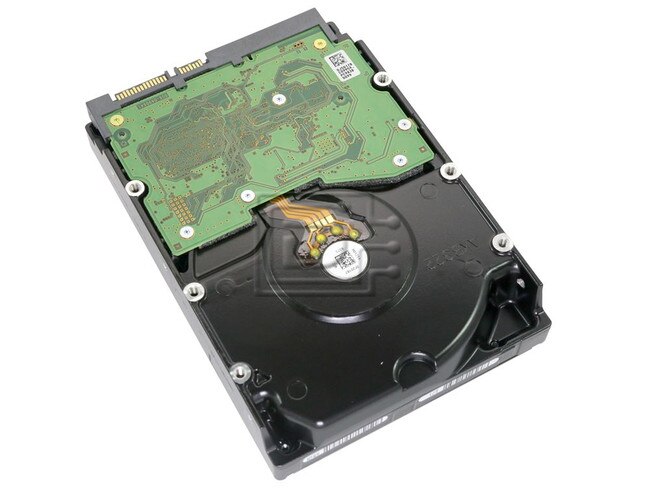

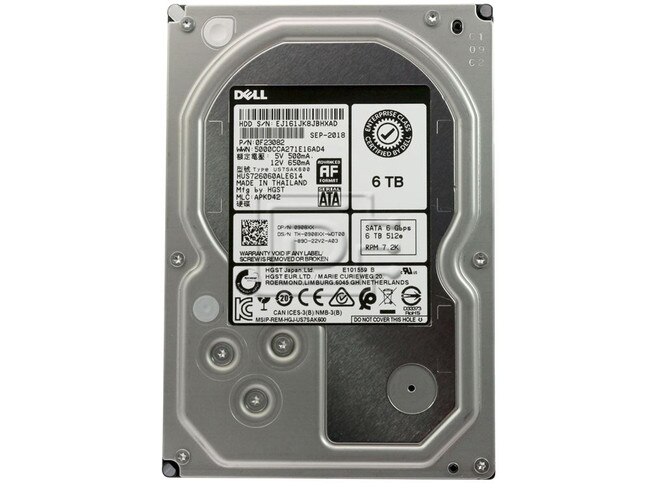

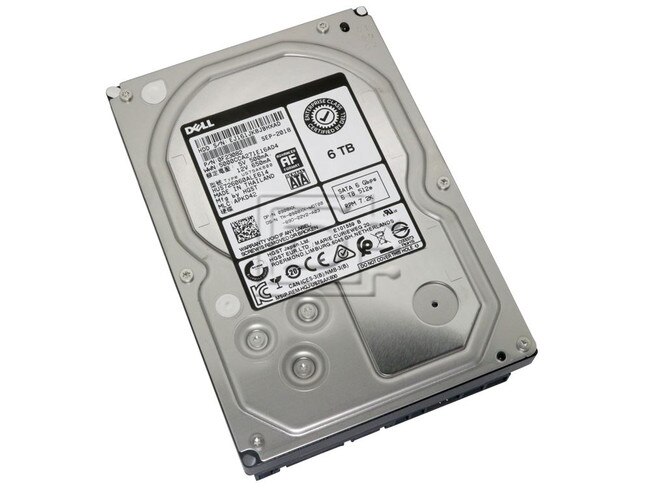

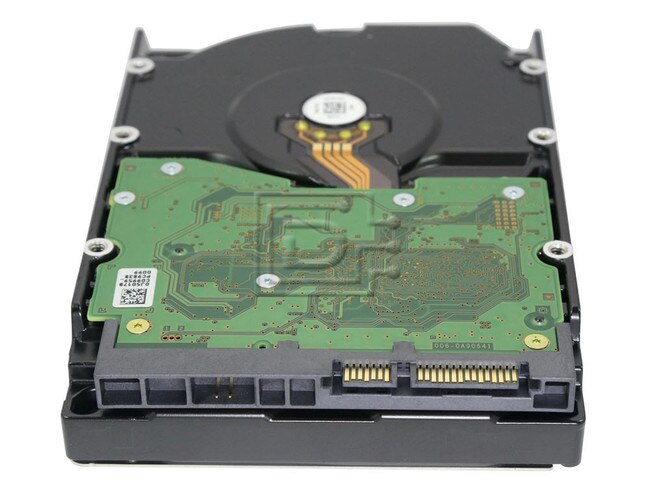

Dell 908XX / HGST Ultrastar 7K6000 0F23082 / HUS726060ALE614 6TB SATA HD

Hitachi Part #/MPN: 0F23082

DiscTech Item #: HIT-0F23082-BN-OE-DEL


$190.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$190.00

Enterprise Grade

Capacity: 6TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 227/202

Average Seek Time: 4.16

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 128MB

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

Dell 908XX / HGST Ultrastar 7K6000 0F23082 / HUS726060ALE614 6TB 6Gbps 7.2K RPM 512e Enterprise SATA HDD - Brand New

Alt MPN: HUS726060ALE614 908XX  0908XX 0F23082

Hitachi Ultrastar 7K6000 Enterprise Hard Drive

  • Best-in-class random & sequential performance
  • Reliable, field-proven, 7th generation 5-disk design
  • Technology Innovation Improves Storage Efficiency – include higher areal density for 25% faster sequential performance vs. 7K4000, and a 128MB cache buffer

Increasing Capacity Density by 50%
Ultrastar 7K6000 provides 50% more capacity and 30% better power efficiency in terms of Watts per terabyte (W/TB) than its predecessor, Ultrastar 7K4000. The 7K6000 is designed for all traditional and rapidly growing scale-out storage applications, including object, block and file storage architectures, providing huge capacity, the fastest 7,200 RPM performance and the best $/TB acquisition cost.

Technology Innovation Improves Storage Efficiency
Ultrastar 7K6000 also delivers greater storage efficiency through best-in-class performance, achieving up to 3X higher random write performance, thanks to HGST media cache architecture, a disk-based caching technology, which provides a large non-volatile cache on the disk. Media cache also allows for improved reliability and data integrity during unexpected power loss. Other performance-enhancing features include higher areal density for 25% faster sequential performance vs. 7K4000, and a 128MB cache buffer. The 7K6000 offers a 12Gb/s SAS (6Gb/s SATA) interface for easy integration into high performance data centers. As drive capacities increase, so does the time required to recover a failed drive in a RAID configuration. Dramatically reduce RAID rebuild times and maintain system performance during the rebuild process with the new Rebuild Assist
Data Security with Industry-Leading Quality, Reliability
Compliance and privacy requirements drive the need for increased data security. Ultrastar 7K6000 helps protect data from unauthorized use by offering security and encryption options. Instant Secure Erase (ISE) models expedite drive redeployment and retirement. Encryption models protect data with hardware-based encryption, including a Trusted Computing Group (TCG) Enterprise_A, TCG with FIPS 140-2 certification, Level 2. The Ultrastar 7K6000 is a seventh generation, 5-platter design, field proven by top server and storage OEMs, and Internet giants, and extends HGST’s long-standing tradition of reliability leadership with a 2M-hour MTBF rating

Choose Ultrastar 7K6000 for these Enterprise Applications & Environments

  • Cloud & Hyperscale storage
  • Distributed Files Systems like Ceph™ and Hadoop® to support Big Data Analytics
  • Video surveillance & content distribution
  • Direct & Network Attached Storage (DAS & NAS)
  • RAID arrays
  • Massive scale-out data centers (MSO)


Compatibility: This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.

Ultrastar® 7K6000
Model/Part No.0F23082 908XX
Alt Model/Part No.HUS726060ALE614
Data Security ModeSecure Erase (overwrite only)
Capacity6TB/6,000GB
InterfaceSATA 6Gbps
Form Factor3.5-inch
Sector size (bytes)512
Performance
Data buffer (MB)128
Rotational speed (RPM)7200
Latency average, (ms)4.16
Interface transfer rate (MB/s, max)600
Sustained transfer rate (MB/s typical)
(MiB/sec, typ)
(MB/sec, typ)

216/192
227/202
Seek time (read, ms, typical)7.6/8.0
Reliability
Error rate (non-recoverable, bits read)1 in 10E15
Load/Unload cycles (at 40°C)600,000
MFBF (M hours)2.0
Annualized Failure Rate (AFR)0.44%
Availability (hrs/day x days/wk)24x7
Acoustics
Idle (Bels, typical)2.9/3.6
Power
Requirement+5 V, +12V
Operating (W, typical)9.1
Idle (W)7.1
Power consumption efficiency at idle
(Watts/TB)
(Watts/GB)

1.2
0.0012
Physical size
z-height (mm)26.1
Dimensions (width x depth, mm)101.6 (+/-0.25) x 147
Weight (g/lb max)715/1.57631
Environmental (Operating)
Power-On Hours5º to 60º C
Shock (half-sine wave 2 ms, G)70
Vibration (G RMS 5 to 500 Hz)0.67 (XYZ)
Environmental (Non-Operating)
Ambient temperature-40º to 70º C
Shock (half-sine wave, 1ms, G)300
Random vibration (G RMS 5 to 500 Hz)1.04 (XYZ)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HUS726060ALE614 908XX 0908XX

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
