Hitachi Part #/MPN: HUSMM1680ASS201
DiscTech Item #: HIT-HUSMM1680ASS201-NP-OE-EMF
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive

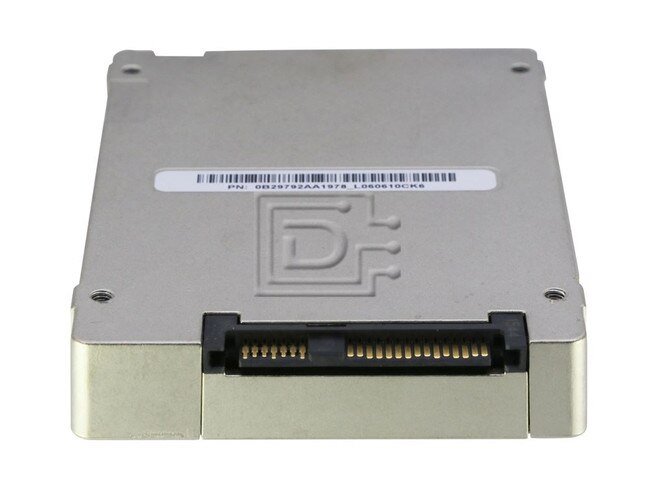

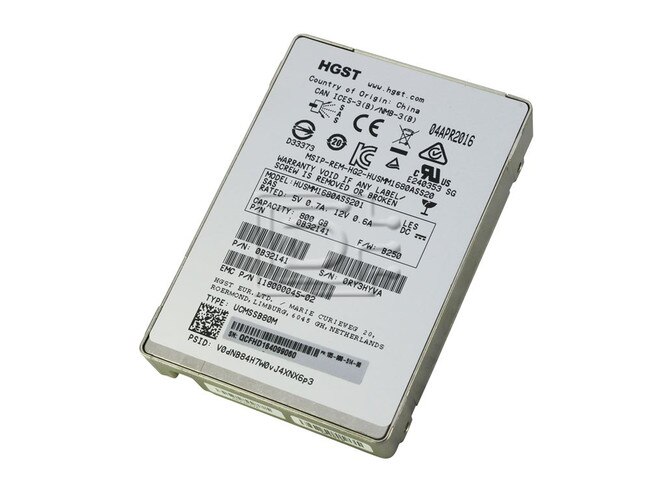

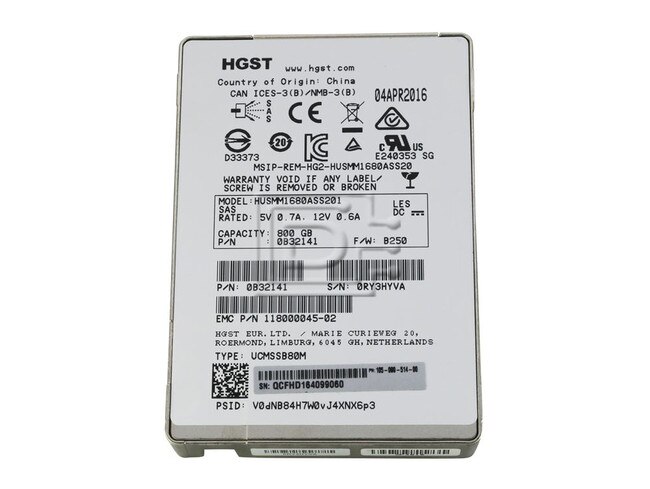

HGST UltraStar SSD1600MM HUSMM1680ASS201 / 0B32146 800GB 2.5" 12Gbps eMLC 512 WI 10-DWPD TCG Encryption Enterprise SAS SSD - New Pull
HGST UltraStar SSD1600MM HUSMM1680ASS201 / 0B32146 800GB 2.5" SFF 12Gbps eMLC 512 WI / Write Intensive 10-DWPD TCG Encryption Enterprise SAS / Serial Attached SCSI SSD / Solid State Drive - New PullUltrastar SSD800MM
Ultrastar SSD1600MM
HGST Enterprise Storage Experience
HGST leverages decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design, reliability, firmware, customer qualification and system integration to the Ultrastar® SSD1600MM solid-state drive (SSD) family. The synergistic relationship between HGST’s throughput-enhancing SSDs and traditional HDDs provides cost effective, end-to-end enterprise-class storage solutions, delivering reliability, compatibility, capacity, cost and system performance. This combination makes HGST a leading SSD/HDD provider with the experience and technology needed to meet escalating reliability, endurance and performance in the most demanding enterprise environments.
Maximum Performance, Reliability and Endurance
The Ultrastar SSD1600MM delivers high sequential throughput, up to 1100MB/s read and 765MB/s write (12Gb/s SAS). It also delivers up to 130,000 read and 100,000 write IOPS, reaching speeds >100 times faster than HDDs and double the speed of current 6Gb/s SSDs, allowing rapid access to “hot” enterprise data for improved productivity and operational efficiency. The Ultrastar SSD1600MM family offers significant value in terms of IOPS per Watt, while reducing total cost of ownership (TCO) through low power consumption, efficient cooling and reduced space requirements.
The Ultrastar SSD1600MM family combines enterprise-grade MLC NAND Flash memory, advanced endurance management firmware and power loss data management techniques to extend reliability, endurance and sustained performance over the life of the SSD. The Ultrastar SSD1600MM family achieves an extraordinary 0.35% annual failure rate (AFR) or 2.5 million hour meantime-between-failure (MTBF). The 1600GB capacity model endures up to 29.2 Petabytes (PB) of random writes over the life of the drive—the equivalent of writing 16 Terabytes (TB) per day for five years.
For complete end-to-end data protection and reliability, the Ultrastar SSD1600MM family incorporates the T10 Data Integrity Field (DIF) standard, extended error correction code (ECC), Exclusive-OR (XOR) parity to protect against Flash die failure, parity-checked internal data paths without an external write cache, and an exclusive power loss data management feature that does not require supercapacitors. The Ultrastar SSD1600MM family is backed by a five year limited warranty, or the maximum Petabytes (PB) written (based on capacity).
HGST Quality and Service
HGST’s Ultrastar SSD1600MM family extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data. HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a complete portfolio of SSD/HDD solutions to satisfy today’s monumental computing needs.
Highlights
- MLC NAND Flash for ultra-high performance and endurance
- Mainstream endurance 10DW/D for 5 years
- Best IOPS/Watt for reduced TCO
- 12Gb/s SAS interface for maximum throughput
- Advanced power loss data management technology
- Self-encrypting models conform to TCG’s Enterprise specification
Applications / Environments
- Ultra-high performance tier-0 enterprise storage
- Enterprise-class servers and high performance computing
- Space and/or power constrained environments
- Online Transaction Processing (OLTP)
- Video pre- and post-production
- Financial and e-commerce
- Database analytics
Compatibility:
This drive is compatible with any system that accepts 2.5" SAS Drives.
| Product Specifications | |
|---|---|
| HGST Model # | HUSMM1680ASS201 |
| HGST Base Part # | 0B32146 |
| Configuration | |
| Interface | SAS 12Gb/s |
| Capacity (GB1 ) at 512 bytes/sector | 800 |
| Form factor | 2.5-inch |
| Flash memory technology | Multi Level Cell (MLC) |
| Performance | |
| Read throughput (max MB/s, sequential 64K) | 1150 |
| Write throughput (max MB/s, sequential 64K) | 765 |
| Read IOPS (max IOPS, random 4K) | 130,000 |
| Write IOPS (max IOPS, random 4k) | 100,000 |
| Reliability | |
| Error rate (non-recoverable bits read) | 1 in 10^17 |
| MTBF2 (M hours) | 2.5 |
| Availability (hrs/day x days/wk) | 24x7 |
| Endurance (max PB1 , random write) | 14.6 |
| Power | |
| Requirement | +5 VDC (+/-5%) +12 VDC (+/-5%) |
| Operating (W, typical) | 9.0 and 11.0 |
| Idle (W) | 2.2 |
| Physical | |
| z-height (mm) | 15.0 |
| Dimensions (width x depth, mm) | 70.1 x 100.6 |
| Weight (g, max) | 187 |
| Environmental (operating) | |
| Case temperature | 0º to 70ºC |
| Shock (half-sine wave) | 1000G (0.5ms) 500G (2ms) |
| Vibration, random (G RMS) | 2.16, all axis (5 to 700 Hz) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0B32146
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
