Hitachi Part #/MPN: HUC109060CSS600
DiscTech Item #: HIT-HUC109060CSS600-RF-OE-EMF
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:4Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 600GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 198 - 117
Average Seek Time: 3.8 / 4.2
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

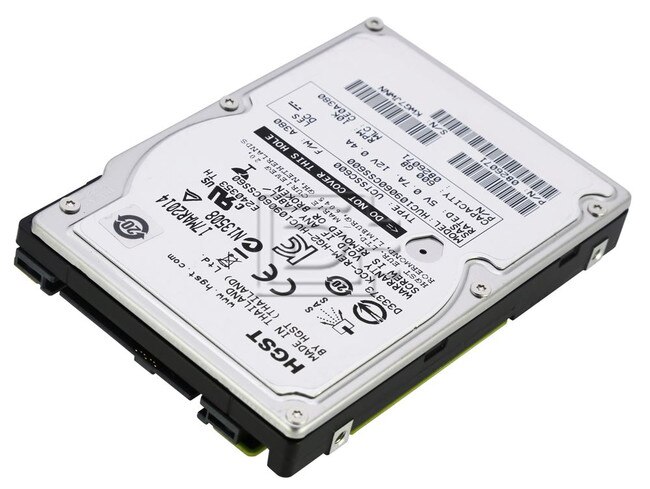

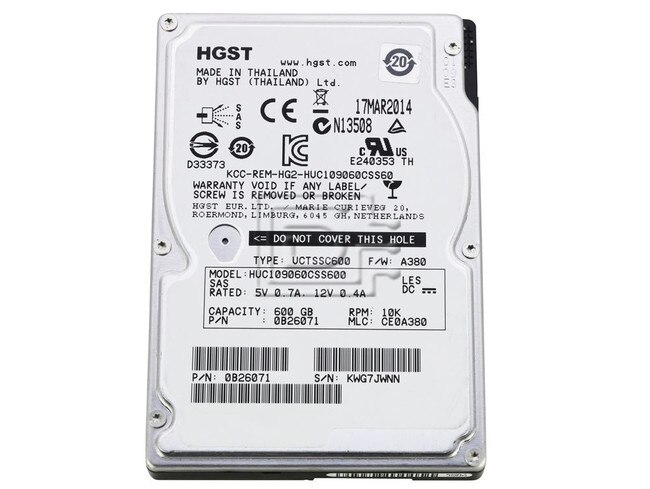

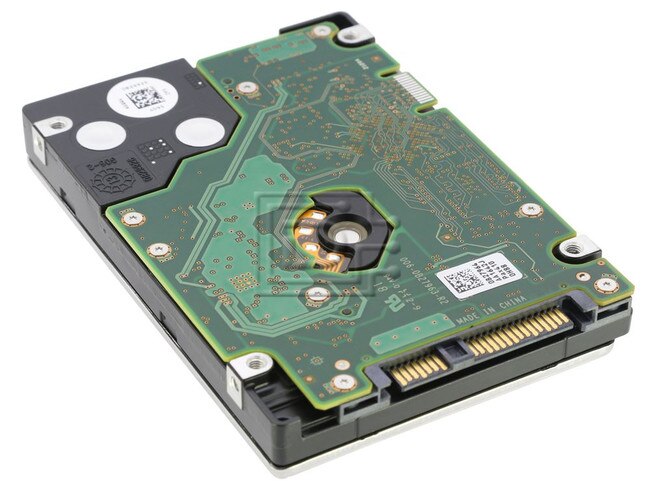

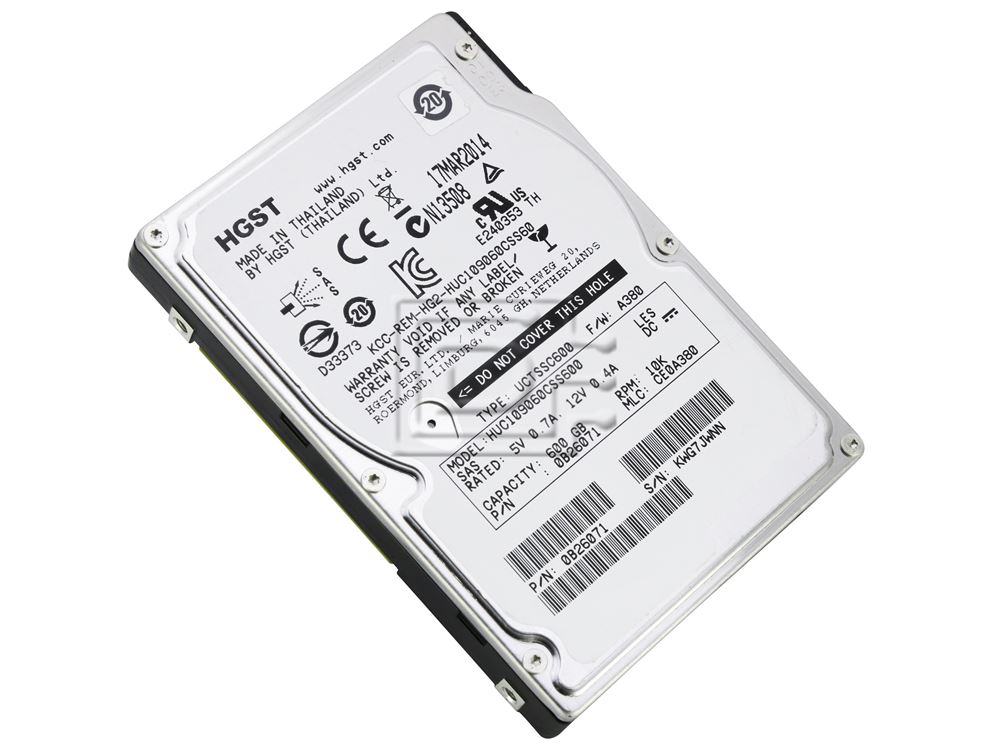

HGST Ultrastar C10K900 HUC109060CSS600 600GB 10K 6Gbps 2.5" SFF SAS HDD Hard Drive- Refurbished
HGST Ultrastar C10K900 HUC109060CSS600 600GB 10,000 RPM 6Gbps 512e 2.5" SFF SAS / Serial Attached SCSI Hard Disk Drive - Refurbished
This HDD will work in any system that does not require proprietary SAS HDDS. It has 1,171,875,000 512k data blocks which is slightly smaller capacity than other 600GB drives. For New RAID volumes only.
HGST Quality and Service
HGST’s Ultrastar C10K900 extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data.
HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a breadth of hard disk drive solutions to satisfy all of today’s demanding computing needs.
| Specifications | |
|---|---|
| Configuration | |
| Model Number | HUC109060CSS600 |
| Model Name | Ultrastar C10K900 |
| Interface | SAS 6Gb/s |
| Capacity (GB) | 600 |
| Recording zones | 40 |
| Data heads (physical) | 4 |
| Data disks | 2 |
| Max. areal density (Gbits/sq. in.) | 494 |
| Performance | |
| Data buffer (MB) | 64 |
| Rotational speed (RPM) | 10,000 |
| Latency average (ms) | <3.0 |
| Media transfer rate (Mbits/s, max) | 2105 |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate (MB/s, typical) | 198 - 117 |
| Seek time (read, ms, typical) | 3.8 / 4.2 |
| Power | |
| Requirement | +5 VDC (+/-5%), +12 VDC (+/-5%) |
| Operating, (W, typical) | 5.8 |
| Low power idle (W) | 3.0 |
| Power consump. efficiency index (W/GB) | 0.0058 |
| Physical Size | |
| z-height (mm) | 14.8 |
| Dimensions (width x depth, mm) | 70.1 x 100.6 |
| Weight (g, max) | 204 |
| Environment (operating) | |
| Ambient temperature | 5o to 55o C |
| Shock (half-sine wave 2ms, G) | 60 |
| Environment (non-operating) | |
| Ambient temperature | -40o to 70o C |
| Shock (half-sine wave, 2ms, G) | >300 |
| Vibration, random (G RMS, 5 to 500 Hz) | 1.5, all axes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 1 Year DiscTech
