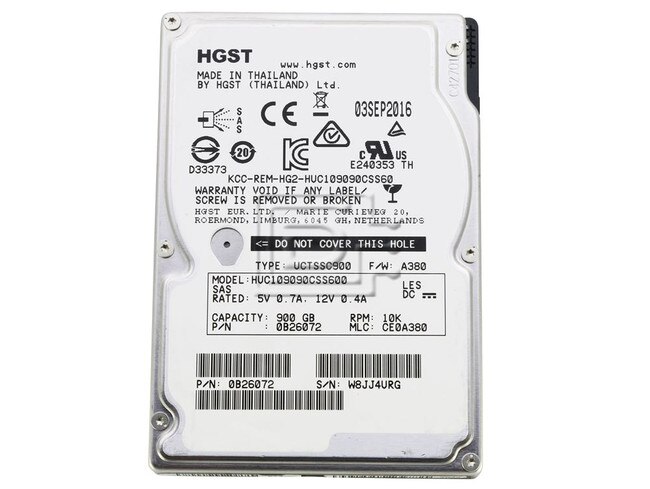

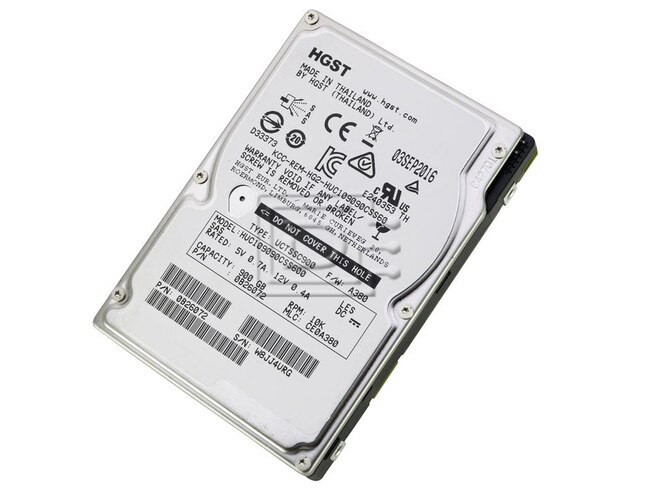

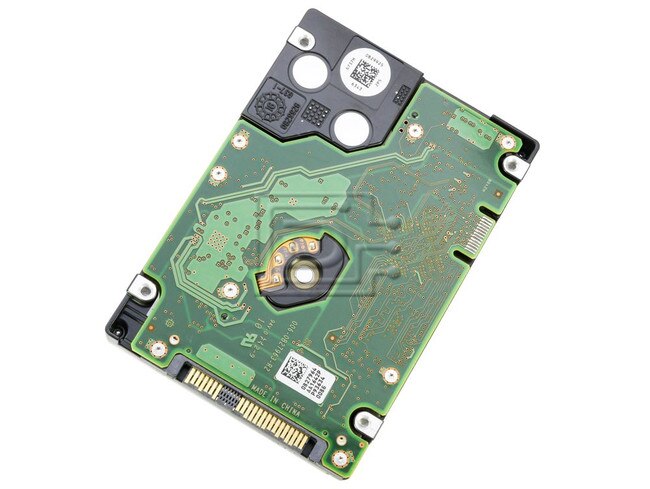

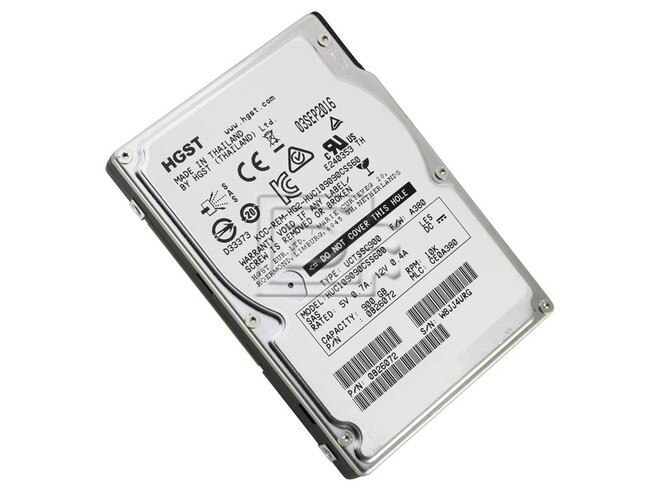

HGST Ultrastar C10K900 HUC109090CSS600 900GB 10K 6Gbps 512K SFF SAS HDD
| Capacity: | 900GB |
| Speed: | 10K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 64MB |
Description
HGST Ultrastar C10K900 HUC109090CSS600 900GB 10K 6Gbps 512K SFF SAS HDD Hard Drive - Refurbished
HGST Ultrastar C10K900 HUC109090CSS600 900GB 10,000 RPM 6Gbps 512K 2.5" SFF SAS / Serial Attached SCSI Hard Disk Drive - Refurbished
HGST Quality and Service
HGST’s Ultrastar C10K900 extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data.
HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a breadth of hard disk drive solutions to satisfy all of today’s demanding computing needs.
Specifications
| Specifications | |
|---|---|
| Configuration | |
| Model Number | HUC109090CSS600 |
| Model Name | Ultrastar C10K900 |
| Interface | SAS 6Gb/s |
| Capacity (GB) | 900GB |
| 512K Data Blocks | 1,758,174,768 |
| Data heads (physical) | 6 |
| Data disks | 3 |
| Max. areal density (Gbits/sq. in.) | 494 |
| Performance | |
| Data buffer (MB) | 64 |
| Rotational speed (RPM) | 10,000 |
| Latency average (ms) | <3.0 |
| Media transfer rate (Mbits/s, max) | 2105 |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate (MB/s, typical) | 198 - 117 |
| Seek time (read, ms, typical) | 3.8 / 4.2 |
| Power | |
| Requirement | +5 VDC (+/-5%), +12 VDC (+/-5%) |
| Operating, (W, typical) | 5.8 |
| Low power idle (W) | 3.0 |
| Power consump. efficiency index (W/GB) | 0.0043 |
| Physical Size | |
| z-height (mm) | 14.8 |
| Dimensions (width x depth, mm) | 70.1 x 100.6 x 14.8 |
| Weight (g, max) | 204 |
| Environment (operating) | |
| Ambient temperature | 5o to 55o C |
| Shock (half-sine wave 2ms, G) | 60 |
| Environment (non-operating) | |
| Ambient temperature | -40o to 70o C |
| Shock (half-sine wave, 2ms, G) | >300 |
| Vibration, random (G RMS, 5 to 500 Hz) | 1.5, all axes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
