HEWLETT PACKARD Part #/MPN: 188120-B22
DiscTech Item #: HPI-188120-B22-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 9GB
Speed: 15,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 114
Average Seek Time: 3.3 / 4.8
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

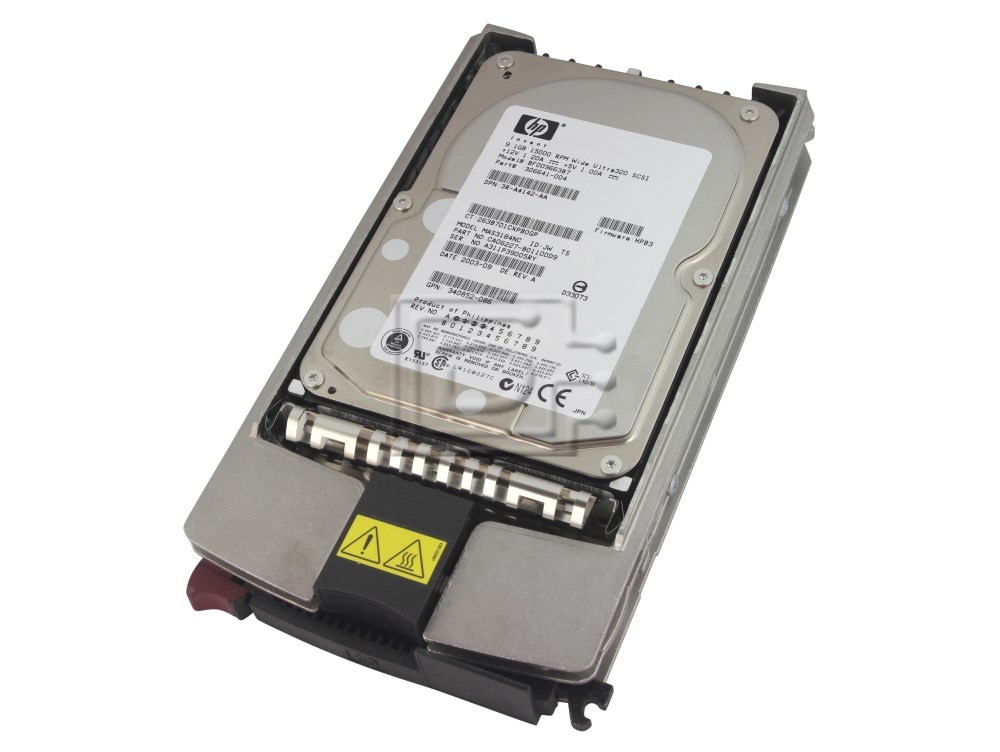

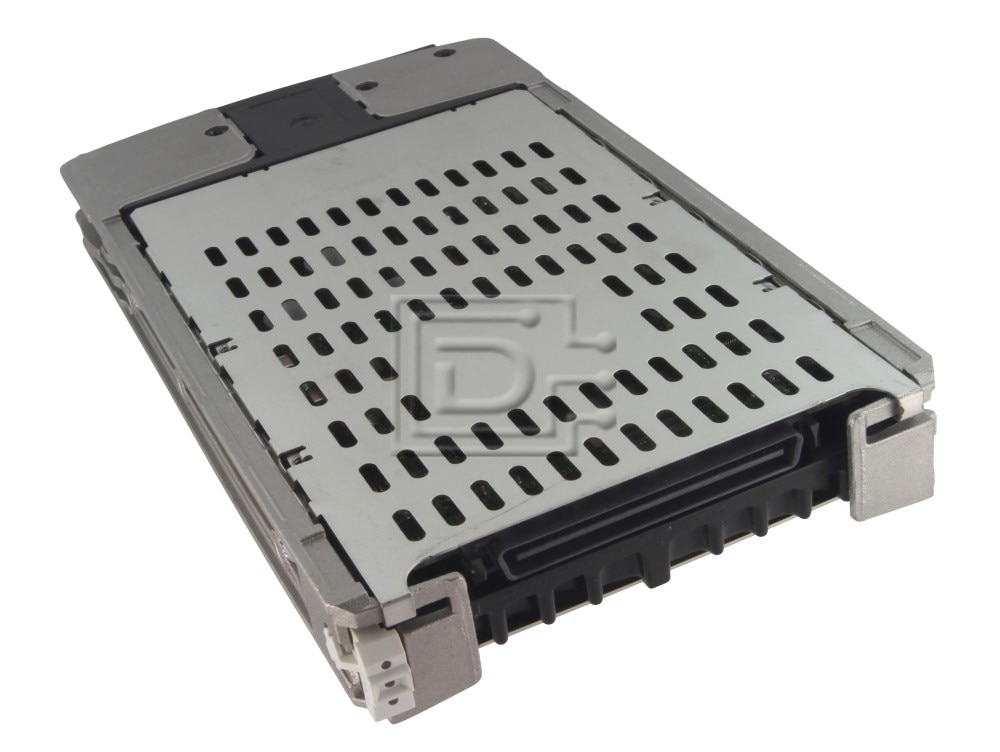

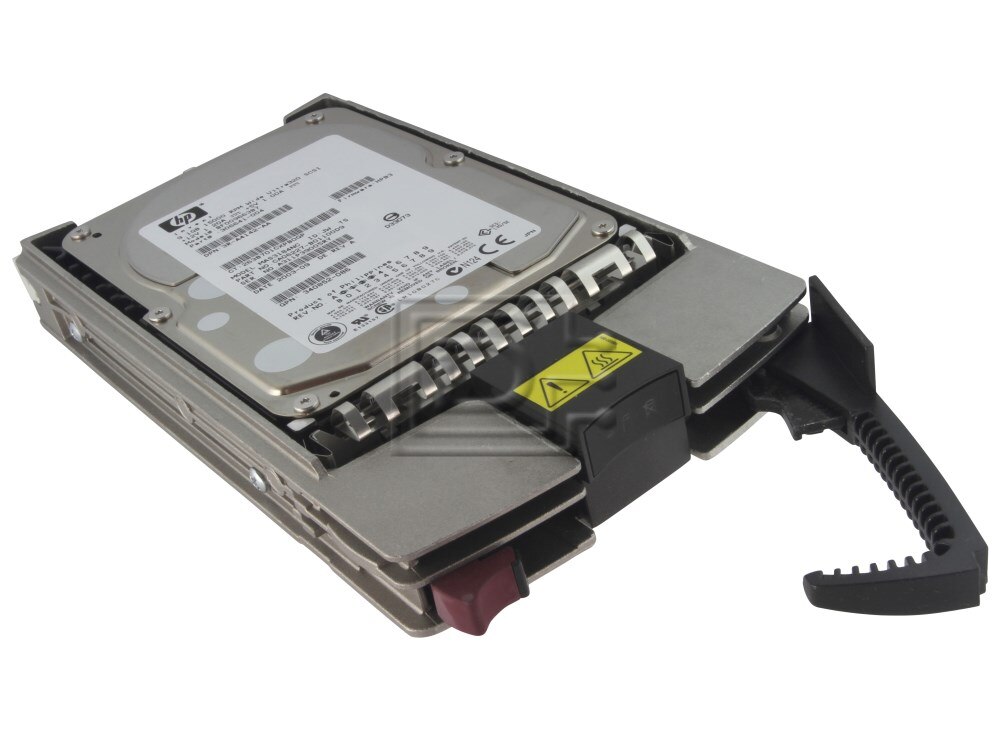

HP / Compaq Original 188120-B22 9GB 15K U320 80pin SCA SCSI Hard Drive - Brand New
These drives are ideal for the most demanding high-bandwidth and high-capacity enterprise server applications. The Ultra320 interface includes features such as packetization and quick arbitrate and select, which greatly increase data throughput.
HP Part # 188120-B22 / 306641-004
Compatibility:
| Proliant 1850R | Proliant 1850R 6/550 | Proliant 6000 Series | |
| Proliant 6400R Series | Proliant BL20p (1P Model) | Proliant BL20p G2 (1P Model) | Proliant BL20p G2 (2P Model) |
| Proliant BL20p G3 (1P and 2P Models) | Proliant BL25p (1P Models) | Proliant BL25p (2P Models) | Proliant BL25p G2 |
| Proliant BL40p (1P Model) | Proliant BL40p (2P Model) | Proliant BL45p | Proliant CL1850 |
| Proliant CL380 | Proliant DL360 | Proliant DL360 G2 | Proliant DL360 G3 |
| Proliant DL380 | Proliant DL380 G2 | Proliant DL380 G3 | Proliant DL560 |
| Proliant DL580 | Proliant DL580 G2 | Proliant DL585 | Proliant DL590/64 |
| Proliant DL740 | Proliant DL760 | Proliant DL760 G2 | Proliant ML310 |
| Proliant ML330 G3 | Proliant ML350 G2 | Proliant ML350 G3 | Proliant ML350 G4 |
| Proliant ML370 | Proliant ML370 G2 | Proliant ML370 G3 | Proliant ML530 |
| Proliant ML530 G2 | Proliant ML570 G2 | Proliant ML750 | StorageWorks NAS b2000 v1 Series |
| StorageWorks NAS b2000 v2 Series | StorageWorks StorageWorks NAS b2000 v1 Series | StorageWorks StorageWorks NAS b2000 v2 Series | Proliant xw25p Blade Workstation |
| Proliant 8000 | Proliant ML310 G2 | Proliant ML310 G3 | Proliant ML350 G4p |
| Proliant DL360 G4 | Proliant DL360 G4p | Proliant DL380 G4 | Proliant DL385 |
| Proliant DL580 G3 | Proliant ML370 G4 | Proliant ML570 | Proliant ML570 G3 |
| Proliant ML570 G4 |
| Description | MAS3735 | MAS3367 | MAS3184 | ||
| Functional Specifications | |||||
| Capacity (formatted) | 73.5 GB | 36.7 GB | 18.4 GB | ||
| Disks/heads | 4/8 | 2/4 | 1/2 | ||
| Disk media diameter | 2.75 in. | ||||
| Bytes/sector | 512 | ||||
| Cylinders | 27,100 | ||||
| Logical blocks | 143,552,136 | 71,819,496 | 35,890,512 | ||
| Recording density | 580,000 BPI | ||||
| Track density | 60,000 TPI | ||||
| Buffer size | 8192 KB | ||||
| Interfaces | Ultra320 SCSI (68 or 80 pin) and 2 GB/s Fibre Channel | Ultra320 SCSI (68 or 80 pin) | |||
| Seek time | Track to track | Read: 0.3 ms (typ) / Write: 0.5 ms (typ) | |||
| Average | Read: 3.3 ms (typ) / Write: 3.8 ms (typ) | ||||
| Full stroke | Read: 8.0 ms (typ) / Write: 9.0 ms (typ) | ||||
| Data transfer rate | To/from media | 93.1 to 118.2 MB/s | |||
| To/from host | Ultra320 SCSI - 320 MB/s (max.) / Fibre Channel - 212.5 Mb/s (max.) | Ultra320 SCSI - 320 MB/s (max.) | |||
| Start time | 30 s (typ) | ||||
| Stop time | 30 s (typ) | ||||
| Rotational speed (RPM) | 15,000 | ||||
| Average latency | 2.00 ms | ||||
| Power consumption, idle | SCSI | 11.3 W | 8.5 W | 7.5 W | |
| FC | 13.0 W | 10.2 W | N/A | ||
| Spindle motor | FDB (Fluid Dynamic Bearings) | ||||
| Physical Specifications | |||||
| Power requirements | Idle (ready) | 11.3 W (typ) | 8.5 W (typ) | 7.5 W (typ) | |
| Spin-up | 12V @ 2.5 A 5V @ 0.85 A | ||||
| Dimensions | Height | 25.4 mm (1.0 in.) | |||
| Width | 101.6 mm (4.0 in.) | ||||
| Depth | 146.0 mm (5.75 in.) | ||||
| Weight | 0.80 kg (1.76 lb.) | ||||
| Drive temperature | Operating | 5°C to 55°C | |||
| Non-operating | -40°C to 70°C | ||||
| Gradient | 15°C/H max | ||||
| Relative humidity | Operating | 5% to 95% (non-condensing) | |||
| Non-operating | 5% to 95% (non-condensing, with packaging) | ||||
| Vibration | Operating | 1.0 G (20 to 300 Hz) | |||
| Non-operating | 5.0 G (20 to 300 Hz) | ||||
| Shock | Operating | 65 G (half-sine pulse, 2 ms duration) Rotational - 25,000 rad/sec2. @ 2 ms. | |||
| Non-operating | 250 G (half-sine pulse, 2 ms duration) | ||||
| Altitude | Operating | -984 to 9,843 ft. | |||
| Non-operating | -984 to 39,370 ft. | ||||
| Acoustics | Idle | < 3.6 bels | |||
| Reliability Specifications | |||||
| MTBF | 1,200,000 hours | ||||
| MTTR | No field repairable parts, return to factory for repair. | ||||
| Start/stop cycles | 20,000 cycles | ||||
| Error Rate | Seek error | 10 per 108 seeks | |||
| Non-recoverable read error | 1 per 1015 bits read | ||||
Click here to view the manufacturer's item description/brochure
