HP 286716-B22 SCSI Hard Drives

HEWLETT PACKARD 286716-B22 BD14687B52 356910-002 289044-001 FE-23027-01 BD14685A26 286712-006 286716-B21 SCSI Hard Drives Image 1 imageHEWLETT PACKARD 286716-B22 BD14687B52 356910-002 289044-001 FE-23027-01 BD14685A26 286712-006 286716-B21 SCSI Hard Drives Image 2 imageHEWLETT PACKARD 286716-B22 BD14687B52 356910-002 289044-001 FE-23027-01 BD14685A26 286712-006 286716-B21 SCSI Hard Drives Image 3 imageHEWLETT PACKARD 286716-B22 BD14687B52 356910-002 289044-001 FE-23027-01 BD14685A26 286712-006 286716-B21 SCSI Hard Drives Image 4 image
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$27.00

Capacity:146GB
Speed:10K RPM
Interface Types:SCSI 80pin SCA-2 Hot-Swap
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SCSI LVD U320 - 320MBps 16-bit
RAM:8MB
Click to see more 146GB SCSI 80pin SCA-2 Hot-Swap 10K RPM Drives

Description

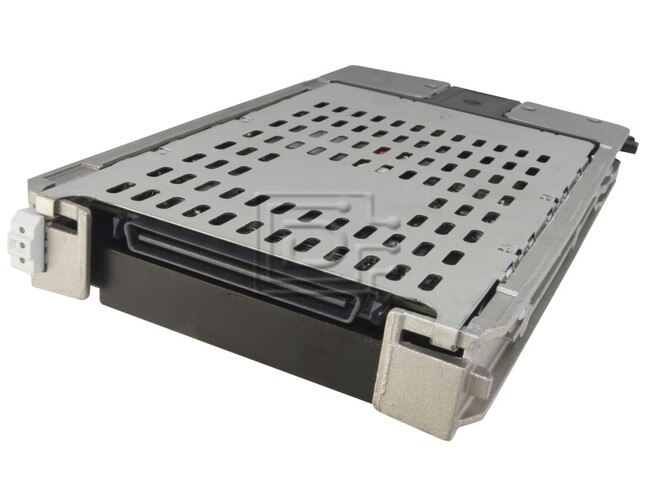

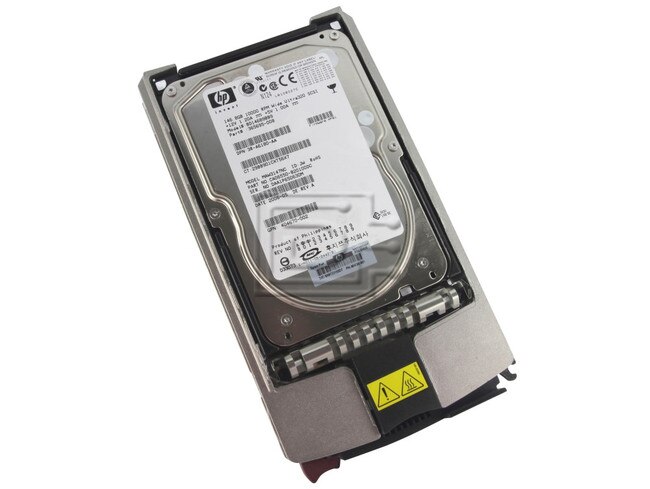

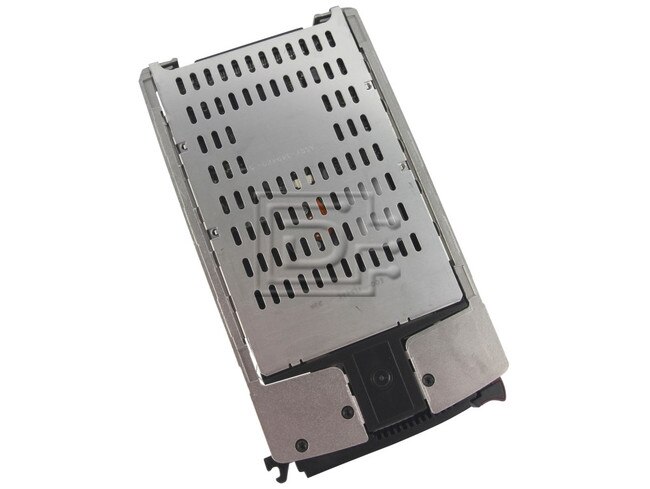

HP / Compaq Original 286716-B22 146GB 10K U320 80pin SCA SCSI Hard Drive - Refurbished

These drives are ideal for the most demanding high-bandwidth and high-capacity enterprise server applications. The Ultra320 interface includes features such as packetization and quick arbitrate and select, which greatly increase data throughput.

HP Part # 286716-B22 BD14687B52 356910-002 289044-001 FE-23027-01 BD14685A26 286712-006

Compatibility

Proliant 1850RProliant 1850R 6/550Proliant 6000 Series
Proliant 6400R SeriesProliant BL20p (1P Model)Proliant BL20p G2 (1P Model)Proliant BL20p G2 (2P Model)
Proliant BL20p G3 (1P and 2P Models)Proliant BL25p (1P Models)Proliant BL25p (2P Models)Proliant BL25p G2
Proliant BL40p (1P Model)Proliant BL40p (2P Model)Proliant BL45pProliant CL1850
Proliant CL380Proliant DL360Proliant DL360 G2Proliant DL360 G3
Proliant DL380Proliant DL380 G2Proliant DL380 G3Proliant DL560
Proliant DL580Proliant DL580 G2Proliant DL585Proliant DL590/64
Proliant DL740Proliant DL760Proliant DL760 G2Proliant ML310
Proliant ML330 G3Proliant ML350 G2Proliant ML350 G3Proliant ML350 G4
Proliant ML370Proliant ML370 G2Proliant ML370 G3Proliant ML530
Proliant ML530 G2Proliant ML570 G2Proliant ML750StorageWorks NAS b2000 v1 Series
StorageWorks NAS b2000 v2 SeriesStorageWorks StorageWorks NAS b2000 v1 SeriesStorageWorks StorageWorks NAS b2000 v2 SeriesProliant xw25p Blade Workstation
Proliant 8000Proliant ML310 G2Proliant ML310 G3Proliant ML350 G4p
Proliant DL360 G4Proliant DL360 G4pProliant DL380 G4Proliant DL385
Proliant DL580 G3Proliant ML370 G4Proliant ML570Proliant ML570 G3
Proliant ML570 G4

Specifications

  • Hard Drive Capacity: 146.8GB
  • Generation: Ultra320
  • Data Transfer Rate: 320 MB/sec
  • Rotational Speed: 10,000 rpm
  • Form Factor (Drive): 3.5-inch low profile
  • Interface: Wide Ultra 320 SCSI; LVD
  • Data Storage Device Type: SAS (Server Attached Storage) device
  • Hard Drive Device Type: Hard drive for server/storage unit (Hot-plug)
  • Height: 1 inch
  • Pin Configuration: 80 pin Hot Swappable/ Pluggable
  • Hotswap Tray: Included (Attached)
Click here to view the manufacturer's item description/brochure

Alternate MPNs: BD14687B52 356910-002 289044-001 FE-23027-01 BD14685A26 286712-006 286716-B21

Weight: 2.5 lb

Warranty: 1 Year DiscTech

Condition

Refurbished

Warranty

1 Year DiscTech Warranty
