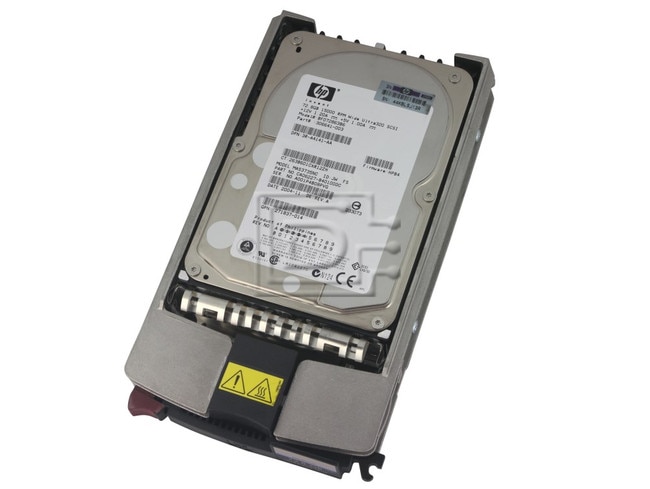

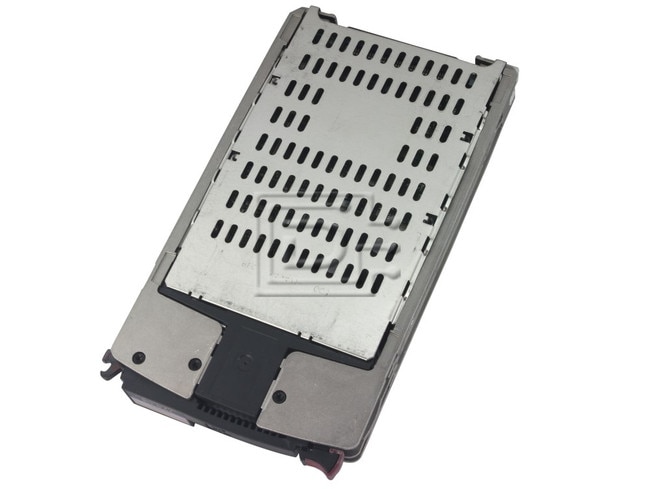

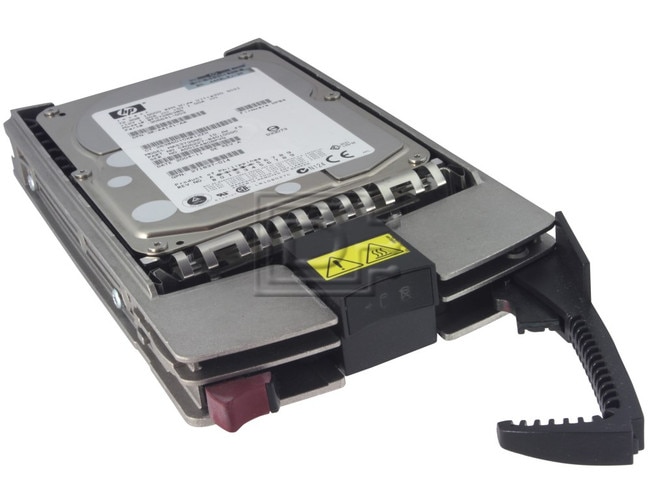

HP 289243-001 73GB SCSI Hard Drive Kit

HEWLETT PACKARD Part #/MPN: 289243-001

DiscTech Item #: HPI-289243-001-RF-OE

$19.00
  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

Back
$19.00

Capacity: 73GB

Speed: 15,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 3.8/8

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

HP / Compaq Original 289243-001 73GB 15,000 RPM Ultra320 80pin Hot Swap SCSI Hard Drive Kit - Refurbished

These drives are ideal for the most demanding high-bandwidth and high-capacity enterprise server applications. The Ultra320 interface includes features such as packetization and quick arbitrate and select, which greatly increase data throughput.

Option Part Number: 286778-B22

Alt Part Numbers: 404713-001, 271837-014, BF07285A36

Compatible with HP/Compaq Proliant servers:CL-1850 BL20p G2 G3, BL25p, BL40p, BL45p, BL60p, DL360 G3 G4, DL380 G3 G4, DL560, DL580 G2 G3, DL585, DL740, DL760 G2, ML310 G2 G3, ML330 G3, ML350 G3 G4 G4p, ML370 G3 G4, ML570 G2 G3, ML-750, PL-8000, PL-8500, 1600, 1850, 3000, 5500, 8000, 8500 Model Servers. In addition to 4100, 4300, 4314R, 4314T, 4354R SCSI RAID Arrays.

Compatibility:

Proliant CL1850Proliant BL20p G2Proliant BL20p G3Prolaint BL25p
Proliant BL40pProliant BL45pProliant BL60pProliant DL360 G3
Proliant DL360 G4Proliant DL380 G3Proliant DL380 G4Prolaint DL560
Prolaint DL580 G2Prolaint DL580 G3Prolaint DL585Prolaint DL740 G2
Prolaint ML310 G2Prolaint ML310 G3Prolaint ML330 G3Prolaint ML350 G3
Prolaint ML350 G4Prolaint ML350 G4pProlaint ML370 G3Prolaint ML370 G4
Prolaint ML-750Prolaint PL-8000Prolaint PL-8500Prolaint 1600
Prolaint 1850Prolaint 3000Prolaint 5500Prolaint 8000
Prolaint 8500RAID Array 4100RAID Array 4300RAID Array 4314R
RAID Array 4314TRAID Array 4354RAlphaServer DS10AlphaServer DS20L
AlphaServer DS25AlphaServer ES40AlphaServer ES45 Model 2BAlphaServer ES47
AlphaServer ES80AlphaServer GS1280AlphaServer GS1280 Model 16AlphaServer GS1280 Model 32
AlphaServer GS160AlphaServer GS320AlphaServer GS80AlphaStation DS20E
AlphaStation DS25

Ultra320
Model/Part No.289243-001
General
Device TypeHard Drive - Hot-Swap / Pluggable
Capacity73GB (72.8 GB)
Form Factor3.5" x 1/3H
InterfaceUltra320 SCSI
Width4 in
Height1 in
Performance
Drive Transfer Rate320 MBps (External)
Seek Time
  • 3.8 ms (Average)
  • 8 ms (Max)
    • Track-to-Track Seek Time0.4 ms
    Spindle Speed15000 RPM
    Expansion & Connectivity
    Interfaces1 x Ultra320 SCSI
    Compatible Bays1 x Hot-Swap / Pluggable - 3.5" x 1/3H
    Environmental Parameters
    Min Operating Temperature50°F
    Max Operating Temperature95°F
    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: 286778-B22 404713-001 271837-014 BF07285A36

    Weight: 2.5 lb

    Warranty: 1 Year DiscTech
