HP 436811-001 LVD U320 SCSI RAID Controller

(0) No Reviews Yet

HEWLETT PACKARD Part #/MPN: 436811-001

DiscTech Item #: HPI-436811-001-NP-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SCSI 68pin HD68 Female, SCSI VHDCI, PCI

Form Factor: Half-Height/Half-Length

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 64MB

Voltage: 3.3V

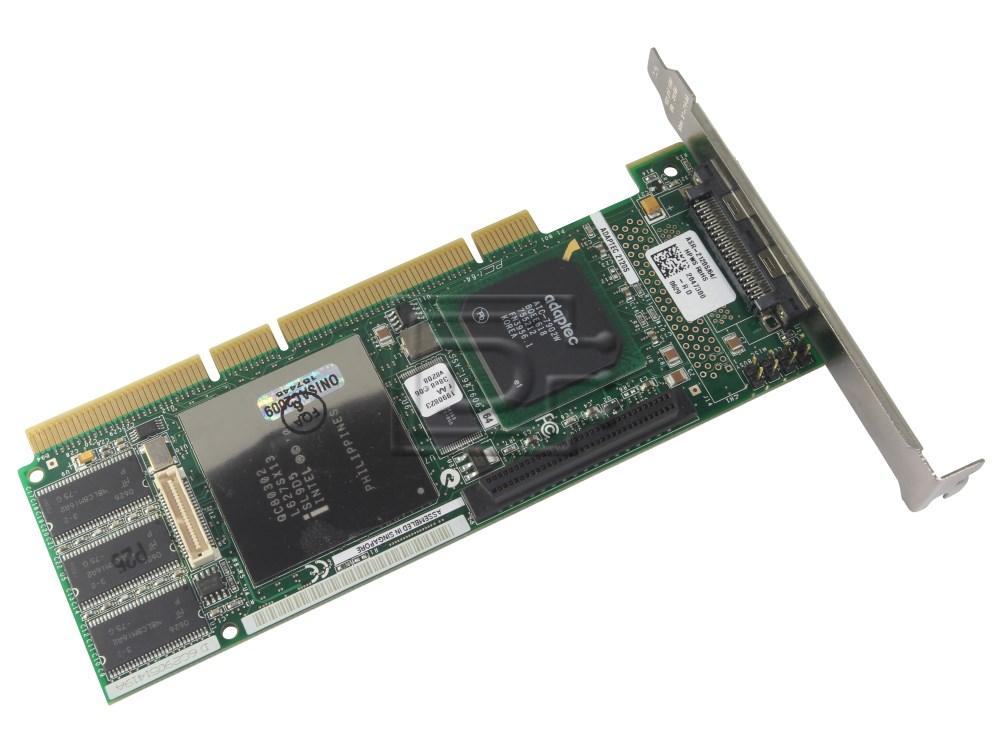

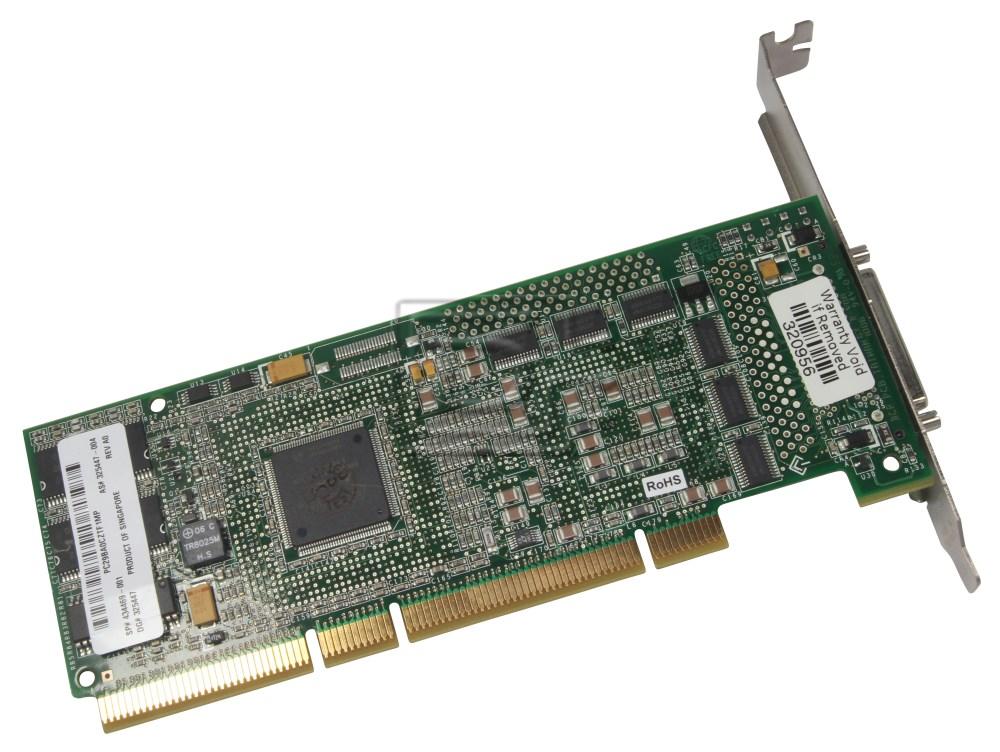

HP 436811-001 U320 LVD SCSI RAID Controller - New Pull

Low-profile single-channel Adaptec SCSI RAID 2120S is a 64-bit/66MHz Ultra320 RAID controller designed for entry-level and high-density servers. Advanced features include Adaptec's optimized disk utilization, Online Capacity Expansion, RAID Level Migration and full OS support. Adaptec Storage Manager provides password-protected, remotely managed software management. The card supports RAID 0, 1, 10, 5, 50, JBOD and accommodates an optionally available battery backup module (ABM-300) for 72-hour cache memory protection.

ALT/PN: 2120S / ASR2120S / FW8208 / 434469-001

Product Description
 1-channel, 64/66 MHz, low-profile MD2 form factor card for high-density servers
Customer Needs
 Ideal for entry-level and high-density servers and workstations requiring up to 15 disk drives
System Environment
 Entry-level SCSI servers and workstations, pedestal and rackmount
 Low-profile MD2 design ideal high-density server solution, 64-bit/66 MHz PCI
Key Differentiators
  • Optimized Disk Utilization
  • RAID Level Migration
  • Online capacity expansion
  • Background initialization (for immediate RAID availability)
  • S.M.A.R.T. and SAF-TE support
  • Hot-swap disk drive support for easy replacement
  • Hot-spare disk support with automatic rebuild
  • Supports bootable arrays
  • Data Transfer Rate
     Up to 320 MB/sec

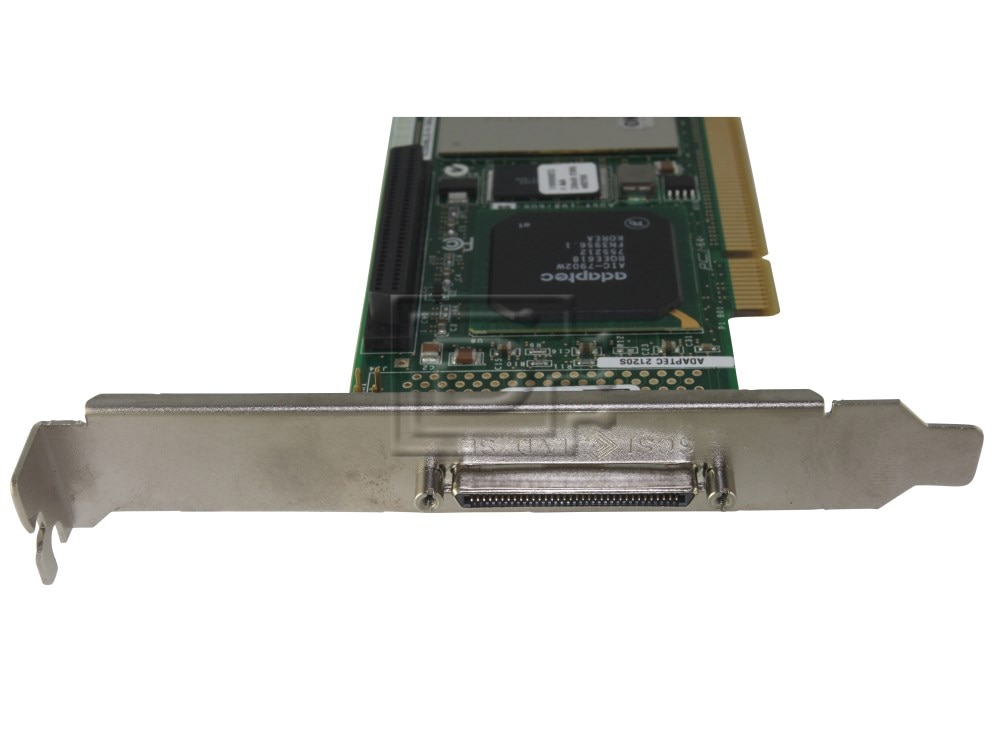

    External Connectors
     One 68-pin VHDCI
    Internal Connectors
     One 68-pin high-density
    Bus Type
     64-bit/66MHz PCI
    System Requirements
     Available 5 volt or 3.3 volt, PCI 2.2complaint PCI slot
     Optional battery backup (ABM-300)
    Device Support
     Up to 15 SCSI devices
    RAID levels
     0, 1, 10, 5, 50, JBOD
    Cache Memory
     64 MByte (onboard)
    Key RAID Features
     Optimized disk utilization

    Online RAID Level Migration

    Online capacity expansion

    Immediate RAID availability (background initialization)

    S.M.A.R.T. support

    SES/SAF-TE support
    Board Dimensions
     Low-profile card: 2.5 in. H x 6.6 in. L

    6.4 cm H x 16.8 cm L
    Power Consumption
     4 amps @ +5V
    Operating Temperature
     0 C to 55 C
    Supported Operating Systems
     Microsoft Windows 2000 Advanced Server

    Microsoft Windows 2000 Server

    Microsoft Windows 2000 Professional

    Microsoft Windows XP Home Edition

    Microsoft Windows XP Professional

    Microsoft Windows NT4 Workstation

    Microsoft Windows NT4 Server

    MIcrosoft Windows NT4 Advanced Server

    Microsoft Windows Server 2003 (formerly Windows .NET)

    Novell NetWare 5.1

    Novell NetWare 6

    Redhat Linux 7.2

    Redhat Linux 7.3

    SuSE 7.3

    SuSE 8.0

    SCO Openserver 5.06

    SCO Openserver 5.07

    SCO UnixWare 7.11

    Caldera Open Unix 8

    Click here to view the manufacturer's item description/brochure

    Alternate MPNs: ASR2120S FW8208 434469-001

    Weight: 2 lb

    Warranty: 1 Year DiscTech

    New Pull

    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
