HEWLETT PACKARD Part #/MPN: 727250-B21
DiscTech Item #: HPI-727250-B21-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI, SATA
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
HPE 727250-B21 / 761879-001 12Gb SAS Expander Card with Cables for DL380 Gen9 - Brand New
HPE 727250-B21 / 761879-001 12Gb SAS / Serial Attached SCSI Expander Card with Cables for DL380 Gen9 - Brand New

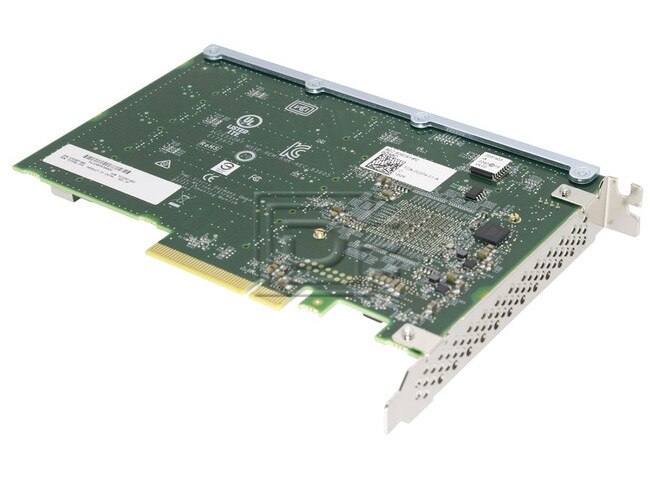

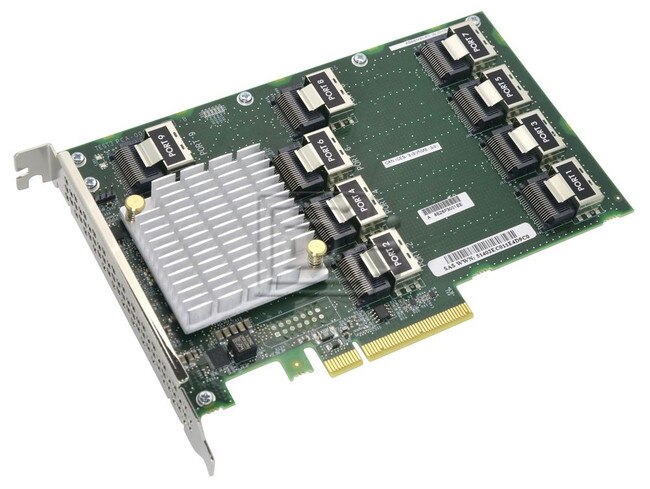

The HPE 12G SAS Expander Card provides internal storage expansion within the HPE ProLiant Gen9 and Gen10 Server by allowing support for up to 28 drives when connected to a Gen10 or Gen9 supported Smart Array or Smart HBA controller. This full height card supports 12Gb/s SAS connectivity and is ideal for users who want to add additional internal storage to maximize their storage capacity.
Kit contents
- HPE 12G SAS Expander card

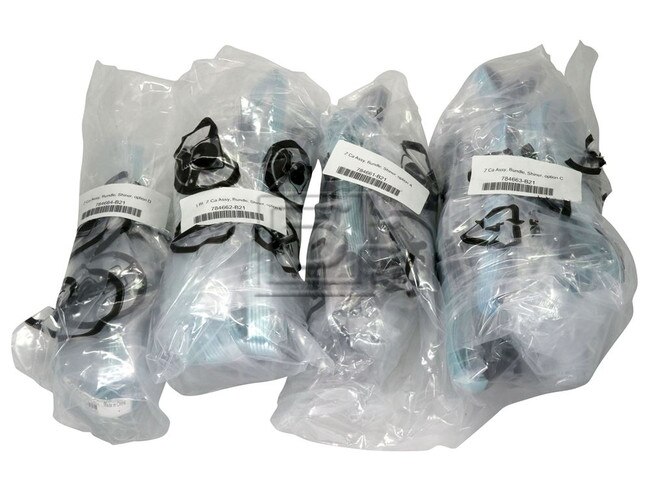

- All the cables required for specified server will be included in the kit
Key Features
- Storage interface (SAS/SATA)
- 28 physical links across 9 x4 internal ports
- 12Gb/s SAS, 6Gb/s SATA technology
- Mix-and-match SAS and SATA hard drives to the same controller
- Supports up to 28 internal drive bays (dependent on the server)
- Up to 64 logical drives when connected to a Smart Array Controller
Ports
- 2 x4 Mini-SAS ports for attachment to Smart Array controllers or Smart HBAs
- 7 x4 Mini-SAS ports for attachment to server drive backplanes
- Supports up to 28 drives (dependent on server)
Performance
- 12Gb/s SAS (1200 MB/s theoretical bandwidth per SAS lane)
- 6Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
- PCI Express 3.0 x8 link width
Dimensions
- 6.6 x 4.4 x 0.6 in (16.8 x 11.13 x 1.5 cm) PCIe full-height, half-length card
Server Support
- HPE ProLiant DL380 Gen9
- HPE ProLiant DL560 Gen9
- HPE ProLiant ML350 Gen9
- HPE ProLiant DL380 Gen10
- HPE ProLiant DL560 Gen10
Operating Systems
- Please reference smart array QuickSpecs along with ProLiant Gen10 or Gen9 server for Operating Systems support.
Compatibility:
This drive is compatible with:
ProLiant DL380 Gen9 | ProLiant DL560 Gen9 | ProLiant ML350 Gen9 |
ProLiant DL380 Gen10 | ProLiant DL560 Gen10 |
HPE SAS Expander Card Storage Controller Upgrade Card | |
---|---|
Part Number | 727250-B21 |
Part Number | 761879-001 |
Technical Specifications | |
Dimensions & Weight | Depth |
Product Type | Storage controller upgrade card |
Compatible With | |
Interface Provided | Qty |
Power Device | Type |
Storage Controller | Channel Qty |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 761879-001
Weight: 2.5 lb
