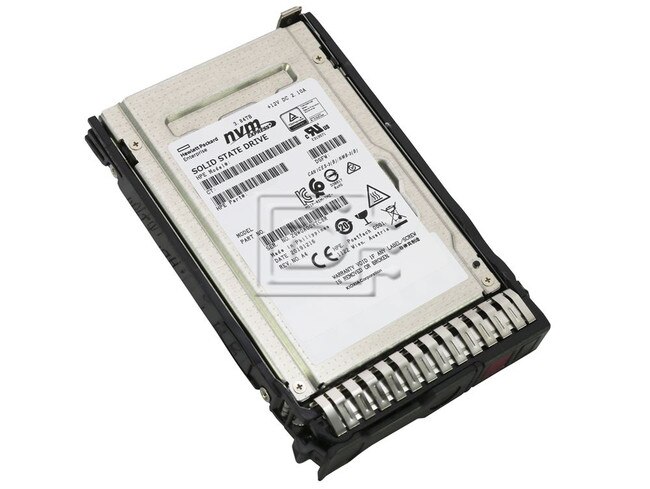

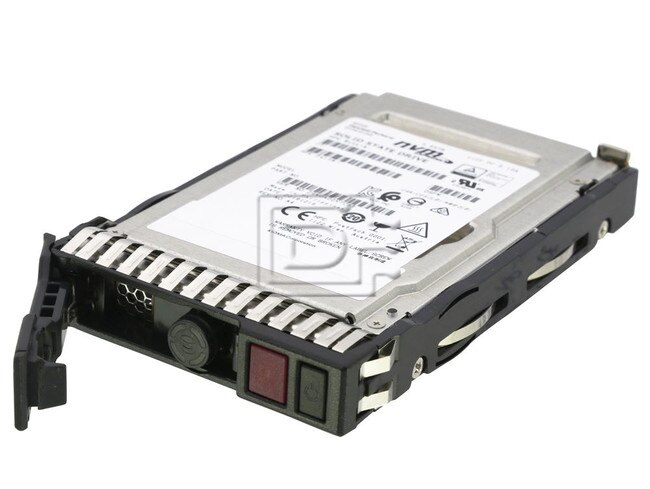

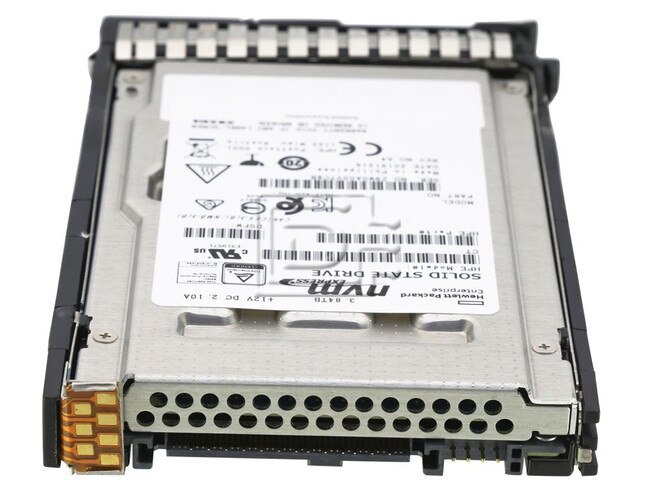

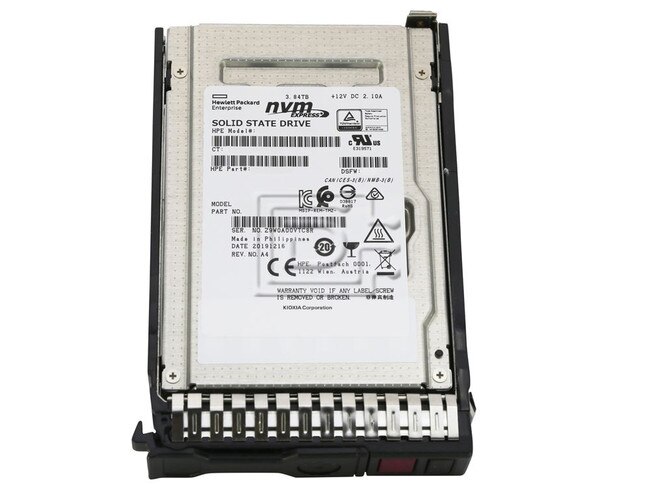

HPE P10654-001 3.84TB SSD 2.5" SFF RI SCN DS NVMe U.2 PCIe SSD

HEWLETT PACKARD Part #/MPN: P10654-001

DiscTech Item #: HPI-P10654-001-NP-OE


$479.00
$479.00

Enterprise Grade

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: NVMe U.2, PCIe

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Electrical Interface: PCIe - v3.0 - 16GBps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Read Intensive

Compatible Systems: HP 10th Gen. G10

HPE P10654-001 3.84TB / 4TB SSD 2.5-Inch SFF TLC RI DS NVMe PCIe U.2 with 727695-001 (SCN) - SSD Kit for Gen 10 HP Servers - New Pull

HPE P10654-001 3.84TB 2.5" SFF / Small Form Factor /  Smart Carrier RI / Read Intensive DS / Digitally Signed NVMe PCIe U.2 / NVM Express PCI Express SSD / Solid State Drive For Gen 10 HP Servers - New Pull

Includes:

(1) 3.84TB RI NVME U.2 SSD

(1) 727695-001 Smart Carrier NVMe (SCN)

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results

  • HPE NVMe Mainstream Performance Read Intensive U.2 Solid State Drives are ideal for Big Data analytics, cloud computing, high performance compute, business intelligence, database applications, and virtualization.
  • Achieve higher IOPS to enhance the performance of your data center.

  • Maintain data accuracy with full data-path error detection.
  • Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.

High Performance, High Resiliency, and Backwards Compatibility

  • HPE NVMe Mainstream Performance Read Intensive U.2 Solid State Drives deliver higher performance for server-storage solutions to better meet the challenges within high performance workloads.
  • HPE NVMe U.2 PCIe SSDs are backwards compatible with NVMe U.2 SSD backplanes only.
  • Hewlett Packard Enterprise Solid State Drives are rigorously tested 3.35 million hours in various environments to achieve the quality standards you need.

HPE Solid State Drives (SSDs)
Excellent solid state storage performance for HPE ProLiant and HPE Synergy servers

It is estimated that 2.5 exabytes (a billion gigabytes) of data are created every day. To tap the potential of Big Data, applications must read and write more data, faster than ever. HPE Solid State Drives help you access data faster by providing exceptional performance, extended endurance, and consistently low latency—all while using less power.

And with current transitions in the Hard Disk Drive (HDD) industry, many customers are now experiencing the great performance of SSDs at competitive pricing, especially for capacities under 1 TB.

Peak performance for random data applications
HPE SSDs are suited to enterprise environments with highly random data under a variety of write-workload applications. The SSDs provide significantly better random read and write I/O operations per second (IOPS) compared to HDDs. While sequential read and write throughput is also improved over HDDs, the greatest benefit is recognized in random data applications. As a result, these high-performance, low-latency, and low-power SSDs provide significant system benefits for applications that previously over-provisioned HDD capacity to achieve better performance.

Enterprise features for data center applications
HPE Solid State Drives have the key features you need in your data center—full data path error detection, surprise power loss protection, and HPE SmartSSD Wear Gauge support. We enable the SmartSSD Wear Gauge through the HPE Smart Carrier. With the SmartSSD Wear Gauge utility, HPE SSDs monitor the amount of data written and report when the device may be nearing its maximum supported lifetime.

Targeted at extreme operating environments or local storage, these drives provide higher I/O throughput, excellent latency, reduced power consumption, enhanced reliability, and faster reads and writes when compared to traditional rotating media. They remove the latency found in conventional rotating HDDs caused by seek time for each read operation, so they deliver high random read performance. Most of these SSDs are available as small form factor (SFF), large form factor (LFF), quick release carriers, or non-hot plug (NHP) for general use across the HPE ProLiant Server portfolio. The drives are fully qualified and fit seamlessly into the existing HPE server infrastructure.

With no moving parts, more reliability, and greater power savings than traditional rotating media drives, SSDs are finding new applications in the Big Data era.

Compatible with your server environment
HPE SSDs are fully tested and qualified to enable compatibility with HPE ProLiant, HPE Synergy, and HPE BladeSystem solutions. The HPE Qualified Option designation places HPE SSDs among the best of the best compared to products available on the open market. It is important to note that SSDs on the open market—even those with similar vendor model numbers—may not have the same level of performance, endurance, and quality as HPE Qualified Options. For example, the NAND or even the controller in non-qualified products may be different from an HPE Qualified Option. HPE firmware optimizes our qualified SSD performance, wear leveling, and over-provisioning.

The right SSD for every application
HPE SSDs are available in three broad categories based on their typical target workloads: Read Intensive, Mixed Use, and Write Intensive. The HPE SSDs categories include both SAS SSDs and also SATA SSDs.

The categories indicate the number of drive writes per day (DWPD1 ) that you can expect from the drive. (DWPD is the maximum number of 4K host writes to the entire drive capacity of the SSD per day over a five-year period.)

Read Intensive SSDs are typically the lowest price, with a typical Endurance of <= 1 DWPD. Write Intensive SSDs typically have the highest Write performance, with a typical Endurance of >= 10 DWPD. Mixed Use SSDs are for workloads that need a balance of strong Read and Write performance, with Endurance typically >1 and

HPE Write Intensive Solid State Drives
HPE Write Intensive 12G SAS and 6G SATA SSDs provide high write performance and endurance. They are best suited for mission-critical enterprise environments with workloads high in both reads and writes. Workloads best suited for these WI SSDs include online transaction processing (OLTP), virtual desktop infrastructure (VDI), business intelligence, and Big Data Analytics.




Compatibility:

HPE Gen 10 Servers

Compatibility Includes:



ProLiant DL160 Gen 10ProLiant DL180 Gen 10ProLiant DL325 Gen 10ProLiant DL350 Gen 10
ProLiant DL360 Gen 10ProLiant DL380 Gen 10ProLiant DL385 Gen 10ProLiant DL560 Gen 10
ProLiant DL580 Gen 10


ProLiant ML350 Gen 10


Synergy 480 Gen 10Synergy 660 Gen 10

HPE Solid State Disk Drives
Standard Model NumbersP10654-001
Short DescriptionHPE 3.84TB NVMe U.2 PCIex4 RI SFF SSD
Specifications
Capacity3.84TB
Drive TYpeSolid State Drive (SSD)
Workload TypeRead Intensive Endurance (RI)
DriveU.2 NVMe PCIe Read Intensive 3.84TB
Interface TypePCI Express NVM Express /PCIe NVMe Gen 3
Length x WidthStandard Small Form Factor (SFF)
Height15mm
Plug TypeHot-Plug
Carrier TypeSmart Carrier NVMe (SCN)
Server Gen SupportedGen 10
Flash TypeTriple-Level Cell (TLC)
Lifetime Writes7000
Logical Blocks512 bytes
Drive Writes Per Day (DWPD)1
Random Read IOPS (4KiB, Q=16)129,000
Random Write  IOPS (4KiB, Q=16)97,000
MAX Random Read IOPS (4KiB)780,000@Q256
MAX Random Write IOPS (4KiB)97,000@Q16
Power12.26W
Platform SupportedMainstream Compute Platforms

ROHS Compliant

Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
