Hitachi 08K0342 SCSI Hard Disk Drive

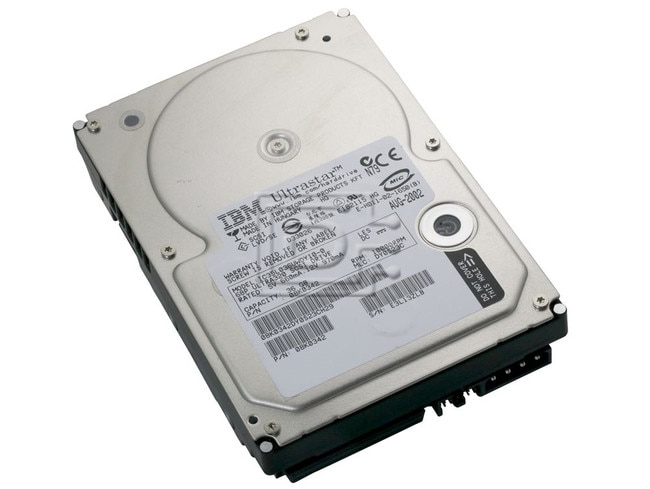

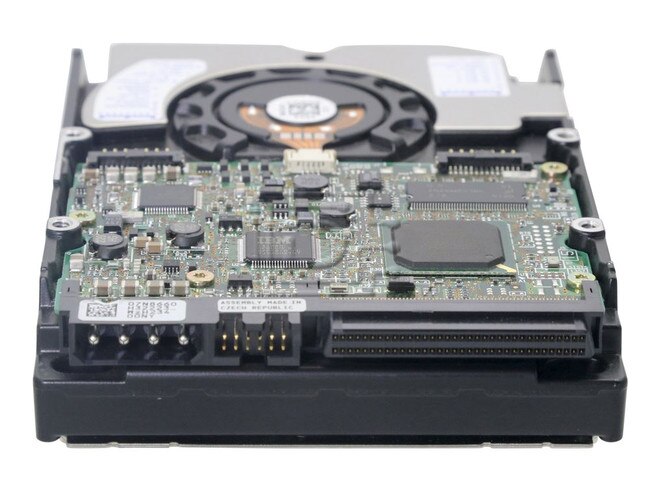

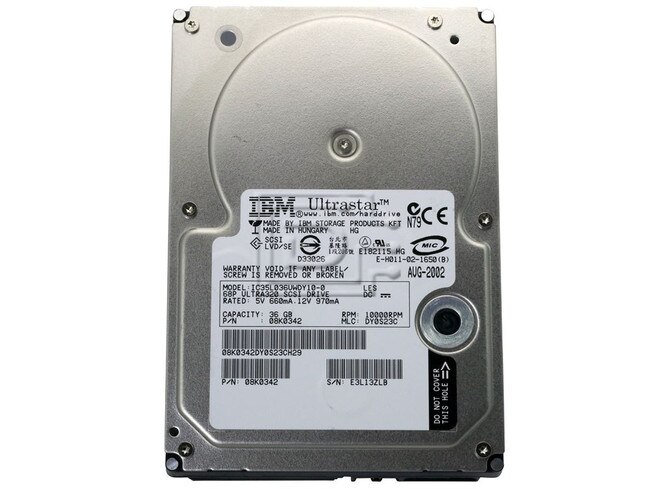

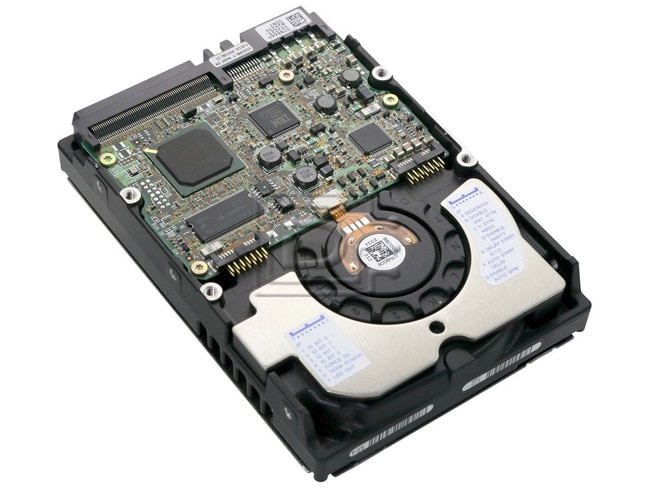

HGST 08K0342 IC35L036UWDY10 SCSI Hard Drives Image 1 imageHGST 08K0342 IC35L036UWDY10 SCSI Hard Drives Image 2 imageHGST 08K0342 IC35L036UWDY10 SCSI Hard Drives Image 3 imageHGST 08K0342 IC35L036UWDY10 SCSI Hard Drives Image 4 image
  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$189.00

Capacity:36GB
Speed:10K RPM
Interface Types:SCSI 68pin HD68
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SCSI LVD U320 - 320MBps 16-bit
RAM:8MB
Click to see more 36GB SCSI 68pin HD68 10K RPM Drives

Description

Hitachi 08K0342 IC35L036UWDY10 36GB 10K U320 68pin SCSI Hard Drive - Refurbished

Model:  IC35L036UWDY10

Hitachi 08K0342 IC35L036UWDY10 36GB 10K U320 68pin SCSI Hard Drive - Refurbished

Model:  IC35L036UWDY10

Specifications

Configuration
InterfaceUltra320 / Ultra160 SCSI FC-AL-2
Capacity (GB)1146.8/73.4/36.7/18.3146.8/73.4/36.7/18.3
Sector size (bytes) 512-528 (variable, 2 byte inc.)512-528 (8 byte inc)
Recording zones1515
Data heads (physical)12/6/3/2 12/6/3/2
Data disks6/3/2/16/3/2/1
Max. areal density (Mbits/sq. inch)26,2633126,263
Max. recording density (BPI)548,000548,000
Track density (TPI)47,90047,900

Performance
Data Buffer8192 KB8192 KB
Rotational speed (rpm)10,00010,000
Latency average (ms)3.003.00
Data transfer rate (max. Mbits/sec)433 - 825433 - 825
Interface transfer rate (max. MB/sec)320200/400
Sustained data rate (MB/sec) 33.8 - 66.733.8 - 66.7

Seek time (read, typical)2
Average (ms)4.74.7
Track to track (ms)0.50.5
Full track (ms)7.2/8.07.2/8.0

Reliability
Error rate (non-recoverable)10 in 10E16 bits read 10 in 10E16 bits read
Start/stops (at 40° C)50K50K

Acoustic
Idle - Typical (Bels)3.7/3.4/3.4/3.43.7/3.4/3.4/3.4
Operating - Typical (Bels)4.5/4.5/4.5/4.54.5/4.5/4.5/4.5

Power
Requirement+5VDC (+-5%), +12 VDC (+-5%)+5VDC (+-5%), +12 VDC (+-5%)
Dissipation
Startup current (max. peak)1.07A (5V), 2.40A (12V)1.12A (5V), 2.40A (12V)
Idle (W)10.2/7.7/7.0/5.9 11.1/8.6/7.9/6.8
Power consumption efficiency index0.07 W/GB , 0.11 W/GB0.08 W/GB , 0.12 W/GB
0.19 W/GB , 0.33 W/GB0.22 W/GB , 0.38 W/GB

Dimensions
Height (mm)25.4 (+-0.4)25.425.4 (+-0.4)
Width (mm)101.6 (+-0.4)101.6 (+-0.4)
Depth (mm)146 (+-0.6)146 (+-0.6)
Weight (max. kg)0.780.78

Environmental characteristics
Operating
Ambient temperature5° to 55° C
Relative humidity (non-condensing)8% to 90%
Max. wet bulb (non-condensing)29.4° C
Shock (half sine wave)10G (11 ms) / 45G (2 ms)
Random Vibration (RMS)0.67G for horizontal
0.56G for vertical

Non-operating
Ambient temperature-40° to 65° C
Relative humidity (non-condensing)5% to 95%
Max. wet bulb (non-condensing35° C
Shock (half sine wave)75G (11 ms) / 225G (2 ms) for 146GB / 300G (2 ms) for 73, 36, and 18GB
Random Vibration (RMS)1.04G

1 GB equals one billion bytes when referring to hard drive capacity; accessible capacity may be less.

2 Excludes command overhead.

Click here to view the manufacturer's item description/brochure

Alternate MPNs: IC35L036UWDY10

Weight: 1.8 lb

Warranty: 1 Year DiscTech
