Hitachi Part #/MPN: 08K0362
DiscTech Item #: HIT-08K0362-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:49Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 146GB
Speed: 10,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 33.8 - 66.7
Average Seek Time: 4.7ms
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

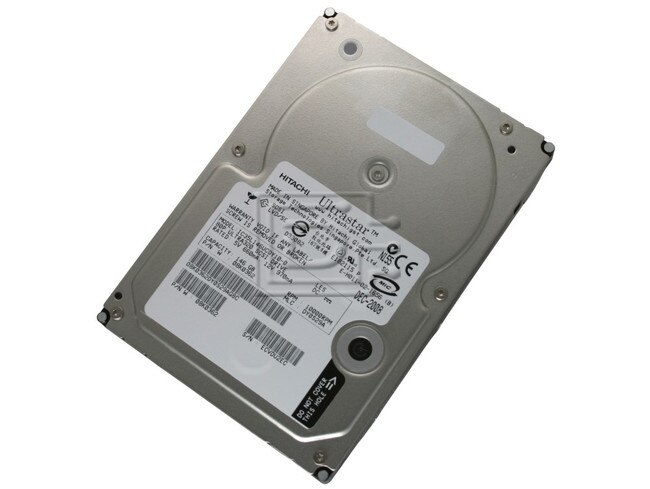

Hitachi Ultrastar 08K0362 / IC35L146UCDY10 146Z10 146GB 10K U320 80pin SCA-2 SCSI Hard Drive - Factory Refurbished
Ready to excel in the most demanding server-class environments
Highlights:
- Rotational speed of 10,000 rpm and average seek times as low as 4.7 ms provide outstanding performance
- Capacities of 146, 73, 36, and 18GB from a single server drive family for unrivaled configuration flexibility and ease of integration
- First ever server-class drive to implement antiferromagnetically-coupled (AFC) media, combined with advanced head/disk design, resulting in high reliability for today's critical server-class environments
- Enhanced servo technology (Rotational Vibration Safeguard) nullifies the effect of rotational vibration in multi-drive cabinets, overcoming an industry hurdle to optimal server performance
Advanced drive technology
Introducing the sixth generation of Ultrastar 10,000 rpm disk drives. The Hitachi Ultrastar 146 Z10 drive family offers high quality and superior performance. These drives feature more powerful processors and read/write channels to excel in server-class environments.
To achieve maximum I/O performance, the drives combine fast seek times, large 8 MB multi-segmented buffers, a sophisticated command queuing algorithm, hardware automation, and superior data rates (825 Mbps). Ultrastar 146 Z10 drives include new servo technology (Rotational Vibration Safeguard "RVS"), employed to counteract the effects of rotational vibration that commonly occur in multi-drive cabinets. They also employ fifth-generation giant magnetoresistive (GMR) head technology to double areal density from previous generation drives (26.3 Gbits/sq. in.) and boost performance. In addition, highly efficient No-ID* sector formatting enables more data to be stored per disk.
Reliability features
The Ultrastar 146 Z10 family of server-class drives is the first of its class to incorporate our storage breakthrough technology antiferromagnetically-coupled (AFC) media. This technology sandwiches a three-atom thick layer of ruthenium, a precious metal, between two magnetic layers on a disk. AFC technology provides greater stability of the recording media, enhancing reliability.
Drive Fitness Test enables drive self-testing and analysis for more robust system management. To help ensure data protection, Hitachi Ultrastar drives include exclusive reporting tools, such as Predictive Failure Analysis* (to signal potential drive problems) and Drive-TIP* (to monitor the drive temperature and avoid malfunctions).
In addition, load/unload technology and glass substrate disks increase reliability of Ultrastar drives by providing a more robust solution at high rotational speeds.
Outstanding environmentals
Hitachi Ultrastar drives provide extremely quiet operation. The tri-laminate drive cover reduces both idle and seek acoustics while an enhanced spindle motor driver enables smoother commutation for less noise. Moreover, the Ultrastar 146Z10 delivers an outstanding power efficient design.
Support for advanced applications and interfaces
Hitachi Ultrastar drives provide high data throughput for data-intensive applications with a choice of 2 Gbit Fibre Channel and Ultra320 SCSI (backward-compatible) interfaces. The Ultra320 SCSI adds greater speed, reduced overhead, improved diagnostic capabilities and data protection.
Compatibility:
This drive is compatible with any of our SCSI hotswap trays/caddies.
| Configuration | ||
| Interface | Ultra320 / Ultra160 SCSI | FC-AL-2 |
| Capacity (GB)1 | 146.8/73.4/36.7/18.3 | 146.8/73.4/36.7/18.3 |
| Sector size (bytes) | 512-528 (variable, 2 byte inc.) | 512-528 (8 byte inc) |
| Recording zones | 15 | 15 |
| Data heads (physical) | 12/6/3/2 | 12/6/3/2 |
| Data disks | 6/3/2/1 | 6/3/2/1 |
| Max. areal density (Mbits/sq. inch) | 26,263 | 3126,263 |
| Max. recording density (BPI) | 548,000 | 548,000 |
| Track density (TPI) | 47,900 | 47,900 |
| Performance | ||
| Data Buffer | 8192 KB | 8192 KB |
| Rotational speed (rpm) | 10,000 | 10,000 |
| Latency average (ms) | 3.00 | 3.00 |
| Data transfer rate (max. Mbits/sec) | 433 - 825 | 433 - 825 |
| Interface transfer rate (max. MB/sec) | 320 | 200/400 |
| Sustained data rate (MB/sec) | 33.8 - 66.7 | 33.8 - 66.7 |
| Seek time (read, typical)2 | ||
| Average (ms) | 4.7 | 4.7 |
| Track to track (ms) | 0.5 | 0.5 |
| Full track (ms) | 7.2/8.0 | 7.2/8.0 |
| Reliability | ||
| Error rate (non-recoverable) | 10 in 10E16 bits read | 10 in 10E16 bits read |
| Start/stops (at 40° C) | 50K | 50K |
| Acoustic | ||
| Idle - Typical (Bels) | 3.7/3.4/3.4/3.4 | 3.7/3.4/3.4/3.4 |
| Operating - Typical (Bels) | 4.5/4.5/4.5/4.5 | 4.5/4.5/4.5/4.5 |
| Power | ||
| Requirement | +5VDC (+-5%), +12 VDC (+-5%) | +5VDC (+-5%), +12 VDC (+-5%) |
| Dissipation | ||
| Startup current (max. peak) | 1.07A (5V), 2.40A (12V) | 1.12A (5V), 2.40A (12V) |
| Idle (W) | 10.2/7.7/7.0/5.9 | 11.1/8.6/7.9/6.8 |
| Power consumption efficiency index | 0.07 W/GB , 0.11 W/GB | 0.08 W/GB , 0.12 W/GB |
| 0.19 W/GB , 0.33 W/GB | 0.22 W/GB , 0.38 W/GB | |
| Dimensions | ||
| Height (mm) | 25.4 (+-0.4) | 25.425.4 (+-0.4) |
| Width (mm) | 101.6 (+-0.4) | 101.6 (+-0.4) |
| Depth (mm) | 146 (+-0.6) | 146 (+-0.6) |
| Weight (max. kg) | 0.78 | 0.78 |
| Environmental characteristics | ||
| Operating | ||
| Ambient temperature | 5° to 55° C | |
| Relative humidity (non-condensing) | 8% to 90% | |
| Max. wet bulb (non-condensing) | 29.4° C | |
| Shock (half sine wave) | 10G (11 ms) / 45G (2 ms) | |
| Random Vibration (RMS) | 0.67G for horizontal | |
| 0.56G for vertical | ||
| Non-operating | ||
| Ambient temperature | -40° to 65° C | |
| Relative humidity (non-condensing) | 5% to 95% | |
| Max. wet bulb (non-condensing | 35° C | |
| Shock (half sine wave) | 75G (11 ms) / 225G (2 ms) for 146GB / 300G (2 ms) for 73, 36, and 18GB | |
| Random Vibration (RMS) | 1.04G | |
1 GB equals one billion bytes when referring to hard drive capacity; accessible capacity may be less.
2 Excludes command overhead.
Click here to view the manufacturer's item description/brochure
Alternate MPNs: IC35L146UCDY10
Weight: 1.8 lb
