Hitachi Ultrastar 08K0392 SCSI Hard Drives
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 18GB |
| Speed: | 10K RPM |
| Interface Types: | SCSI 80pin SCA-2 Hot-Swap |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SCSI LVD U320 - 320MBps 16-bit |
| RAM: | 8MB |
Description

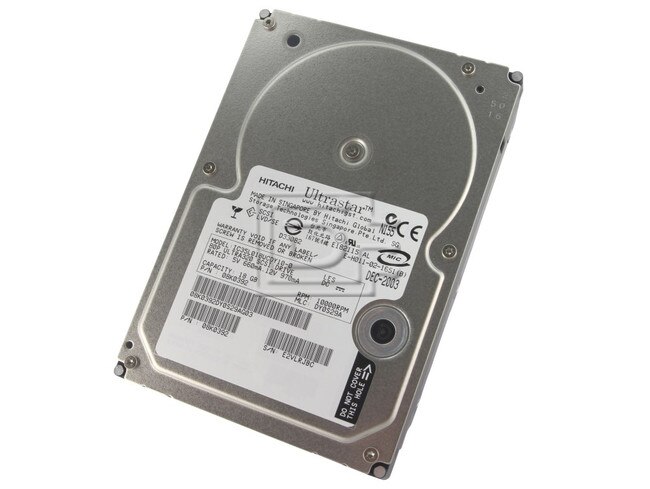

Hitachi Ultrastar 08K0392 / IC35L018UCDY10 146Z10 18GB 10K U320 80pin SCA-2 SCSI Hard Drive - Refurbished
The new Hitachi Ultrastar 146Z10 offers capacities of 146.8 GB, 73.4 GB, 36.7 GB, and 18.35 GB in Ultra 160 and 320 SCSI models. The high reliability and excellent performance of the Hitachi Ultrastar 146Z10 are the result of the implementation of a number of advanced disk drive technologies, including giant magnetoresistive head technology, No-ID sector formatting, Predictive Failure Analysis, and ECC on the fly correction.
Alt. PN: IC35L018UCDY10 3N325
Compatibility:
This drive is comaptible with any of our hotswap drive trays / caddies.
Specifications
| Configuration | ||
| Interface | Ultra320 / Ultra160 SCSI | FC-AL-2 |
| Capacity (GB)1 | 146.8/73.4/36.7/18.3 | 146.8/73.4/36.7/18.3 |
| Sector size (bytes) | 512-528 (variable, 2 byte inc.) | 512-528 (8 byte inc) |
| Recording zones | 15 | 15 |
| Data heads (physical) | 12/6/3/2 | 12/6/3/2 |
| Data disks | 6/3/2/1 | 6/3/2/1 |
| Max. areal density (Mbits/sq. inch) | 26,263 | 3126,263 |
| Max. recording density (BPI) | 548,000 | 548,000 |
| Track density (TPI) | 47,900 | 47,900 |
| Performance | ||
| Data Buffer | 8192 KB | 8192 KB |
| Rotational speed (rpm) | 10,000 | 10,000 |
| Latency average (ms) | 3.00 | 3.00 |
| Data transfer rate (max. Mbits/sec) | 433 - 825 | 433 - 825 |
| Interface transfer rate (max. MB/sec) | 320 | 200/400 |
| Sustained data rate (MB/sec) | 33.8 - 66.7 | 33.8 - 66.7 |
| Seek time (read, typical)2 | ||
| Average (ms) | 4.7 | 4.7 |
| Track to track (ms) | 0.5 | 0.5 |
| Full track (ms) | 7.2/8.0 | 7.2/8.0 |
| Reliability | ||
| Error rate (non-recoverable) | 10 in 10E16 bits read | 10 in 10E16 bits read |
| Start/stops (at 40° C) | 50K | 50K |
| Acoustic | ||
| Idle - Typical (Bels) | 3.7/3.4/3.4/3.4 | 3.7/3.4/3.4/3.4 |
| Operating - Typical (Bels) | 4.5/4.5/4.5/4.5 | 4.5/4.5/4.5/4.5 |
| Power | ||
| Requirement | +5VDC (+-5%), +12 VDC (+-5%) | +5VDC (+-5%), +12 VDC (+-5%) |
| Dissipation | ||
| Startup current (max. peak) | 1.07A (5V), 2.40A (12V) | 1.12A (5V), 2.40A (12V) |
| Idle (W) | 10.2/7.7/7.0/5.9 | 11.1/8.6/7.9/6.8 |
| Power consumption efficiency index | 0.07 W/GB , 0.11 W/GB | 0.08 W/GB , 0.12 W/GB |
| 0.19 W/GB , 0.33 W/GB | 0.22 W/GB , 0.38 W/GB | |
| Dimensions | ||
| Height (mm) | 25.4 (+-0.4) | 25.425.4 (+-0.4) |
| Width (mm) | 101.6 (+-0.4) | 101.6 (+-0.4) |
| Depth (mm) | 146 (+-0.6) | 146 (+-0.6) |
| Weight (max. kg) | 0.78 | 0.78 |
| Environmental characteristics | ||
| Operating | ||
| Ambient temperature | 5° to 55° C | |
| Relative humidity (non-condensing) | 8% to 90% | |
| Max. wet bulb (non-condensing) | 29.4° C | |
| Shock (half sine wave) | 10G (11 ms) / 45G (2 ms) | |
| Random Vibration (RMS) | 0.67G for horizontal | |
| 0.56G for vertical | ||
| Non-operating | ||
| Ambient temperature | -40° to 65° C | |
| Relative humidity (non-condensing) | 5% to 95% | |
| Max. wet bulb (non-condensing | 35° C | |
| Shock (half sine wave) | 75G (11 ms) / 225G (2 ms) for 146GB / 300G (2 ms) for 73, 36, and 18GB | |
| Random Vibration (RMS) | 1.04G | |
1 GB equals one billion bytes when referring to hard drive capacity; accessible capacity may be less.
2 Excludes command overhead.
Click here to view the manufacturer's item description/brochure
Alternate MPNs: IC35L018UCDY10 3M325
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
