Hitachi 0B21253 / HUS151473VL3800 73GB 80pin SCSI
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 73GB |
| Speed: | 15K RPM |
| Interface Types: | SCSI 80pin SCA-2 Hot-Swap |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SCSI LVD U320 - 320MBps 16-bit |
| RAM: | 8MB |
Description

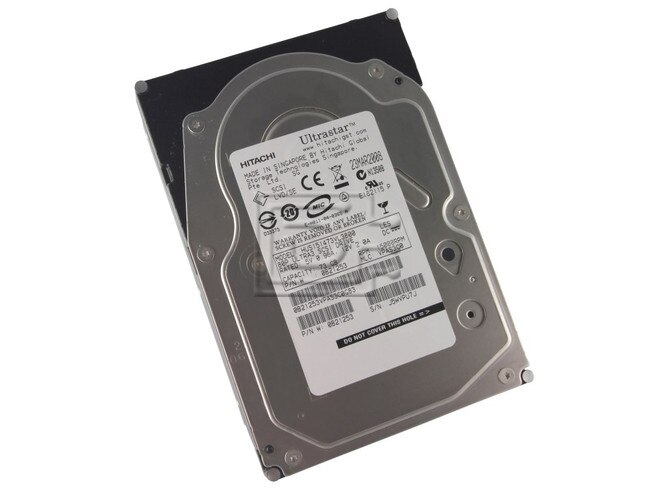

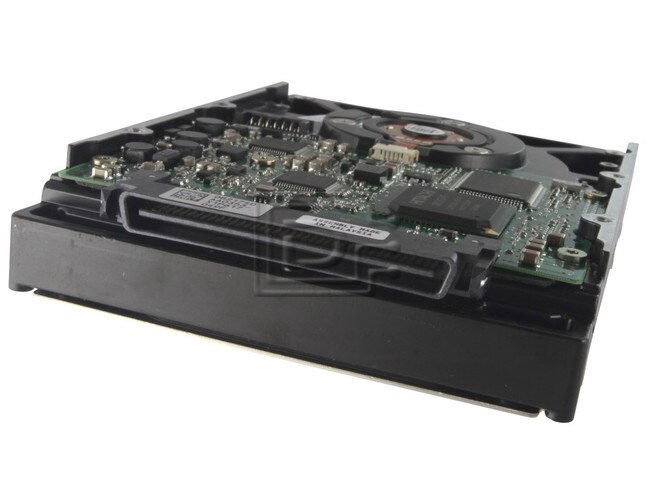

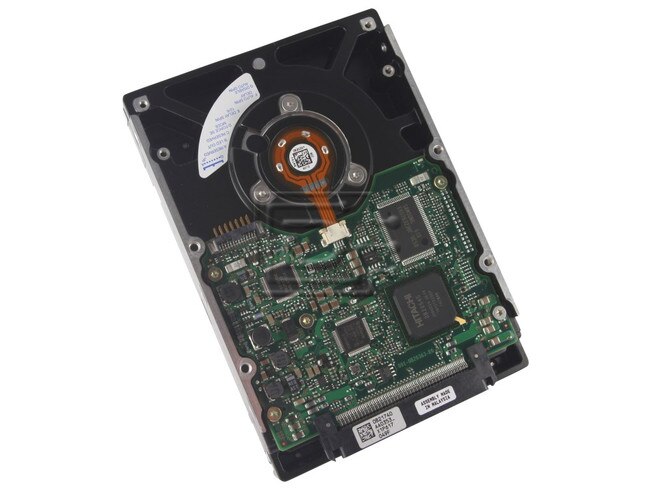

Hitachi Ultrastar 15K147 0B21253 / HUS151473VL3800 73GB 15K RPM U320 80pin SCA-2 SCSI Hard Drive - Refurbished
Hitachi Ultrastar 15K147 0B21253 / HUS151473VL3800 73GB 15,000 RPM U320 80-pin SCA-2 SCSI Hard Disk Drive - Refurbished
Advanced drive technology The Hitachi Ultrastar 15K147 is the 3rd generation of 15,000 RPM enterpriseclass hard drives from Hitachi. Leveraging award-winning technologies that have generated proven quality and high-performance, the Ultrastar 15147 incorporates Fluid Dynamic Bearing motors (FDB) to contribute to increased capacity by enabling high-track density through a more precise position of the head. AFC Media, also known as "pixie dust", is an industry-first in 15,000 RPM enterpriseclass hard drives, enabling higher areal densities by improving thermal stability, which in turn, maintains data integrity.
Designed for both high-performance and high-reliablity, the Ultrastar 15K147 was developed with powerful processors and read-write channels, advanced servo coupled technology, (AFC), also known controls to improve seek and settle times, and overall improved mechanical stability to excel in today's demanding data-processing environments.
Model : HUS151473VL3800
Compatibility
This drive is compatible with any of our 3.5" SCSI hot-swap trays.
Specifications
| Specifications | |
|---|---|
| Model number | 0B21253 / HUS151473VL3800 |
| Model Name | 15K147 |
| Formatted Capacity | 73 Gbytes |
| Rotational Speed | 15,000 rpm |
| Default Buffer (cache) Size | 8 Mbytes |
| Number of Discs (physical) | 3 |
| Number of Heads (physical) | 5 |
| Performance | |
| External (I/O) Transfer Rate (max) | 320 MBytes/sec |
| Sustained Transfer Rate | up to 93.3 MBytes/sec |
| Average Seek Time, Read | 3.6 msec typical |
| Average Seek Time, Write | 3.7 msec typical |
| Track-to-Track Seek | 0.6 msec typical |
| Average Latency | 2 msec |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Length | 146.05 mm |
| Weight | 0.709 kg |
| Electrical | |
| Power (Idle) | 8.83 watts |
| Environmental | |
| Max Operating Shock (2-msec) | 60 Gs |
| Max Nonoperating Shock (2-msec) | 250 Gs |
| Operating Vibration (max) | 1.0 Gs |
| Nonoperating Vibration (max) | 2.0 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Acoustics, Idle (sound power, typ) | 3.7Bels |
| Reliability | |
| MTBF (Hours) | 1,600,000 hours |
| Nonrecoverable Read Errors | 1 per 10^14 bits read |
| Supports S.M.A.R.T. | Yes |
Alternate MPNs: HUS151473VL3800
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
Warranty
1 Year DiscTech Warranty
