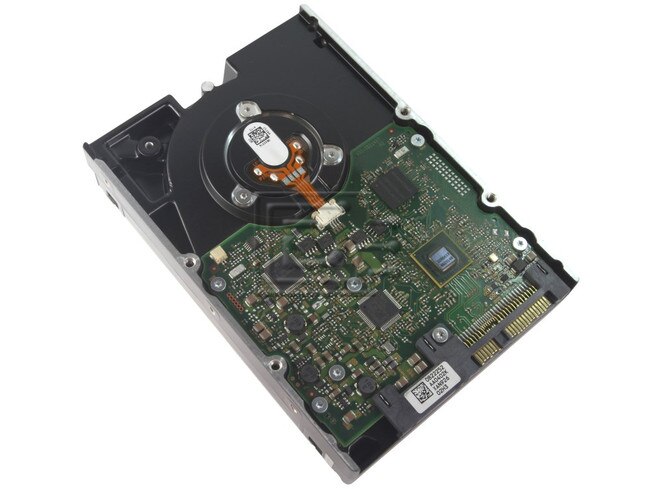

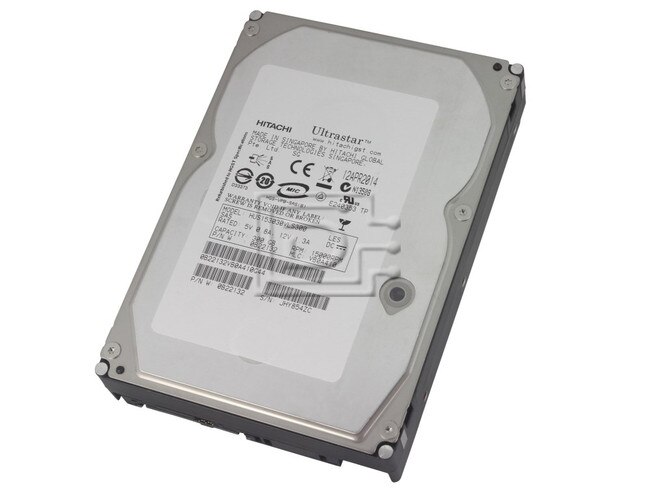

Hitachi 0B22132 SAS Hard Drive

HGST Part #/MPN: 0B22132

DiscTech Item #: HIT-0B22132-BN-OE

$155.00

Brand New
Condition Levels Explained
The product is brand new.
Warranty:1 Year DiscTech
Product Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
Low Stock:Call for ETA
Stock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back

$155.00

Enterprise Grade

Capacity: 300GB

Speed: 15K RPM

Interface Types: SAS

Form Factor: 3.5" LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: Up to 123

Average Seek Time: 3.6 / 3.4

Electrical Interface: SAS-1 3Gbps

On-Board Cache: 16MB

Compatible Systems: Dell 10th Gen. 2950 / 6950

Hitachi Ultrastar 300GB 15K RPM 3.0Gbps Serial SCSI / SAS Hard Drive 0B22132 / HUS153030VLS300 - Brand New

Built upon proven technology

Hitachi’s next-generation 3.5-inch 15,000 RPM hard drive delivers the performance and reliability required for mission-critical enterprise computing environments. Leveraging the proven system architecture and electronics of the previous generation, the Ultrastar™ 15K300 provides up to 300 GB capacity, 16 MB cache and Ultra320 SCSI, 3 Gb/s Serial Attached SCSI (SAS) and 4 Gb/s Fibre Channel interfaces. These features make the Ultrastar 15K300 the ideal solution for demanding enterprise computing environments like online transaction processing, intensive data analysis and other multi-user applications. The mature design of the Ultrastar 15K300 helps to ensure shorter qualification times.

Demonstrated reliability

Key reliablility features have been built into the Ultrastar 15K300. Rotational Vibration Safeguard (RVS) technology ensures drive performance in multi-drive systems where rotational vibration is likely to occur. Hitachi’s Thermal Fly-height Control (TFC) capability maintains a consistent fly-height during the read/write process ensuring a better soft error rate and end-to-end data protection enhances error detection for optimal data integrity. Finally, Hitachi offers the only enterprise-class hard drive utilizing a head load/unload ramp to help minimize drive failures as a result of handling during integration.

Compatibility:

All SAS compatible servers including:
Dell PowerEdge 1900, 1950, 2900, 2950, 6900, 6950. PowerVault MD1000

Drive specification	0B22132 / HUS153030VLS300
Formatted Gbytes (512 bytes/sector)	300
Bytes per sector	512
Read/write heads	6
Data Disks	3
Areal density (Gbits/inch2 avg)	113
Spindle speed (RPM)	15,000
I/O data transfer rate (Gbits/sec max)	300
Cache buffer	16 Mbytes
Height (max)	26.11 mm (1.028 inches)
Width (max)	101.85 mm (4.010 inches)
Length (max)	146.99 mm (5.787 inches)
Weight (max) grams	745
Average seek, read (msec typical)	3.6
