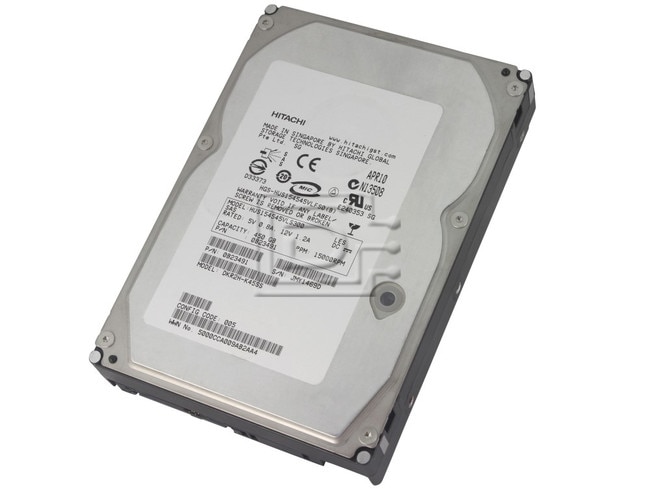

Hitachi 0B23491 HUS154545VLS300 450GB 15K SAS Hard Drive

Hitachi Ultrastar 15K450 0B23491 / HUS154545VLS300 450GB 15K RPM 3.0Gbps Serial SCSI / SAS Hard Drive - Refurbished

Ultimate performance meets high capacity

Hitachi’s next-generation 3.5-inch 15,000 RPM enterprise class hard drive delivers the performance and reliability required in mission-critical non-stop computing environments. Built upon the mature system architecture and electronics of the prior generation, the Ultrastar™ 15K450 provides a spacious 450GB capacity, 16MB cache and a choice of Serial Attached SCSI (SAS) 3Gb/s or Fibre Channel Arbitrated Loop (FCAL) 4Gb/s interfaces. These features make the Ultrastar 15K450 the ideal solution for demanding enterprise computing environments like online transaction processing, intensive data analysis and multi-user applications. The mature design of Ultrastar 15K450 helps ensure shorter qualification time.

Highest reliability for demanding environments

Important reliability features come standard in the Ultrastar 15K450. Rotational Vibration Safeguard (RVS) technology ensures drive performance in multi-drive systems where rotational vibration is likely to occur. Hitachi-patented Thermal Fly-height Control (TFC) technology maintains a consistent fly-height during the read/write process ensuring a better soft error rate, while end-to-end data protection enhances error detection for optimal data integrity. Finally, Hitachi offers the only enterprise-class hard drive utilizing a head load/unload ramp to help minimize drive failures as a result of handling during integration.

Proven PMR technology

The Ultrastar 15K450 is the first enterprise-class drive from Hitachi to use Perpendicular Magnetic Recording (PMR) technology. PMR has already been in use across the company’s mobile and desktop product lines and has been proven ready for the demanding mission-critical server and storage applications in the enterprise environment.

Compatibility:

All SAS compatible servers including:
Dell PowerEdge 1900, 1950, 2900, 2950, 6900, 6950. PowerVault MD1000 and MD3000.

Hitachi Ultrastar 15K450 HUS154545VLS300 - hard drive - 450 GB - SAS

Manufacturer: Hitachi America Ltd.

Part Number: HUS154545VLS300

General

• Device Type Hard drive - Internal hard drive
• Width 4 in
• Depth 5.7 in
• Height 1 in
• Weight 1.7 lbs

Hard Drive

• Form Factor 3.5" x 1/3H
• Capacity 450 GB
• Interface Type Serial Attached SCSI
• Buffer Size 16 MB
• Features:Load/unload technology,
  Fluid Dynamic Bearing (FDB) motor,
  Rotational Vibration Safeguard (RVS),
  Perpendicular Magnetic Recording (PMR),
  Thermal Flyheight Control (TFC)

Performance

• Drive Transfer Rate 300 MBps
• Internal Data Rate 261 MBps
• Seek Time 3.6 ms (average) / 3.6 ms (max)
• Average Latency 2 ms
• Spindle Speed 15000 rpm

Reliability

• Storage Hard Drive / Non-Recoverable Errors 1 per 10^16
• Start / Stop Cycles 50,000

Storage Controller

• Type None

Expansion / Connectivity

• Interfaces Serial Attached SCSI
• Compatible Bays 1 x Internal - 3.5" x 1/3H
• Compatible Slots x None

Miscellaneous

• Microsoft Certifications Works with Windows Vista
• Compliant Standards RoHS

Environmental Parameters

• Shock Tolerance 30 g @ 2ms half-sine pulse (operating) / 250 g @ 2ms half-sine pulse (non-operating)
• Vibration Tolerance 1.2 g @ RMS (random) (operating) / 1.04 g @ RMS (random) (non-operating)

ROHS Compliant

Alternate MPNs: HUS154545VLS300

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

1 Year DiscTech Warranty
