Hitachi Part #/MPN: 0B23663
DiscTech Item #: HIT-0B23663-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 600GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 119 to 198
Average Seek Time: 3.4
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

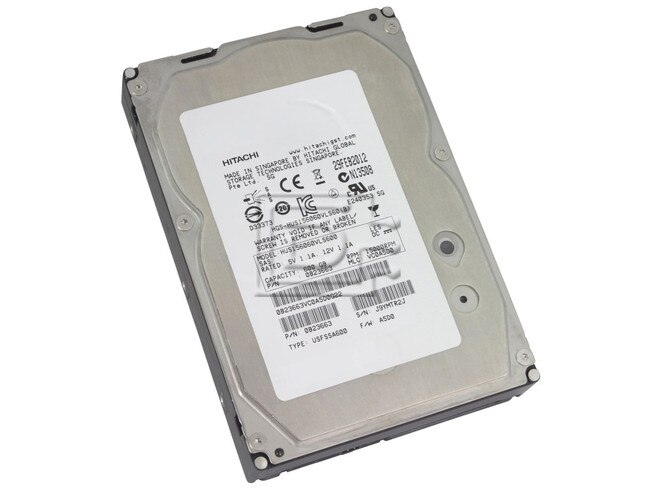

Hitach Ultrastar 15K600 600GB 15K RPM 6.0Gbps Serial SCSI / SAS Hard Drive 0B23663 / HUS156060VLS600 - Factory Recertified
Ultrastar™ 15K600
The all-in-one enterprise drive delivers performance and capacity in one package
Combines ultimate performance with high capacity in the same drive. The 6Gb/s Serial Attached SCSI (SAS) and 4Gb/s Fibre Channel Arbitrated Loop (FCAL) interfaces support the reliability required in the most demanding enterprise computing environments.
Hitachi Part Numbers: 0B23663 / HUS156060VLS600
Compatibility:
All SAS compatible servers including:
IBM, HP Proliant, Dell PowerEdge 1900, 1950, 2900, 2950, 6900, 6950. PowerVault MD1000.
| Specifications | |
|---|---|
| Part Number | 0B23663 |
| Model Number | HUS156060VLS600 |
| Model Name | Ultrastar 15K600 |
| Configuration | |
| Interface | SAS 6Gb/s |
| Capacity (GB) | 600 |
| Data heads (physical) | 8 / 6 / 4 |
| Data Disks | 4 / 3 / 2 |
| Performance | |
| Data buffer (MB) | 64 |
| Rotational speed (RPM) | 15,000 |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate (MB/s, typical) | 198 to 119 |
| Seek time (read/write, ms, typical) | 3.4 |
| Reliability | |
| Error Rate (non-recoverable, bits read) | 1 in 10^16 |
| MTBF (M hours) | 1.6 |
| Availability (hrs/day x days/wk) | 24x7 |
| Acoustics | |
| Idle (Bels) | 3.7 |
| Power | |
| Requirement | +5 VDC (+/5%) +12 VDC (+/5%) |
| Operating (W, typical) | 16.6 |
| Unload idle (W) | 10.7 |
| Physical size | |
| Z-height (mm) | 25.8 |
| Dimensions (width x depth, mm) | 101.6 x 146.2 |
| Weight (g, max) | 750 |
| Environmental (operating) | |
| Ambient temperature | 5º to 55ºC |
| Shock (half-sine wave) | 30G (2ms) |
| Vibration | 1.5Gm all axes |
| Environmental (non-operating) | |
| Ambient temperature | -40º to 70ºC |
| Shock (half-sine wave) | 250G (2ms) |
| Vibration | 2.0G, all axes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUS156060VLS600
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
