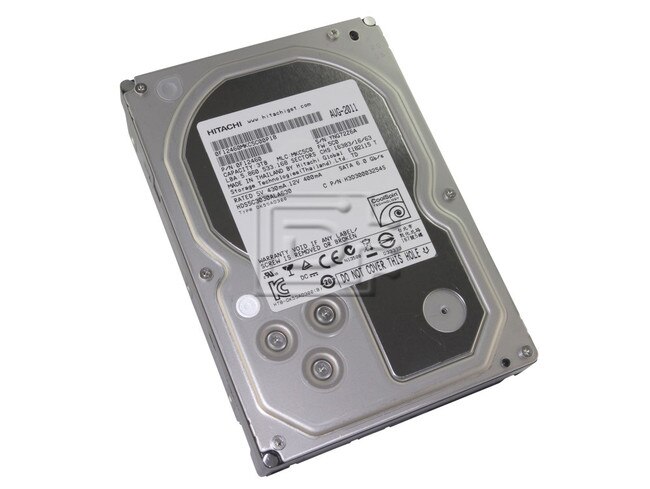

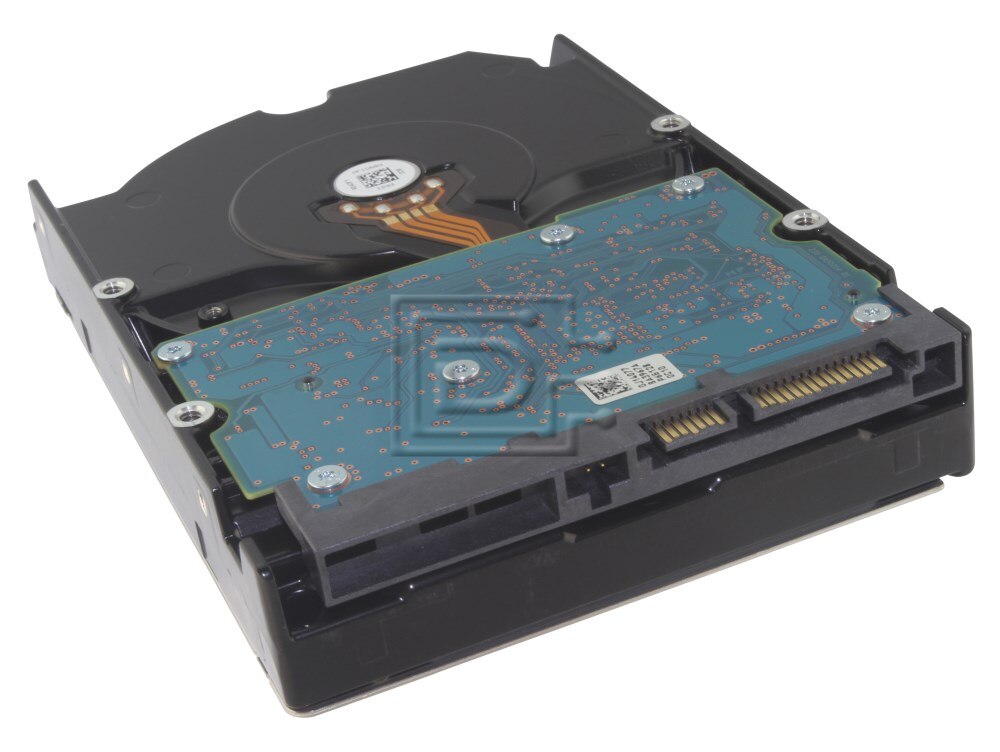

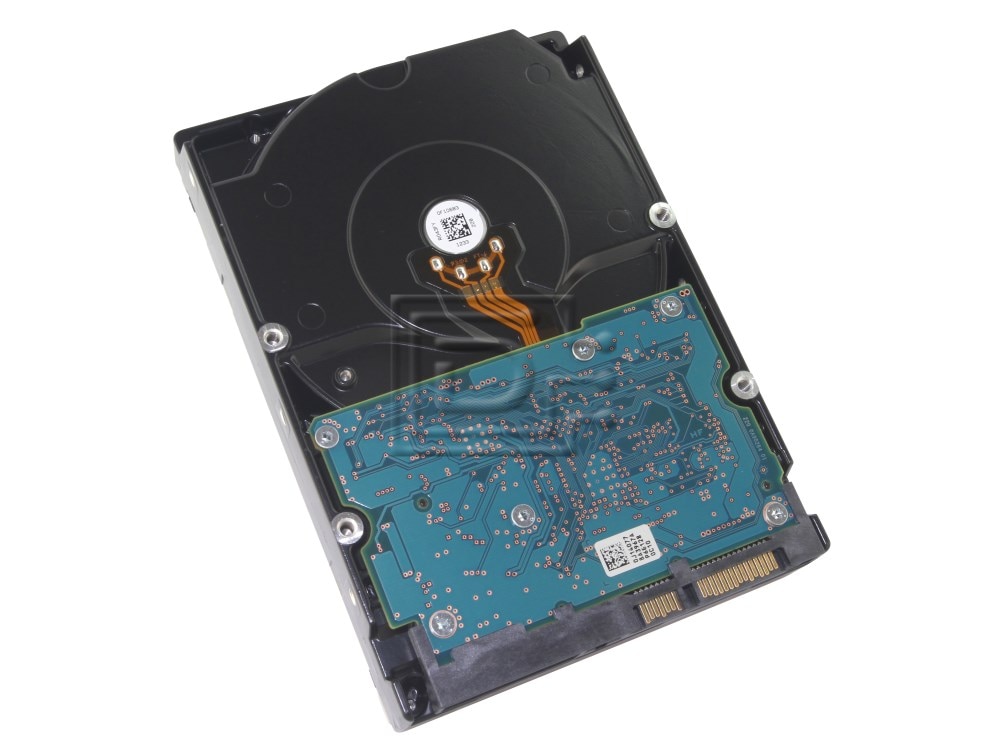

Hitachi 0F12460 3000GB SATA Hard Drive

Hitachi Part #/MPN: 0F12460

DiscTech Item #: HIT-0F12460-BN-OE


$109.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$109.00

Capacity: 3TB

Speed: 5,700RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 119

Average Seek Time: 14.0/15.0

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 32MB

Hitachi 0F12460 / HDS5C3030ALA630 3TB 3.5in 6Gbps 5.7K RPM Deskstar 5K3000 SATA HDD - Brand New

Hitachi 0F12460 / HDS5C3030ALA630 3000GB 3.5" 6.0 Gbps 5700 RPM Deskstar 5K3000 Serial Advanced Technology Attachment Hard Disk Drive - Brand New

Alt MPN: HDS5C3030ALA630

General features

  • Data capacities of 3TB
  • Spindle speeds of 5700 RPM
  • Fluid Dynamic Bearing motor
  • Dual Stage Actuator
  • Serial ATA interface
  • Sector format of 512 bytes/sector
  • Closed-loop actuator servo
  • Load/Unload mechanism, non head disk contact start/stop
  • Automatic Actuator lock
  • Sector Buffer size of 32MB
  • Ring buffer implementation
  • Write Cache
  • Native command queuing support
  • Automatic Error Recovery procedures for read and write commands
  • Self Diagnostics on Power on and resident diagnostics
  • Serial ATA Data Transfer 6 Gbps
  • CHS and LBA mode
  • Power saving modes/Low RPM idle mode (APM)
  • S.M.A.R.T. (Self Monitoring and Analysis Reporting Technology)
  • Support security feature
  • 48 bit addressing feature
  • Adaptive zone formatting
  • RVS(Rotational Vibration Safeguard)
  • SATA-2.6 compliant
  • Support TCG Opal SSC (specific model only)


Compatibility:

This drive is compatible with any server that accepts 3.5"x1.0" (LFF Hard Drive) SATA Drives.

SPECIFICATIONS
Model number0F12460
Alt Model NumberHDS5C3030ALA630
Model typeDeskstar
PHYSICAL LAYOUT
Label capacity3TB/3000GB
Bytes per Sector512
LOGICAL LAYOUT
Number of Heads16
Number of Sectors/Track63
Number of Cylinders16,383
Number of Sectors5,860,533,168
Total Logical Data Bytes3,000,592,982,016
DATA SHEET
Max Data transfer rate (Mbps)1319
Interface transfer rate (MB/s)600
Typ Sustained transfer rate (MB/s)119
Data buffer size (MB)32
Rotational speed (RPM)5700
Number of buffer segments (read)128
Number of buffer segments (write)70
Recording density - max (Kbpi)1452
Track density (Kbpi)255
Areal density - max (Gbits/in)370
COMAND OVERHEAD
Read (Cache not hit)
Typical time (ms)
Typical time for command (ms)

0.5
0.5
Read (Cache hit)
Typical time (ms)
Typical time for command (ms)

0.1
0.2
Write
Typical time (ms)
Typical time for command (ms)

0.015
0.2
Seek
Typical time (ms)
Typical time for command (ms)

0.5
Not applicable
AVERAGE SEEK TIME
Read
Typical (ms)
Max (ms)

14.0
15.0
Write
Typical (ms)
Max (ms)

15.0
16.0
SINGLE TRACK SEEK TIME
Read
Typical (ms)
Max (ms)

0.8
1.5
Write
Typical (ms)
Max (ms)

1.3
2.0
AVERAGE LATENCY
Rotational speed5700 RPM
Time for a recolution (ms)10.5
Average latency (ms)5.26
DRIVE READY TIME
Power on to ready 5 Disk model
Typical (sec)
Madimum (sec)

20
30
TEMPERATURE AND HUMIDITY
Operating conditions
Temperature
Relative humidity
Maximum wet bulb temperature
Maximum temperature gradient
Altitude

5 to 60°C
8 to 90% non-condensing
29.4°C non-condensing
20°C/Hour
-300 to 3,048 m
Non-Operating conditions
Temperature
Relative humidity
Maximum wet bulb temperature
Maximum temperature gradient
Altitude

-40 to 70°C
5 to 95% non-condensing
35°C non-condensing
30°C/Hour
-300 to 12,000 m
INPUT VOLTAGE
+5 Volts Supply
During run and spin up
Absolute max spike voltage
Supply rise time

5V ± 5%
-0.3 to 5.5V
0 to 5sec
+12 Volts Supply
During run and spin up
Absolute max spike voltage
Supply rise time

12V +10% -8%
-0.3 to 15.0V
0 to 5sec
PHYSICAL
Height (mm/in)26.1/1.0276
Width (mm/in)101.85/4.0098
Length (mm/in, max)147/5.7874
Weight (lb/g, max)1.5212/690
ACOUSTICS
Idle2.5/3.0
Operating
Performance seek mode
Quiet seek mode

N/A>
2.6/3.1

Click here to view the manufacturer's item description/brochure

Alternate MPNs: HDS5C3030ALA630

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
