Hitachi Part #/MPN: 13G1581
DiscTech Item #: HIT-13G1581-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 20GB
Speed: 5,400RPM
Interface Types: IDE ATA 2.5in IDC44M for laptop
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 8MB

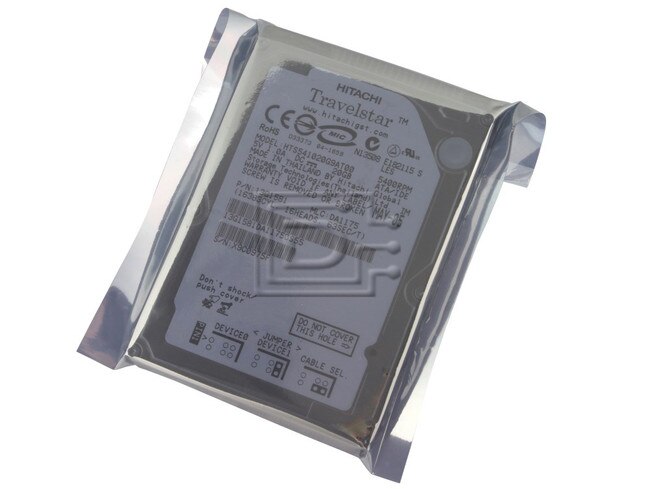

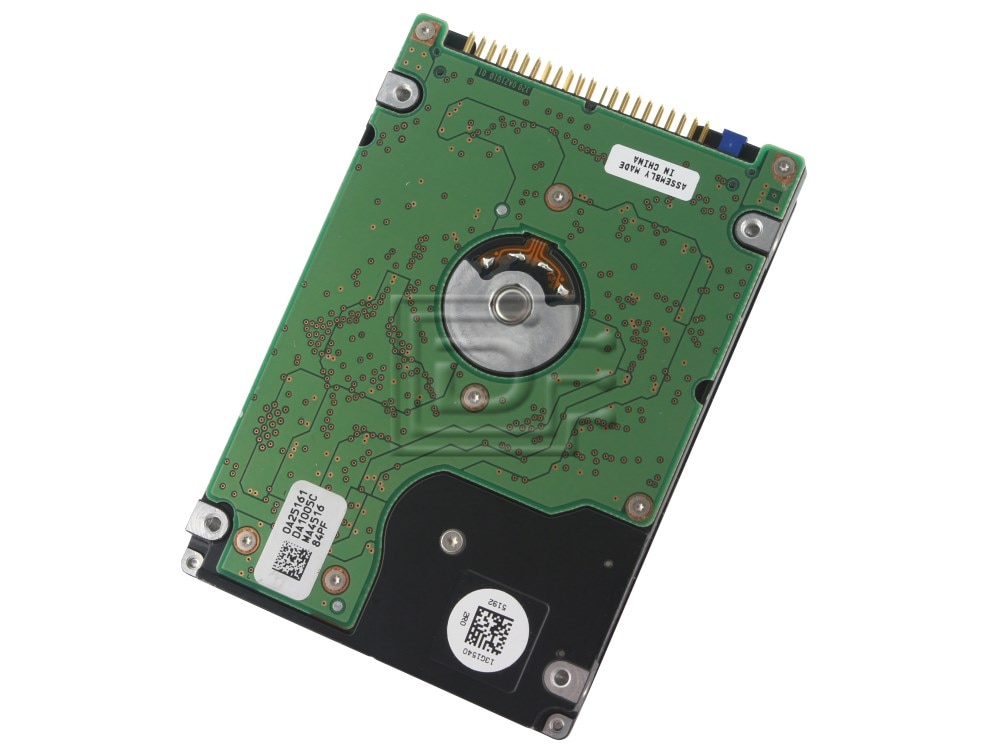

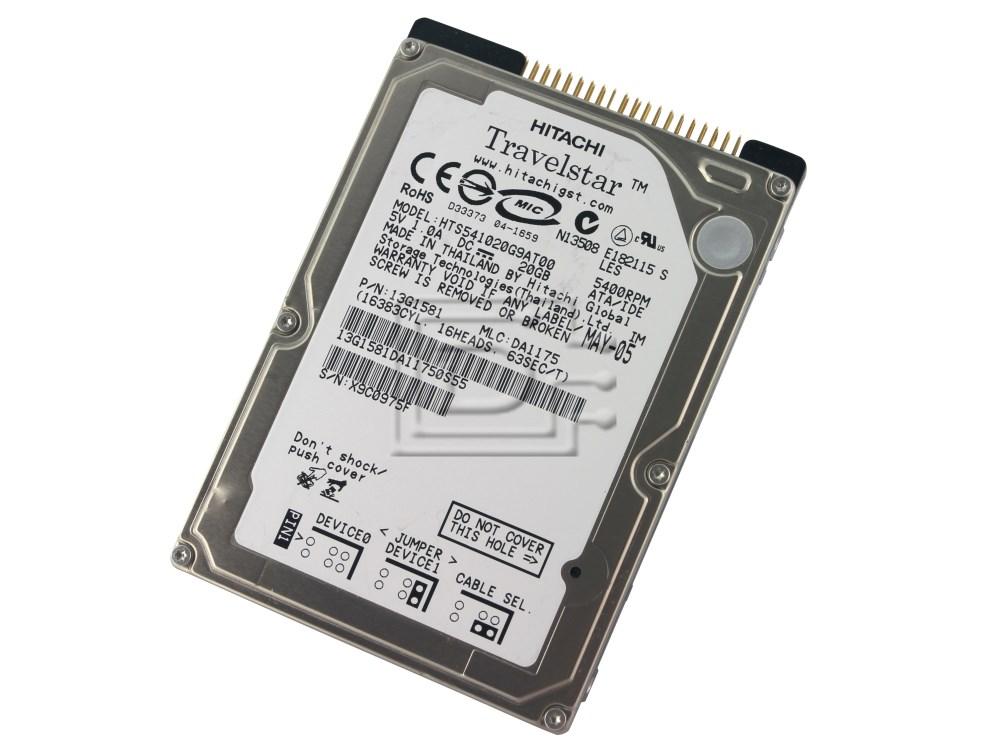

Hitachi 13G1581 / HTS541020G9AT00 20GB 5.4K 2.5" IDE Laptop Hard Drive - Brand New
The Hitachi 13G1581 20GB 5.4K 2.5" IDE Laptop Hard Drive works in almost ANY laptop. This includes, but is not limited to Dell Inspiron 4000, 4100, 4150, 5000, 5100, 600m 8000, 8100, 8200, 8500, Latitude C600, C610, C620, C640, C800, C810, C820, C840, D600, D610, D800, D810, Precision M50 Workstation notebooks; Toshiba Tecra, Satellite Pro, IBM Thinkpad, ArmComputer CR10 and MANY MANY OTHERS!!!
Hitachi Part #: HTS541020G9AT00
Compatibility:
This Laptop Hard Drive works in almost ANY laptop. This includes, but is not limited to Dell Inspiron 4000, 4100, 4150, 5000, 5100, 600m 8000, 8100, 8200, 8500, Latitude C600, C610, C620, C640, C800, C810, C820, C840, D600, D610, D800, D810, Precision M50 Workstation notebooks; Toshiba Tecra, Satellite Pro, IBM Thinkpad, ArmComputer CR10 and MANY MANY OTHERS!!!
Specifications | |
Model number | 13G1581 / HTS541020G9AT00 |
Model Name | 5K100 |
Form Factor(width) | 2.5-inch |
Form Factor(height) | 9.5 mm |
Height | 9.5 mm |
Width | 70 mm |
Length | 100 mm |
Weight | 0..095 kg |
Formatted Capacity | 20 Gbytes |
Internal Transfer Rate (max) | 493 Mbits/sec |
External (I/O) Transfer Rate (max) | 100 MBytes/sec |
Average Seek Time, Read | 12 msec typical |
Average Latency | 5.5 msec |
Default Buffer (cache) Size | 8 Mbytes |
Number of Discs (physical) | 1 |
Number of Heads (physical) | 1 |
Startup Current (5VDC +/- 5%) | 5 watts |
Max Operating Shock (2-msec) | 300 Gs |
Max Nonoperating Shock (1-msec) | 1000 Gs |
Operating Temperature (max) | 55 deg C |
Operating Temperature (min) | 5 deg C |
Nonoperating Temperature (max) | 65 deg C |
Nonoperating Temperature (min) | -40 deg C |
Acoustics, Idle (sound power, typ) | 2.4 Bels |
Alternate MPNs: HTS541020G9AT00
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
