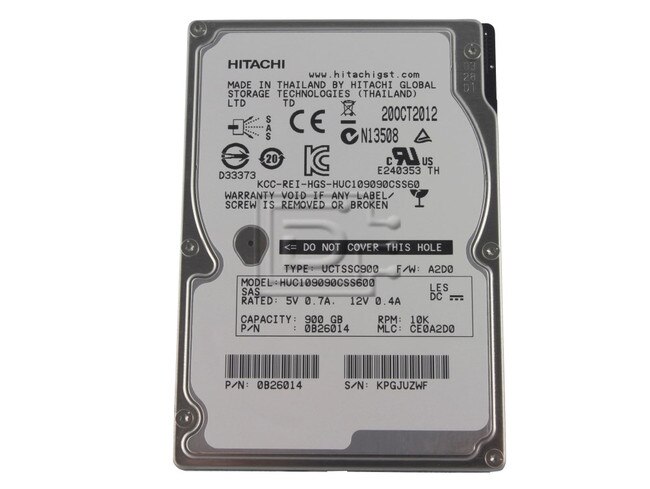

Hitachi C10K900 0B26014 / HUC109090CSS600 900GB 10K Serial Attached SCSI / SAS Hard Drive

Hitachi Part #/MPN: 0B26014

DiscTech Item #: HIT-0B26014-BN-OE


Enterprise Grade

Capacity: 900GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 198 - 117

Average Seek Time: 3.8 / 4.2

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

Hitachi C10K900 0B26014 / HUC109090CSS600 900GB 10K 6Gbps SFF Serial Attached SCSI Hard Drive -  Brand New

Leadership Performance

Ultrastar™ C10K900 is a 2.5-inch 10,000 RPM hard drive that leads the industry with 18% faster sequential and up to 17% random performance than the nearest competitor.The high-performance SAS 6Gb/s interface delivers data reliability, availability and scalability and is the only small form factor SAS drive in the industry to pack a 64MB cache bufferfor optimized read/write response time.

Best-in-Class Power Performance

Power management innovations designed into the Ultrastar C10K900 enable industry leading power efficiency,up to 28% better than competing drives,and translate into reduced power requirements and lower cooling costs.HGST Advanced Power Management technology,with multi-state idle modes, maintains compatibility with the INCITS T10 Technical Committee standards direction and can be pre-programmed or manually initiated in the system.Ultrastar C10K900 continues the HGST tradition of environmental leadership with its halogen-reduced components and focus on low power consumption, and carries the HGST EcoTrac classification.

Driving the Small Form Factor Transition

Ultrastar C10K900 delivers a massive 900GB of storage space and enabling lower total cost of ownership formany enterprise environments,especially networked storage arrays.When faced withspace and power limitations, the Ultrastar C10K900 is an efficient solution for online transactionprocessing, intensive data analysis and multi-user applications.  Some models of the C10K900 also offer Bulk Data Encryption for hard-drive-level data security. These self-encrypting models are designed to the Trusted Computing Group’s Enterprise ASecurity Subsystem Class encryption specification and allow customers to reduce costs associated with drive retirement and extend drive life by enabling swift and secure repurposing of drives.

Hitachi Model: HUC109090CSS600


This drive is compatible with any server that supports SFF (small form factor SAS drives.)

Technical Specifications
Model number HUC109090CSS600
Model Name C10K900
Form Factor(width) 2.5-inch
Form Factor(height) SFF 15mm
 Physical Specifications
Height 14.8 mm
Width 70.1 mm
Length 100.6 mm
Weight 0.204 kg
Formatted Capacity 900 Gbytes
Interface Type SAS 2
  Transfer Rates
Media Transfer Rate (max) 2105 Mbits/sec
Interface Transfer Rate (max) 600 Mbits/sec
Latency (avg) < 3.0 MBytes/sec
Sustained Transfer Rate (max) 198 - 117 MBytes/sec
External (I/O) Transfer Rate (max) 320 MBytes/sec
  Seek Times
Average Seek Time, Read 3.8 msec typical
Average Seek Time, Write 4.2 msec typical
Default Buffer (cache) Size 64 MB
Spindle Speed 10K RPM
Supports S.M.A.R.T.Yes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HUC109090CSS600

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
