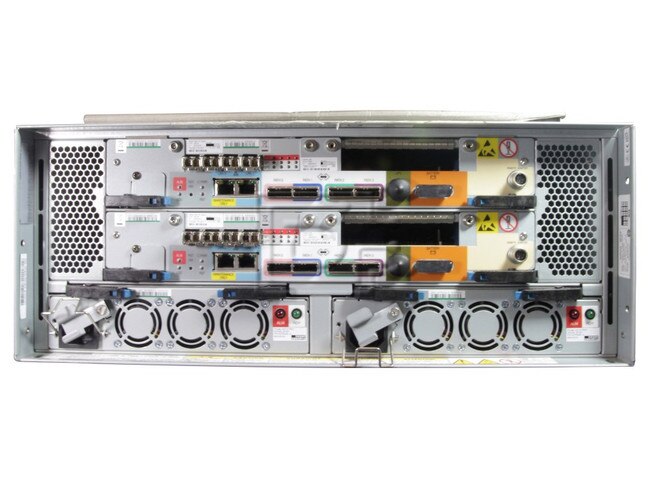

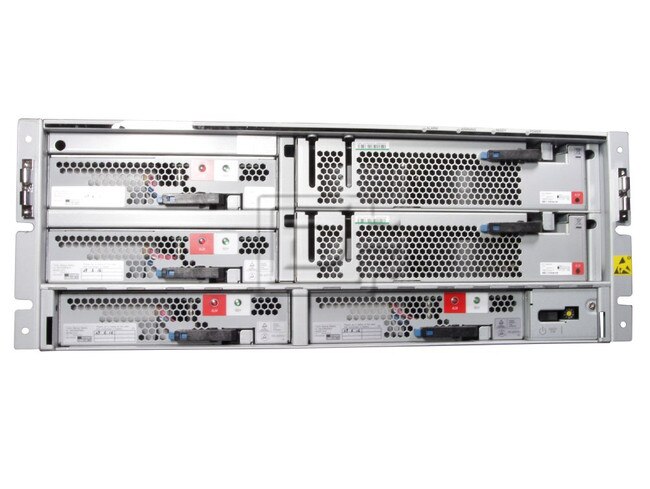

Hitachi DF800-RKHE2 AMS 2500 Base Unit

Hitachi Part #/MPN: DF800-RKHE2

DiscTech Item #: HIT-DF800-RKHE2-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Enterprise Grade

Capacity: 6TB

Interface Types: SAS Serial Attached SCSI, SATA, SCSI 80pin SCA-2 Hot-Swap, Fibre Channel - Internal - Arbitrated Loop ASA II

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: FC-AL - 8Gbps

On-Board Cache: 32GB

Bays/Ports/Slots: 8

Wattage/VA: 440W

Hitachi DF800-RKHE2 AMS Adaptable Modular Storage 2500 Base Unit - Refurbished

Hitachi Adaptable Modular Storage 2500

  • fully compliant with RoHS(Restriction of the use of certain Hazardous Substances in electrical and electronic equipment) regulation, which limit the use of hazardous materials in electronic equipment.
  • Lead-free solder(paste and flow) is used in circuit board.
  • Reduce utility charges(power consumptions) with Power Savings feature.
1Model name-Hitachi Adaptable Modular Storage 2500
2External dimension [width X depth X height]Width[mm]483
3Product mass[kg]45.44
4Energy consumption efficiency[W/GB]0.035
5Power consumptionnormal state[W]440
6major material component ratioIron and iron alloy (inc. stainless-steel)[%]69%
Aluminum and its alloys[%]4%
Other metals[%]0%
7batterykind-nickel metal hydride rechargeable battery
8recyclable ratio[%]74
9External dimensions of packaging materialsWidth[mm]580
10major packing materialsCorrugated board[%]33%
Foamed polystyrene[%]EE/td>
Other plastics[%]8%
11Consumption of lead solder(Pb)[g]0.00
12noise when used[dB]57
13Market release timingYM2008/10
14Special notes--

Factor X

ProductFactor Calculation Results (compared with reference model)
Global warming preventionResource
Hitachi Adaptable Modular Storage 250020.611


Manufacturing year-20032008
Model name-Thunder 9585VHitachi Adaptable Modular Storage 2500
Product life (Specified operating time)(years)88
Product functionMaximum disk capacity[GB]18146152
Maximum host interface speed[Gbps]24
Maximum physical host ports[ports]48
Greenhouse gas emissions(% for Base)10065.8
Efficiency of global warming prevention-1160.9623930.259
Resource value coefficient-11
The amount of newly used resource(% for New resources used of Base)100111.6
The amount of disposed resource(% for New resources used of Base)3250.9
Resource efficiency-8799690

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 80 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
