Hitachi Part #/MPN: DK32CJ18FC
DiscTech Item #: HIT-DK32CJ18FC-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:29Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 18GB
Speed: 10,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 52.8
Average Seek Time: 5.2 ms
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 4MB
Voltage: 12V

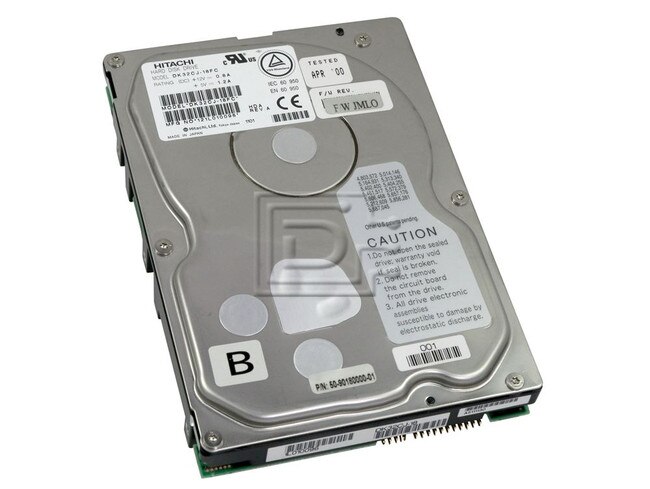

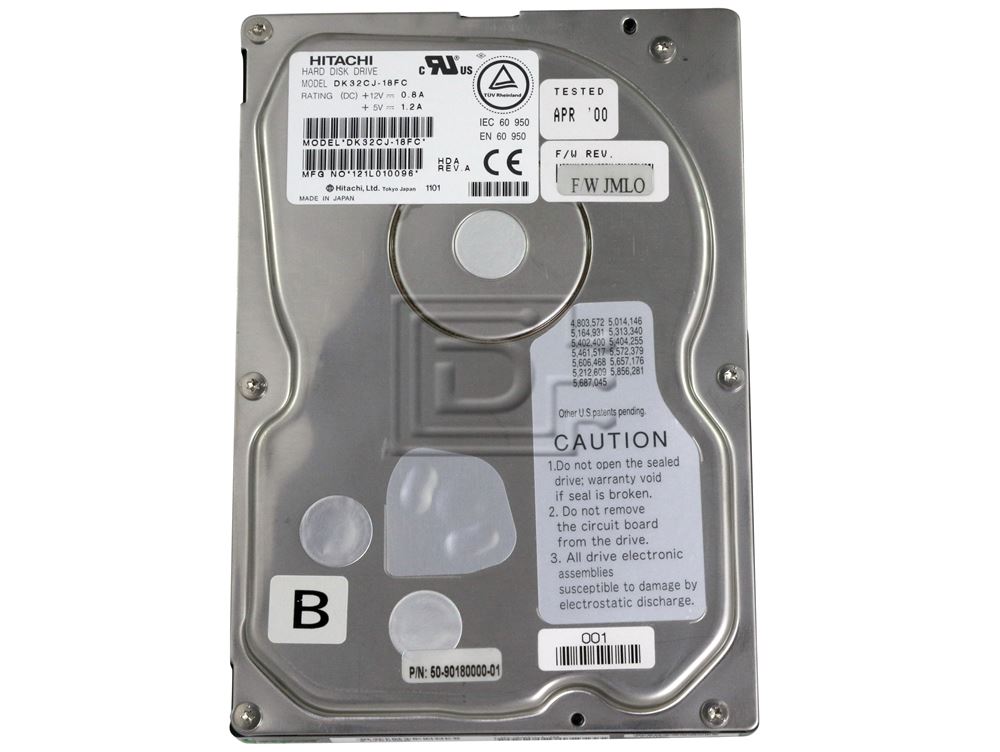

Hitachi DK32CJ18FC 18GB 3.5in 2Gbps 10K RPM Fiber Channel Hard Disk Drive - Refurbished
Hitachi DK32CJ18FC 18GB 3.5" 2.0 Gb/s 10,000 RPM FC-AL HDD - Refurbished
High capacity and a diversity of interface options are required for today's evolving high-performance storage market. Hitachi delivers a large family of hard drives offering different capacities using various interfaces. The drives are designed for high throughput operating environments, such as network and Internet servers, multimedia production and digital video processing.
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in Fibre Channel Drive.
| Hitachi | |
|---|---|
| Model Number | DK32CJ18FC |
| GENERAL | |
| Interface | FC-AL |
| Bytes per Sector | 40 pin Centronics (SCA-2 |
| Bufer Siz | 4 MB |
| Weight | 1.32 lbs |
| MISCELLANEOUS | |
| MTBF | 1000000 SEC |
| PERFORMANCE | |
| Internal Data Rate | 52.8 MBps |
| Seek Time | 5.2 ms (average) |
| Drive Transfer Rate | 100 MBps (external) |
| Average Latency | 3 ms |
| Spindle Speed | 10000 rpm |
| MTBT | 1,000,000 hours |
| EXPANSION & CONNECTIVITU | |
| Connections | 1 x storage - FC-AL -40 pin Centronics SCA |
| Gender | Male |
| ENVIRONMENTAL PARAMETERS | |
| Sound Emmission | 42 dB |
| Min Operating Temperature | 41°F |
| Max Operating Temperature | 122°F |
| Shock Tolerance | 10 g @ 11ms half-sine pulse (operating) / 75 g @ 11ms half-sine pulse (non-operating) |
| Humidity Range Operating | 8 - 80% |
| Min Operating Temperature | 41°F |
| DIMENSIONS & WEIGHT | |
| Width | 4 in |
| Depth | 5.7 in |
| Height | 1in |
| Weight | 1.32 lbs |
Weight: 2 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
