Hitachi Deskstar T7K500 0A33652 SATA Hard Disk Drive
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 500GB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 300 - 3Gbps |
| RAM: | 16MB |
Description

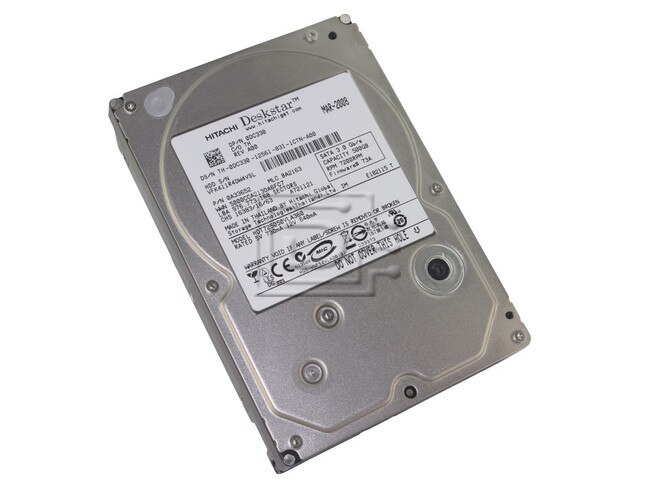

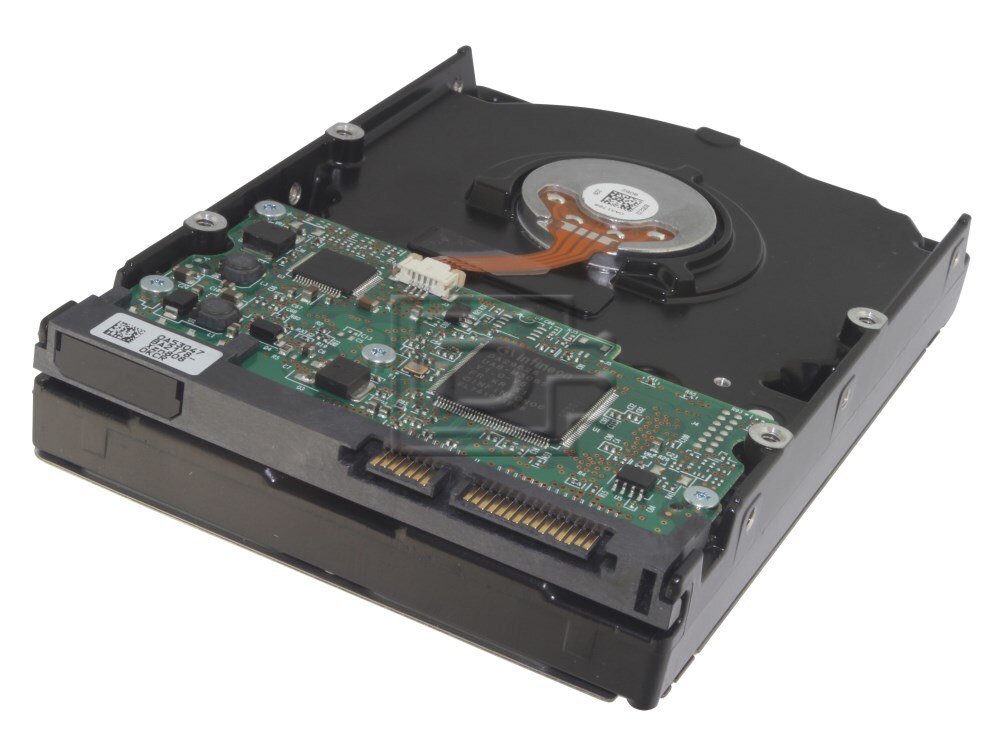

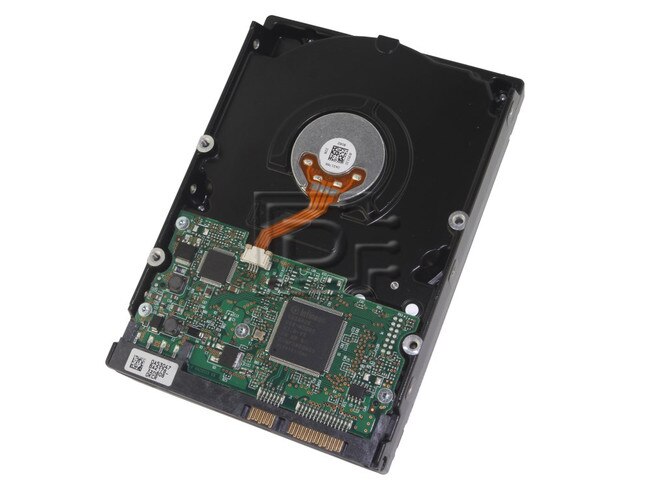

Hitachi Deskstar T7K500 0A33652 / HDT725050VLA360 500GB 7.2K SATA Hard Drive - Refurbished OEM
Highlights
- SATA 3.0 Gb/s and PATA 133 interfaces
- Capacities from 250GB up to 500GB
- Native Command Queuing for maximum data speeds
- Thermal Monitoring and Fly Height Control for enhanced reliability
- SMART Command Transport optimized response times
Applications
- Consumer computers
- Low duty cycle servers
- External storage
- Extreme PC gaming
- Video editing arrays
Serial ATA Features
- 3.0Gb/s interface data rate
- Native Command Queuing
- Staggered spin up
- Hot plug capability
- Click connect connector
- Scalable performance
- System improvements
Deskstar T7K500
The Deskstar T7K500 builds on Hitachi’s award winning tradition with new 160GB per platter areal density technology. Consumer personal computers and low duty cycle servers demand high capacity and high performance storage to meet consumers digital media needs and growth ATA server application requirements. The Deskstar T7K500 meets these performance requirements and delivers the high capacity for today’s applications.
Model: HDT725050VLA360
Alternate PNs: DC330 0DC330
Compatibility
<p>This drive is compatible with any of our SATA drive trays as well as any system that supports SATA hard drives.</p>
Specifications
| Specifications | |
|---|---|
| Model number | 0A33652 / HDT725050VLA360 |
| Model Name | T7K500 |
| Formatted Capacity | 500 Gbytes |
| Rotational Speed | 7,200 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 3 |
| Number of Heads (physical) | 6 |
| Performance | |
| Internal Transfer Rate (max) | 998 Mbits/sec |
| External (I/O) Transfer Rate (max) | 300 MBytes/sec |
| Average Seek Time, Read | 8.5 msec typical |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 26.1 mm |
| Width | 101.6 mm |
| Length | 147 mm |
| Weight | 0.640 kg |
| Electrical | |
| Power (Idle) | 13.5 watts |
| Startup Current (12VDC +/- 5%) | 2.0 amps |
| Startup Current (5VDC +/- 5%) | 1.3 amps |
| Environmental | |
| Max Operating Shock (2-msec) | 70 Gs |
| Max Nonoperating Shock (2-msec) | 300 Gs |
| Operating Vibration (max) | .67 Gs |
| Nonoperating Vibration (max) | 1.04 rms |
| Operating Temperature (max) | 60 deg C |
| Operating Temperature (min) | 0 deg C |
| Nonoperating Temperature (max) | 65 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Acoustics, Idle (sound power, typ) | 3.0 Bels |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^14 bits read |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HDT725050VLA360 DC330 0DC330
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
Warranty
1 Year DiscTech Warranty
