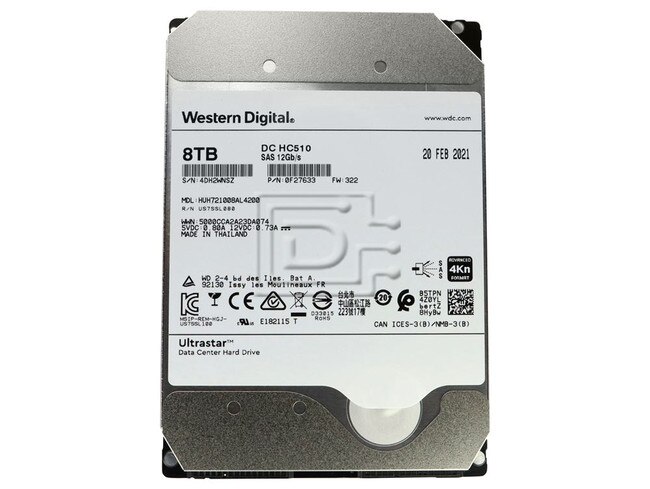

HGST Ultrastar HC510/HE10 HUH721008AL4200 / 0F27633 / 0F27406 8TB 12Gbps 4Kn SAS Hard Drive

Hitachi Part #/MPN: HUH721008AL4200

DiscTech Item #: HIT-HUH721008AL4200-BN-OE


$97.00
$97.00

Enterprise Grade

Capacity: 8TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 4Kn

Sustained Throughput: 215/225

Average Seek Time: 8.0/8.6

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 256KB

WD / HGST Ultrastar HC510 HUH721008AL4200 / 0F27633 / 0F27406 8TB 3.5" 7.2K RPM ISE 4Kn 12Gbps SAS Hard Drive - Brand New

HGST / Hitachi Ultrastar HC510/HE10 HUH721008AL4200 / 0F27633 / 0F27406 8TB 3.5" 12Gbps 7.2K RPM 4Kn Instant Secure Erase SAS Hard Drive - Brand New

Ultrastar HC510
3.5-INCH HELIUM PLATFORM ENTERPRISE HARD DISK DRIVES

Industry’s Best Capacity, Power Efficiency and Reliability Delivers Value to the Data Center
Laying the foundation for a worry-free data center, Western Digital delivers an exceptional capacity hard drive for the enterprise – Ultrastar DC HC510, previously known as Ultrastar He10 and part of our HC500 series of helium-filled hard drives. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC510 uses PMR technology and is the industry’s first 10TB drive that is drop-in ready for any enterprisecapacity application or environment. Based on field proven, third-generation HelioSeal® technology, it offers one of the lowest power profiles in the industry to help data center architects meet eco-environmental goals and requirements. Targeted at 2.5M hours MTBF, the DC HC510 provides the highest reliability rating available of all HDDs on the market today by building on the successful design of its 8TB and 6TB predecessors. Trust Western Digital and Ultrastar DC HC510 to deliver more capacity, more efficiency, more reliability and more value to your data center

HelioSeal® Technology Helps Solve Challenges Facing Next Generation Data Centers
Data centers are facing growing pressures. Data volume is expanding, operating costs are rising, yet budgets remain flat. Lowering the total cost of ownership (TCO) has become the focus of data center architects and the Ultrastar DC HC510 provides the best value proposition and greatest storage efficiency available. Compared to our 8TB air-filled drives, this HelioSeal hard drive provides 25% more capacity, uses 28% less idle power, is 43% more power efficient (Watts/TB), and is 25% more reliable, rated at 2.5M hours MTBF. New features include a second-generation, dual-stage actuator— the Western Digital Micro-Actuator—enhancing head-positioning accuracy to deliver better performance, data integrity and overall drive reliability, especially in multi-drive environments where operational vibration is present. Refer to our technical brief to learn more. A choice of 6Gb/s SATA and 12Gb/s SAS interface enables easy integration into high performance data centers.

Data Durability and Security with Industry-Leading Quality and Reliability
As drive capacity grows beyond single-digit TBs, object storage systems with erasure coding provide better data durability compared to RAID systems, given its tolerance for simultaneous errors conditions. Ultrastar DC HC510 is a best-fit for object storage implementations given its massive capacity and industry-leading reliability rating. Compliance and privacy requirements drive the need for increased data security. Ultrastar DC HC510 offers security and encryption options to protect data from unauthorized use, including a new option for TCG support on some SATA models.

Western Digital Quality and Service
Ultrastar DC HC510 extends Western Digital’s long-standing tradition of performance and capacity leadership. The proven drive design enables high reliability and availability to customer data. Ultrastar quality, performance and world class technical service and support provides customers with a lower total cost of ownership over previous generations. Ultrastar drives are backed by an array of technical support and services, which may include customer and integration assistance. Dedicated to providing a complete portfolio of devices and systems, Western Digital products help create environments for data to thrive.


Compatibility:

This drive is compatible with any server that accepts 3.5inx1.0in 4Kn SAS Drive.

HGST Ultrastar HC510 / He10
Model Number0F27633 / 0F27406
Alt Model NumberHUH721008AL4200
Configuration
Performance
Reliability
Acoustics
Power
Physical size
Environmental (Operating)
Environmental (Non-Operating)
Data Security ModeInstant Secure Erase
InterfaceSAS 12Gb/s
Capacity(TB)8TB / 8,000GB
Format: Sector size(bytes)4Kn: 4096, 4112, 4160, 4224
Max. Areal density(Gbits/sq. in.)816
Data Buffer(MB)256
Rotational Speed(RPM)7,200
Latency Average(ms)4.16
Interface transfer rate(MB/s, max)1200
Sustained Transfer Rate215/225
Seek Time(read/write, ms, typical)8.0/8.6
Error rate(non-recoverable, bits read)1 in 10^15
Load/Unload cycles(at 40ºC)600,000
Availability(hrs/day x days/wk)24 x 7
MTBF(M hours)2.5
Annualized Failure Rate(AFR)0.35%
Idle (Bels, typical)2.0/3.6
Requirement+5 VDC, +12VDC
Operating9.5
Idle(W)5.8

Power consumption efficiency at Idle (W/TB)

  • Watts/TB
  • Watts/GB


  • 0.58
  • 0.00058
z-height (mm)
Dimensions(width x depth, mm)101.6(+/-0.25) x 147
Weight (g, max)660
Ambient temperature5º to 60º C
Shock(half-sine wave 2 ms, G)70
Vibration(G RMS 5 to 500 Hz)0.67 (XYZ)
Ambient temperature-40º to 70º C
Shock(half-sine wave, G)300 (2ms) / 150 (11ms)
Random vibration(G RMS 2 to 200 Hz)1.04 (XYZ)

ROHS Compliant

Alternate MPNs: 0F27406 0F27633

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
