  • HGST Lenovo HUSMM1640ASS205 0B32186 0B32200 400GB SAS eMLC SAS SSD

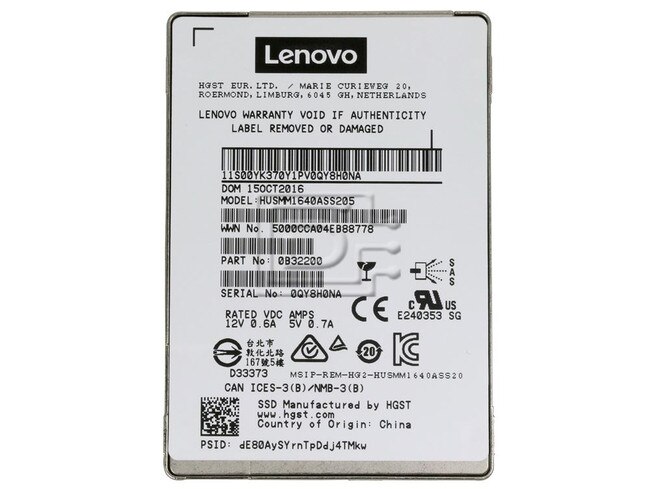

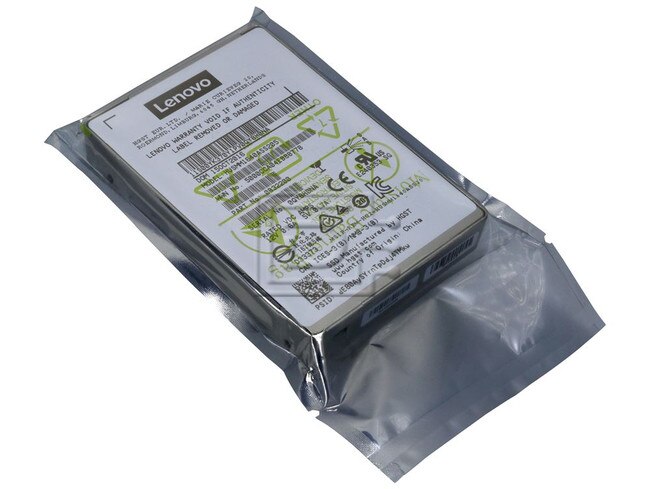

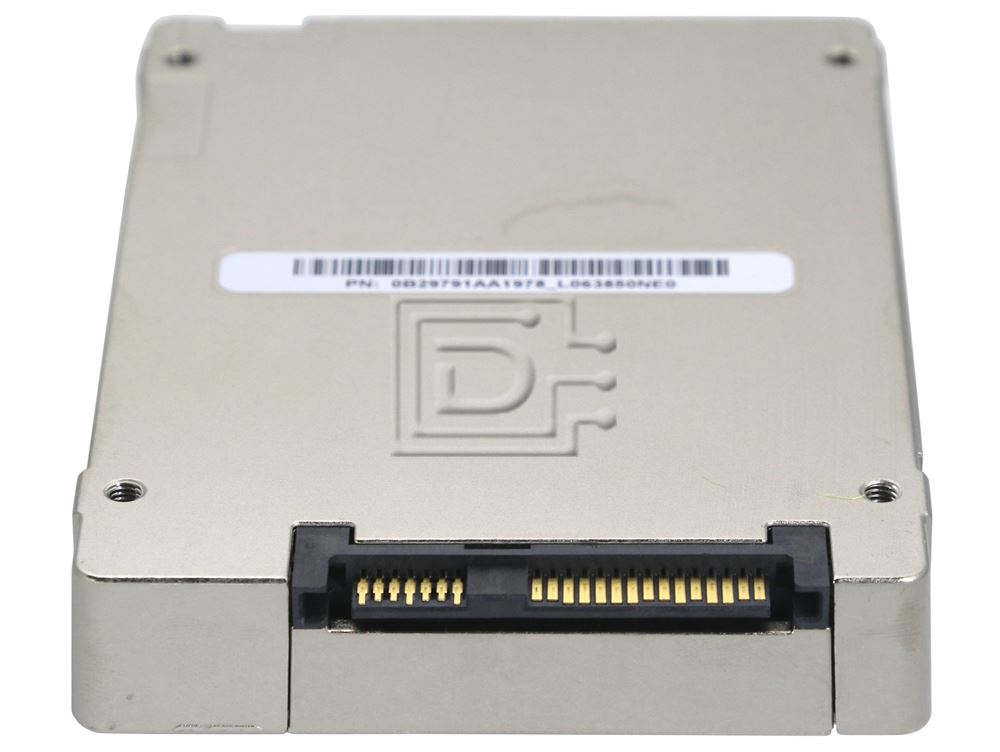

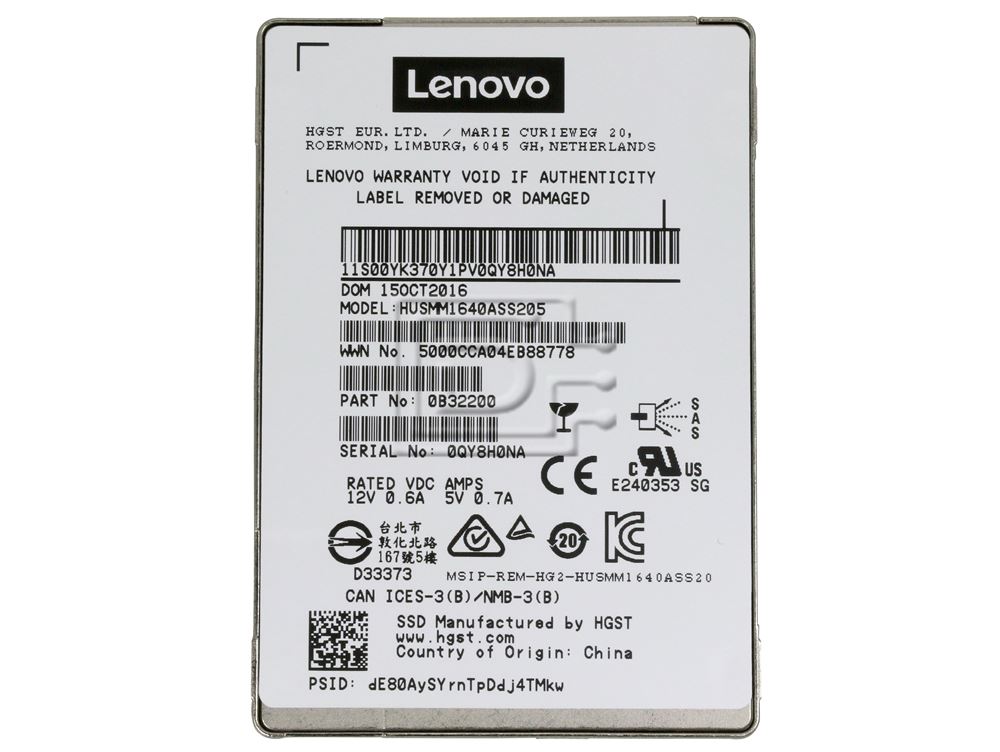

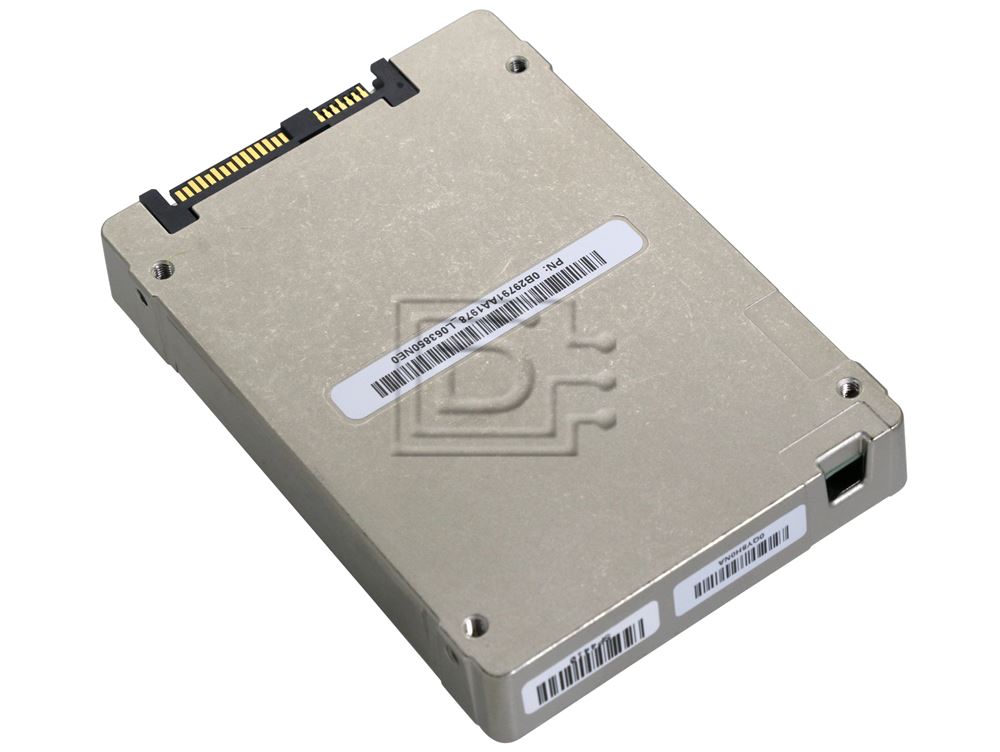

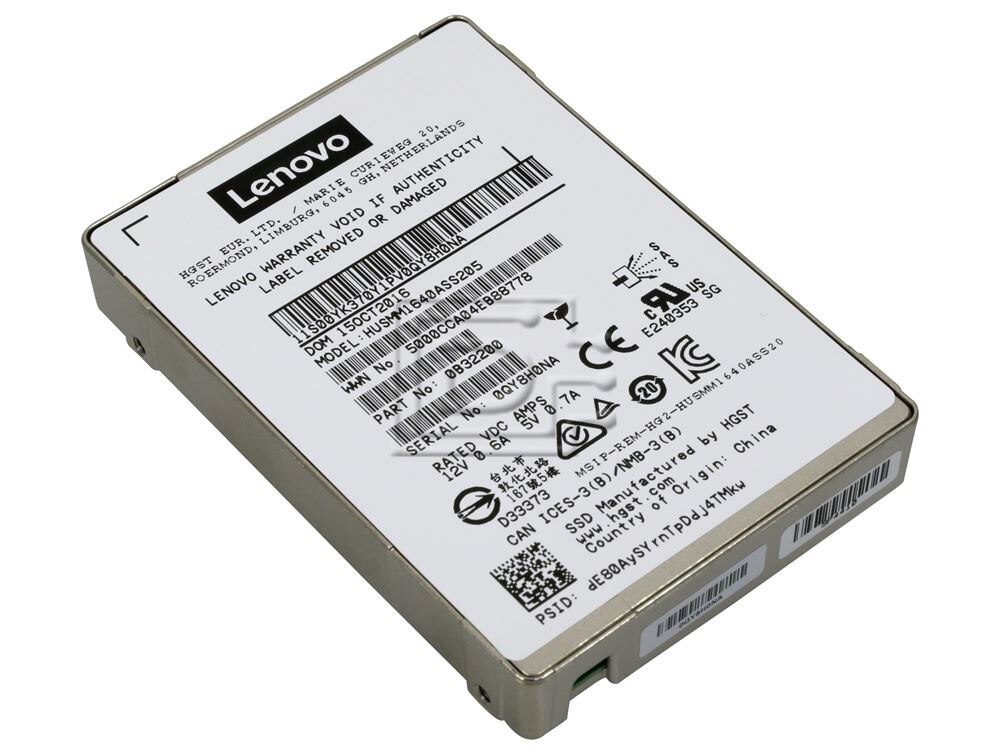

HGST Lenovo HUSMM1640ASS205 0B32186 0B32200 400GB SAS eMLC SAS SSD

(0) No Reviews Yet

Hitachi Part #/MPN: 0B32200

DiscTech Item #: HIT-0B32200-BN-OE-LEN


$389.00
$389.00

Enterprise Grade

Capacity: 400GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 1100/765

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Mixed Use

HGST Hitachi / Lenovo Ultrastar SSD1600MM 0B32186 / 0B32200 / HUSMM1640ASS205 / HUSMM1640ASS200 400GB 2.5" 12Gbps eMLC 10-DWPD Crypto TCG FIPs SAS SSD - Brand New

HGST / Lenovo Ultrastar SSD1600MM 0B32186 / 0B32200 / HUSMM1640ASS205 / HUSMM1640ASS200 400GB 2.5 in 12Gbps Enterprise MLC 10-DWPD Crypto TCG FIPs SAS SSD - Brand New

ALT MPNs: HUSMM1640ASS205

Ultrastar SSD1600MM

HGST Enterprise Storage Experience
HGST leverages decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design, reliability, firmware, customer qualification and system integration to the Ultrastar® SSD1600MM solid-state drive (SSD) family. The synergistic relationship between HGST’s throughput-enhancing SSDs and traditional HDDs provides cost effective, end-to-end enterprise-class storage solutions, delivering reliability, compatibility, capacity, cost and system performance. This combination makes HGST a leading SSD/HDD provider with the experience and technology needed to meet escalating reliability, endurance and performance in the most demanding enterprise environments.

Maximum Performance, Reliability and Endurance
The Ultrastar SSD1600MM delivers high sequential throughput, up to 1100MB/s read and 765MB/s write (12Gb/s SAS). It also delivers up to 130,000 read and 100,000 write IOPS, reaching speeds >100 times faster than HDDs and double the speed of current 6Gb/s SSDs, allowing rapid access to “hot” enterprise data for improved productivity and operational efficiency. The Ultrastar SSD1600MM family offers significant value in terms of IOPS per Watt, while reducing total cost of ownership (TCO) through low power consumption, efficient cooling and reduced space requirements.

The Ultrastar SSD1600MM family combines enterprise-grade MLC NAND Flash memory, advanced endurance management firmware and power loss data management techniques to extend reliability, endurance and sustained performance over the life of the SSD. The Ultrastar SSD1600MM family achieves an extraordinary 0.35% annual failure rate (AFR) or 2.5 million hour meantime-between-failure (MTBF). The 1600GB capacity model endures up to 29.2 Petabytes (PB) of random writes over the life of the drive—the equivalent of writing 16 Terabytes (TB) per day for five years.

For complete end-to-end data protection and reliability, the Ultrastar SSD1600MM family incorporates the T10 Data Integrity Field (DIF) standard, extended error correction code (ECC), Exclusive-OR (XOR) parity to protect against Flash die failure, parity-checked internal data paths without an external write cache, and an exclusive power loss data management feature that does not require supercapacitors. The Ultrastar SSD1600MM family is backed by a five year limited warranty, or the maximum Petabytes (PB) written (based on capacity).

HGST Quality and Service
HGST’s Ultrastar SSD1600MM family extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data. HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a complete portfolio of SSD/HDD solutions to satisfy today’s monumental computing needs.

Highlights

  • MLC NAND Flash for ultra-high performance and endurance
  • Mainstream endurance 10DW/D for 5 years
  • Best IOPS/Watt for reduced TCO
  • 12Gb/s SAS interface for maximum throughput
  • Advanced power loss data management technology
  • Self-encrypting models conform to TCG’s Enterprise specification

Applications / Environments

  • Ultra-high performance tier-0 enterprise storage
  • Enterprise-class servers and high performance computing
  • Space and/or power constrained environments
  • Online Transaction Processing (OLTP)
  • Video pre- and post-production
  • Financial and e-commerce
  • Database analytics


Compatibility:

This drive is compatible with Servers and Arrays that take 2.5" x 15mm Enterprise grade drives including Lenovo System X series.


x3500 M5 (5464)x3550 M5 (5463)x3650 M5 (5462)x3850 X6
x3950 X6 (6241, E7 v4)nx360 M5 (5465, E5-2600 v4)sd350 M5 (5493)x240 M5 (9532)


Ultrastar® SSD1600MM
Part Number0B32200
Model NumberHUSMM1640ASS205
Configuration
InterfaceSAS 12Gb/s
Capacity400GB
Form factor2.5-inches
Flash memory technologyMulti Level Cell (MLC)
Sector size support512, 520, 528, 4K
Performance
Read throughput (max MB/s, sequential 64K)1100
Write throughput (max MB/s, sequential 64K)765
Read IOPS (max IOPS, random 4K)130,000
Write IOPS (max IOPS, random 4k)100,000
Reliability
Error rate (non-recoverable, bits read)1 in 10^17
MTBF(M hours)2.5
Annual failure rate(AFR)0.35%
Availability (hrs/day x days/wk)24x7
Endurance (max PB, random write)3.6
Power
Requirement +5 VDC (+/-5%)
+12 VDC (+/-10%)
Operating (W, typical)9.0 and 11.0
Idle, (W)2.2
Physical size
z-Height (mm)15.0
Dimensions (width x depth, mm)70.1 x 100.6
Weight (max, g)187
Environmental (operating)
Case temperature0° to 70° C
Shock (half-sine wave)1000G(0.5ms)
500G(2ms)
Vibration, random (G RMS)2.16, all axis (5 to 700 Hz)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HUSMM1640ASS205 HUSMM1640ASS200

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
