Hitachi Part #/MPN: 0B31806
DiscTech Item #: HIT-0B31806-BN-OE-SUN
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1.2TB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 72 - 135
Average Seek Time: 3.7 / 4.54
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128MB

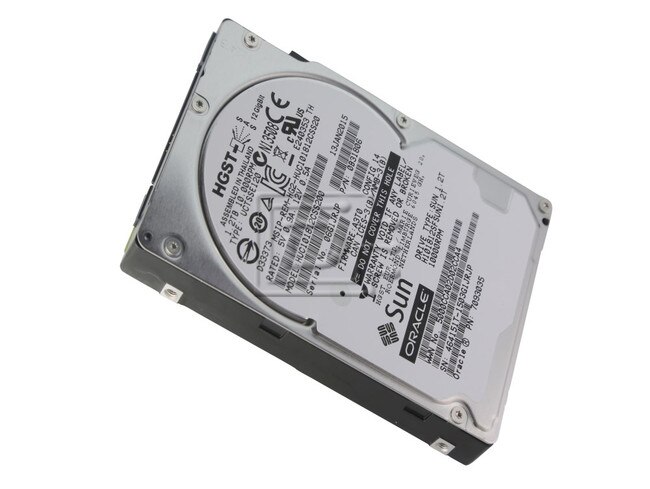

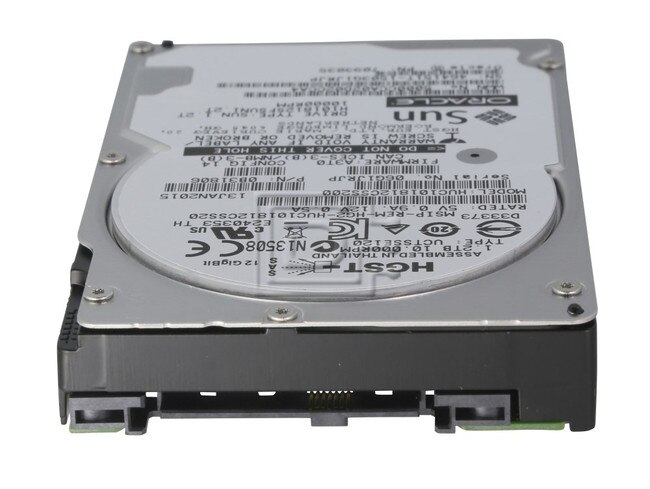

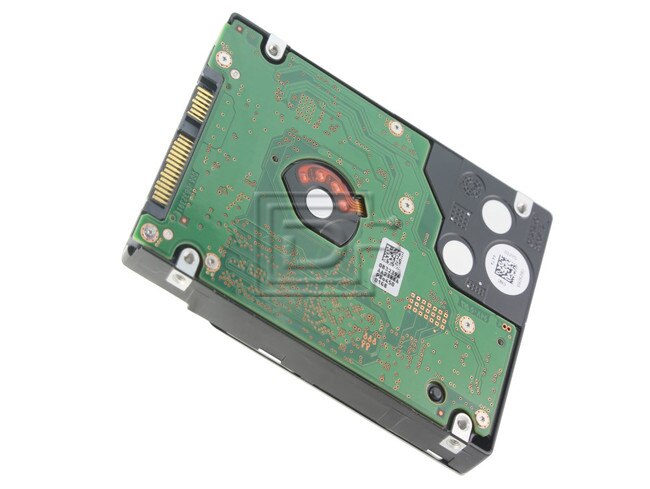

Hitachi Ultrastar C10K1800 0B31806 / HUC101812CSS200 1200GB / 1.2TB 10K 2.5" 12Gbps SFF Serial SCSI / SAS Hard Drive for Sun / Oracle Systems - Brand New
Bare Drive only.
Oracle - Sun Microsystem Enterprise SAS Drive
Advanced Format models deliver up to 1.8TB
Best-in-Class Power Performance
2.5X faster random write than prior generation 10K HDDs
Key Features
- 1.2TB Capacity
- 10,000 RPM
- 12Gb/Sec Serial Attached SCSI Interface
- 2.5" Small Form Factor
Hitachi PN: 0B31806
Hitachi Model: HUC101812CSS200
Oracle PN: 7093035
H101812SFSUN1.2T
Compatibility:
Netra Server X5-2 for Communications, Netra Server X5-2, Netra SPARC T4-1, SPARC T7-1, SPARC T7-2, SPARC T7-4, Oracle Server X5-8, Oracle Server X5-2, Oracle Server X5-2L, Oracle Server X5-4, Oracle Server X5-2 for Communications, Oracle Exalytics In-Memory Machine X5-4, Oracle Exalytics In-Memory Machine T5-8, Private Cloud Appliance X5-2 Compute Nodes, Private Cloud Appliance X5-2 Hardware
Specifications | |
---|---|
Model number | 0B31806 / Sun / Oracle Systems |
Model Name | Ultrastar C10K1800 |
Formatted Capacity | 1200 Gbytes / 1.2TB |
Rotational Speed | 10,000 rpm |
Default Buffer (cache) Size | 128 Mbytes |
Performance | |
External (I/O) Transfer Rate (max) | 1200 MBytes/sec |
Sustained Transfer Rate | 198 - 112 MBytes/sec |
Average Seek Time, Read | 4.6 msec typical |
Average Seek Time, Write | 5.0 msec typical |
Physical | |
Form Factor(width) | 2.5-inch |
Form Factor(height) | .583-inch |
Height | 14.8 mm |
Width | 70.1 mm |
Length | 100.6mm |
Weight | 0.218 kg |
Electrical | |
Power (Typical) | 5.6 / 5.4 / 5.0 |
Environmental | |
Max Operating Shock (2-msec) | 60 Gs |
Max Nonoperating Shock (2-msec) | 300 Gs |
Operating Vibration (max) | .5 Gs |
Nonoperating Vibration (max) | 2.4 Gs |
Operating Temperature (max) | 55 deg C |
Operating Temperature (min) | 5 deg C |
Nonoperating Temperature (max) | 70 deg C |
Nonoperating Temperature (min) | -40 deg C |
Acoustical | |
Idle (Bels) | 3.1 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HUC101812CSS200 7093035 709-3035 H101812SFSUN1.2T
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
