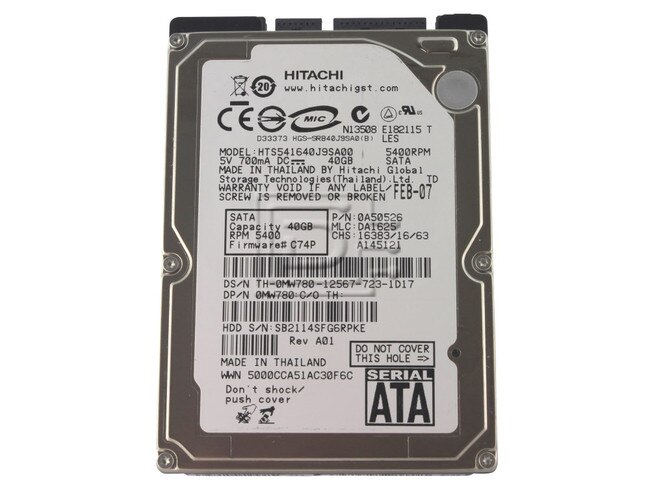

Hitachi TravelStar 5K160 0A50526 40GB SATA Laptop Hard Drive

Hitachi TravelStar 5K160 0A50526 40GB SATA Laptop Hard Drive
Capacity: | 40GB |
Speed: | 5.4K RPM |
Interface Types: | SATA |
Form Factor: | 2.5" x 9mm Fits Most laptops |
Electrical Interface: | SATA 150 - 1.5Gbps |
Description
Hitachi TravelStar 5K160 0A50526 40GB 5.4K 2.5" SATA Laptop Hard Drive - Refurbished OEM
New technology exceeds expectations
Travelstar™ 5K160, Hitachi’s first hard drive to use perpendicular magnetic recording (PMR), delivers superior technology and reliability. With capacities up to 160 GB, industry-leading performance, low-power consumption and excellent shock resistance, Travelstar 5K160 has the key attributes to support the stringent demands of portable computing. Improved electronics design further reduces the power consumption of this 5400 RPM drive, which beats its industry-leading predecessor by 10%; the 5K160 also runs cooler than the competition. Hitachi has also implemented Thermal Fly-height Control (TFC) for improved error rates, and iridium-manganese-chromium (IrMnCr) read heads for improved reliability. Hitachi has done extensive testing to verify Travelstar 5K160‘s best-in-class standing, making it the “Super-pendicular Drive.”
Reliability leadership
With the transition to new PMR technology, Travelstar 5K160 demonstrates reliability that parallels or exceeds 50-year old conventional longitudinal technology. Hitachi has integrated second-generation PMR head and media technology, along with a new read channel and IrMnCr read heads. This successful transition required new materials, complex processes, tools and testing. Hitachi leveraged the depth and breadth of its internal resources to deliver the most reliable PMR mobile product in the industry.
Dell Part Number: MW780 0MW780 HTS541616J9SA00
Compatibility:
This drive is compatible with any computrer that accepts 2.5" SATA hard drives.
Specifications
Specifications | |
---|---|
Model number | 0A50526 |
Model Name | Spinpoint M5S |
Formatted Capacity | 40 Gbytes |
Rotational Speed | 5,400 rpm |
Default Buffer (cache) Size | 8 Mbytes |
Performance | |
External (I/O) Transfer Rate (max) | 1.5 Gbps |
Average Seek Time | 12.0 msec typical |
Physical | |
Height | 9.39 mm |
Width | 100.7 mm |
Length | 69.85 mm |
Weight | 99 g |
Electrical | |
Power (Typical) | 2.1 watts |
Power (Idle) | .60 watts |
Startup Current (3.3 VDC) | .9 amps |
Environmental | |
Max Operating Shock (2-msec) | 325 Gs |
Max Nonoperating Shock (2-msec) | 1000 Gs |
Operating Vibration (max) | 1.0 Gs |
Operating Temperature (max) | 55 deg C |
Operating Temperature (min) | 5 deg C |
Nonoperating Temperature (max) | 70 deg C |
Nonoperating Temperature (min) | -40 deg C |
Acoustical | |
Acoustics, Idle (sound power, typ) | 2.4 Bels |
Reliability | |
Nonrecoverable Read Errors | 1 per 10^14 bits read |
Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MW780 0MW780 HTS541616J9SA00
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
