Hitachi Part #/MPN: 0A28841
DiscTech Item #: HIT-0A28841-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 60GB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 11
Electrical Interface: SATA 150 - 1.50Gbps
On-Board Cache: 8MB

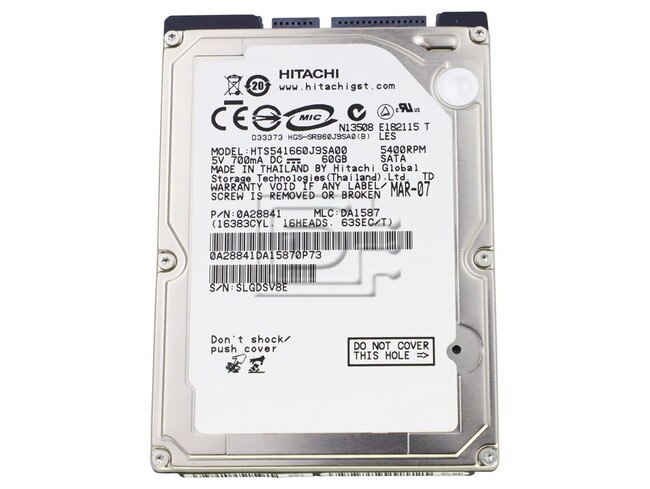

Hitachi Travelstar 5K160 0A28841 / HTS541660J9SA00 60GB 5.4K 2.5" SATA Hard Drive - Brand New
New technology exceeds expectations
Travelstar™ 5K160, Hitachi’s first hard drive to use perpendicular magnetic recording (PMR), delivers superior technology and reliability. With capacities up to 160 GB, industry-leading performance, low-power consumption and excellent shock resistance, Travelstar 5K160 has the key attributes to support the stringent demands of portable computing. Improved electronics design further reduces the power consumption of this 5400 RPM drive, which beats its industry-leading predecessor by 10%; the 5K160 also runs cooler than the competition. Hitachi has also implemented Thermal Fly-height Control (TFC) for improved error rates, and iridium-manganese-chromium (IrMnCr) read heads for improved reliability. Hitachi has done extensive testing to verify Travelstar 5K160‘s best-in-class standing, making it the “Super-pendicular Drive.”
Reliability leadership
With the transition to new PMR technology, Travelstar 5K160 demonstrates reliability that parallels or exceeds 50-year old conventional longitudinal technology. Hitachi has integrated second-generation PMR head and media technology, along with a new read channel and IrMnCr read heads. This successful transition required new materials, complex processes, tools and testing. Hitachi leveraged the depth and breadth of its internal resources to deliver the most reliable PMR mobile product in the industry.
Alt PNs: HTS541660J9SA00
Compatibility:
Fully compatible with new Dell, IBM, HP & Compaq laptops that use 2.5" SATA drives. e.g. Dell D600, D610, D620, D640, D800, D810, D820, D840; HP nc6220, nc6320, nx6325, nc6400, nx7300, nx7400, nc8430, nw8440, nw9440, nx9420 nc2400 and nc4400.
| Specifications | |
|---|---|
| Performance | |
| Physical | |
| Electrical | |
| Model number | 0A28841 / HTS541660J9SA00 |
| Model Name | Travelstar |
| Formatted Capacity | 60 Gbytes |
| Rotational Speed | 7,200 rpm |
| Default Buffer (cache) Size | 8 Mbytes |
| External (I/O) Transfer Rate (max) | 150 MBytes/sec |
| Average Seek Time, Read | 11 msec typical |
| Track-to-Track Seek, Read | 1 msec typical |
| Average Latency | 4.2 msec |
| Form Factor(width) | 2.5-inch |
| Height | 9.5 mm |
| Width | 70 mm |
| Length | 100 mm |
| Weight | 95 g |
| Power (Typical) | 1.8 watts |
| Power (Idle) | .80 watts |
| Startup | 5.0 watts |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HTS541660J9SA00
