Hitachi Part #/MPN: 0B24494
DiscTech Item #: HIT-0B24494-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 119 - 198
Average Seek Time: 3.4
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

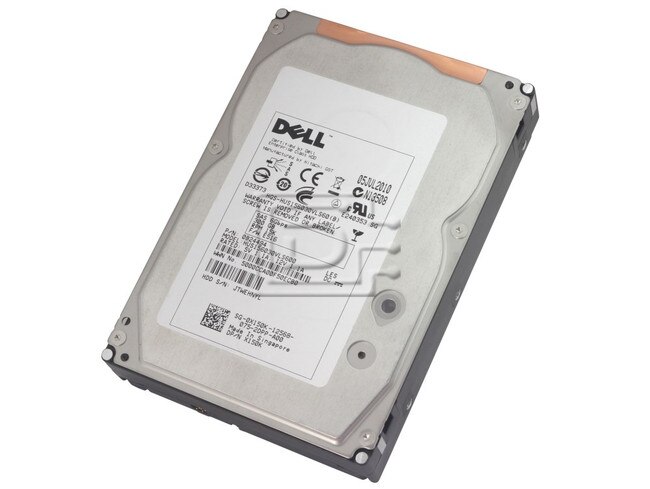

Hitachi Ultrastar 15K600 0B24494 / 0X150K / X150K HUS156030VLS600 300GB 15K 6Gbps 64MB Cache Serial Attached SCSI Hard Drive - Brand New OEM
The Ultrastar 15K600 combines ultimate performance with high capacity in a single drive, storing up to 600GB of data while spinning at 15,000 RPM. The 64MB cache buffer is the largest in the industry in its class. The 6Gb/s Serial Attached SCSI (SAS) and 4Gb/s Fibre Channel Arbitrated Loop (FCAL) interfaces support the reliability required in the most demanding enterprise computing environments like on-line transaction processing, intensive data analysis, multi-user applications and data warehousing.
Highlights
• 600GB capacity will store most everything
• Spinning at 15,000 RPM for mission-critical performance
• FCAL & SAS interfaces for reliable data throughput
• Advanced Power Management optimizes power consumption
• 64MB cache buffer – largest in the industry
• Self-encrypting models conform to TCG’s Enterprise specification
Applications / Environments
• Business & online transaction processing
• Internet, file sharing and email
• Decision support & RAID
• NAS, SAN and enterprise-class servers
• High performance computing and other applications requiring 24x7
availability
ALT PN: HUS156030VLS600 / DPN:0X150K X150K
Compatibility:
Interface | 6Gb/s SAS / 4Gb/s FCAL |
Capacity (GB) | 300 |
Data Heads (physical) | 4 |
PERFORMANCE | |
Data buffer (MB) | 64 |
Rotational Speed (RPM) | 15000 |
Latency Average (ms) | 2 |
Interface transfer rate (MB/sec, max) | 600 / 400 |
Sustained transfer rate (MB/sec, typ.) | 198 to 119 |
Seek Time (read, ms, typical) | 3.4 |
Reliability | |
Error Rate (non-recoverable, bits read) | 1 in 10^16 |
MTBF (M hours) | 1.6 |
Availability (hrs/day x days/wk) | 24x7 |
Acoustics | |
Idle (Bels) | 3.7 |
Power | |
Requirement | +5 VDC (+/5%) +12 VDC (+/5%) |
Operating (W, typical) | 13.2 |
Unload idle (W) | 7.7 |
Physical size | |
Z-height (mm) | 25.8 |
Dimensions (width x depth, mm) | 101.6 x 146.2 |
Weight (g, max) | 750 |
Environmental (operating) | |
Ambient temperature | 5º to 55ºC |
Shock (half-sine wave) | 30G (2ms) |
Vibration | 1.5Gm all axes |
Environmental (non-operating) | |
Ambient temperature | -40º to 70ºC |
Shock (half-sine wave) | 250G (2ms) |
Vibration | 2.0G, all axes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUS156030VLS600 X150K 0X150K
