Hitachi Ultrastar 0B26043 600GB Enterprise Plus SAS HDD
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 600GB |
| Speed: | 10K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 64MB |
Description

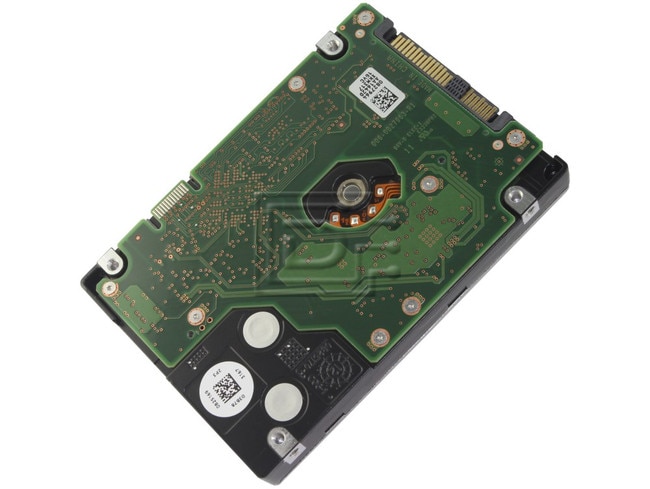

Hitachi Ultrastar 0B26043 / HUC109060CSS600 600GB 10000 RPM 6Gbps 2.5inch Small Form Factor Dell Enterprise Plus SAS / Serial Attached SCSI Hard Disk Drive - Brand New OEM
Hitachi PN: 0B26043
Hitachi Model Number: HUC109060CSS600
Dell Enterprise Plus PNs : TCGGM, 0TCGGM
Ultrastar™ C10K900 is a 2.5-inch 10,000 RPM hard drive that leads the industry with 18% faster sequential and up to 17% random performance than the nearest competitor. The high performance SAS 6Gb/s interface delivers data reliability, availability and scalability and is the only small form factor SAS drive in the industry to pack a 64MB cache buffer for optimized read/write response time.
Compatibility
This drive is compatible with any server that accepts 2.5" SFF SAS hard drives.
Specifications
| Specifications | |
|---|---|
| Model Number | HUC109060CSS600 |
| Configuration | |
| Interface | SAS 6Gb/s |
| Capacity (GB) | 600 |
| Recording zones | 40 |
| Data heads (physical) | 4 |
| Data disks | 2 |
| Max. areal density (Gbits/sq. in.) | 494 |
| Performance | |
| Data buffer (MB) | 64 |
| Rotational speed (RPM) | 10,000 |
| Latency average (ms) | <3.0 |
| Media transfer rate (Mbits/s, max) | 2105 |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate (MB/s, typical) | 198 - 117 |
| Seek time (read, ms, typical) | 3.8 / 4.2 |
| Reliability | |
| Error rate (non-recoverable, bits read) | 1 in 1016 |
| MTBF (M hours) | 2.0 |
| Availability (hrs/day x days/wk) | 24x7 |
| Acoustics | |
| Idle (Bels) | 2.9 |
| Power | |
| Requirement | +5 VDC (+/-5%), +12 VDC (+/-5%) |
| Operating, (W, typical) | 5.8 |
| Low power idle (W) | 3.0 |
| Power consump. efficiency index (W/GB) | 0.0058 |
| Physical size | |
| z-height (mm) | 14.8 |
| Dimensions (width x depth, mm) | 70.1 x 100.6 |
| Weight (g, max) | 204 |
| Environmental (operating) | |
| Ambient temperature | 5o to 55o C |
| Shock (half-sine wave 2ms, G) | 60 |
| Environmental (non-operating) | |
| Ambient temperature | -40o to 70o C |
| Shock (half-sine wave, 2ms, G) | >300 |
| Vibration, random (G RMS, 5 to 500 Hz) | 1.5, all axes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HUC109060CSS600 TCGGM 0TCGGM C10K900
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
