Hitachi Part #/MPN: 0F23693
DiscTech Item #: HIT-0F23693-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 8TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 205
Average Seek Time: 8.5 / 9.0
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128MB

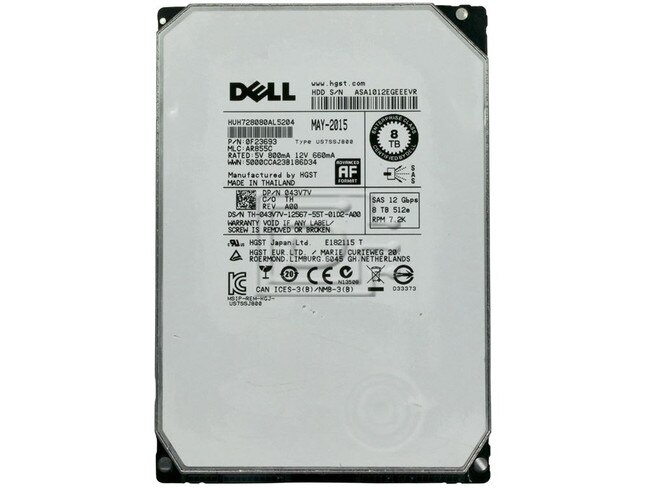

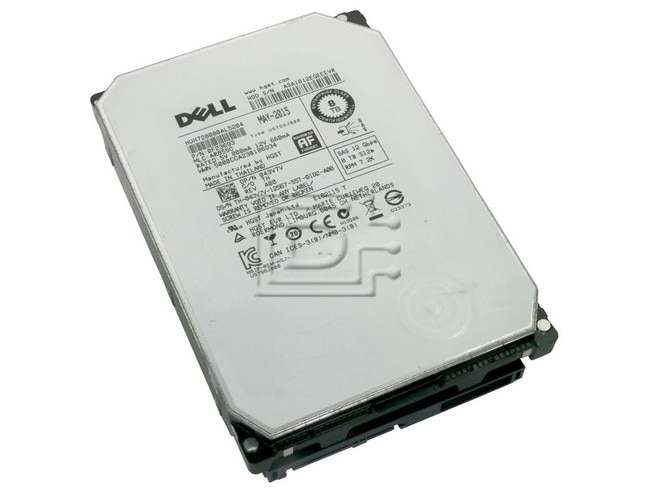

Hitachi Ultrastar He8 0F23693 / HUH728080AL5204 8TB 12Gbps 7.2K Enterprise SAS Hard Drive - Refurbished OEM
Hitachi Ultrastar He8 0F23693 8TB / 8000GB 12.0Gbps 7,200 RPM Enterprise SAS Hard Drive - Refurbished OEM
Alt MPNs: HUH728080AL5204, 43V7V, 043V7V
Overview
Count on the drives trusted by world's major cloud service providers and massive 24/7/365 online transaction processing (OLTP) environments. With industry-leading capacity, reliability and warranty, the Ultrastar® He8 lays the foundation for a worry-free data center. Innovative HelioSeal® technology allows HGST to put more platters in the same size enclosure; increasing storage capacity. The Ultrastar He8 also requires less power to operate and cool than air-filled drives. For quality, reliability at a low TCO, trust HGST to deliver more value to your data center.
Highlights
- Industry’s leading 8TB capacity in a standard 3.5-inch form factor
- Industry’s best Idle and Active power efficiency (Watts/TB)
- Reliable, field-proven, 2nd generation HelioSeal® process and 7Stac™ design
- Compared to 6TB air drives
- 33% more capacity
- 23% lower idle power
- 44% more power efficient (Watts/TB)
- SATA 6Gb/s and SAS 12Gb/s
- 12Gb/s SAS compatible with next gen data centers; backwards compatible with 6Gb/s SAS
- 2.5M hours MTBF rating
- Instant Secure Erase (ISE) & Self-Encrypting Drive (SED) options
- Advanced format 4Kn and 512e models
Compatibility:
This drive is compatible with any server that accepts 3.5"x1" (LFF) SAS drives.
| Specifications | |
|---|---|
| Model # / Part # | HUH728080AL5204 / 0F23693 |
| Interface | SAS 12Gb/s |
| Capacity (GB) | 8TB |
| Sector Size (Variable, Byes/sector) | 512e: 512, 520, 528 |
| Max Areal Density (Gbits/sq. in.) | 664 (8TB) |
| Form Factor | 3.5-inch HDD |
| Performance | |
| Data Buffer (MB) | 128 |
| Rotational Speed (RPM) | 7200 |
| Latency Average (ms) | 4.16 |
| Interface Transfer Rate (MB/sec, max) | 1200 |
| Sustained Transfer Rate (MB/sec, typ.) | 205MB/s |
| Seek Time (read, ms, typical) | 8.5 (Read), 9.0 (Write) |
| Reliability | |
| Error Rate (non-recoverable, bits read) | 1 in 10^15 |
| MTBF (M hours) | 2.5 |
| Annual Failure Rate (AFR) | 0.35% |
| Load/Unload Cycles | 600,000 |
| Availability (hrs/day x days/wk) | 24x7 |
| Power | |
| Requirement | +5 VDC, +12 VDC |
| Operating (W, typical) | 9.1 |
| Idle (W) | 5.7 |
| Power Consump. Efficiency Index (W/GB) | 0.71W/TB / 0.00071W/GB (8TB) |
| Physical Size | |
| Z-Height (mm) | 26.1 |
| Dimensions (width x depth, mm) | 101.6 (+/-0.25) x 147 |
| Weight (g, max) | 650 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HUH728080AL5204 43V7V 043V7V
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
